Low-voltage landscape security lighting (12V systems) can be installed by trained landscape lighting specialists or experienced DIYers. Line-voltage systems (120V) typically require licensed electricians due to safety and code requirements, though local rules vary.
Improper installation leads to inadequate illumination coverage, safety hazards including electrical shock and fire risk, premature fixture failure, voided warranties, and code violations. In landscape applications, poor installation also creates awkward aesthetic integration that detracts from property appearance.
This guide covers proper installation of both low-voltage landscape security/flood lighting and standard line-voltage systems, following best-practice standards for safety, performance, and design integration.
Key Takeaways
- Low-voltage (12V) security lights need a transformer and run safer and more efficiently than 120V house-mounted systems
- A professional designer places fixtures for real security coverage without sacrificing curb appeal
- Prep with a site assessment, power plan, fixture choices, and a check of local electrical codes
- Validate the job with voltage tests, coverage checks, sensor calibration, and weatherproof connections
- Budget $250–$700 per fixture installed; low-voltage often delivers better long-term value

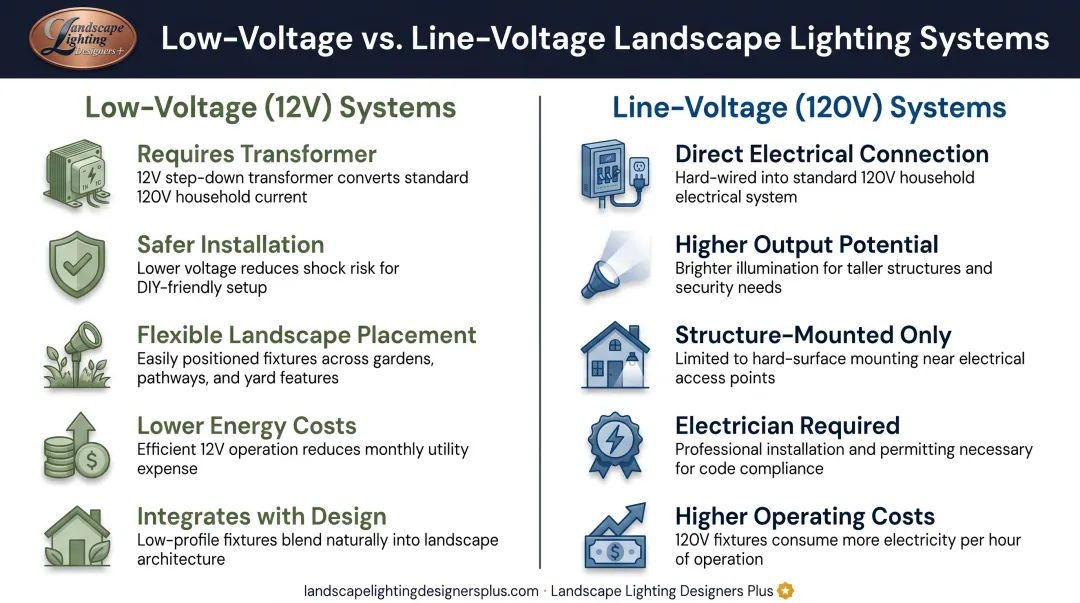

Understanding Security and Flood Light Installation Options
Security and flood lights fall into two main categories: low-voltage landscape systems (12V) that integrate with outdoor design, and line-voltage systems (120V) that mount directly to structures.
Low-Voltage Landscape Security Lighting
12V systems use transformers to step down household current. For most residential properties, they are the more flexible security option:
- Reduced shock hazard compared with line-voltage fixtures
- Placement throughout landscaping without relying on house-mounted boxes
- Architectural and landscape accent lighting that also supports security
- LED energy use typically 80-90% lower than comparable halogen fixtures
Fixtures can sit along pathways, garden beds, and property edges, building even ambient coverage instead of harsh, isolated pools of light. That balance is why design-focused residential work usually centers on low-voltage systems.
Line-Voltage Flood Light Systems
When you need raw output tied to the house itself, 120V fixtures connect to the home electrical system at eaves, garage walls, or exterior junction boxes. Many models mount around 8-12 feet high and require a grounded, wet-location box.
Line-voltage tradeoffs:
- Higher intensity potential (often about 1,500 to 4,100 lumens)
- Placement limited to structure access and existing electrical boxes
- Electrician installation typically required
- Higher ongoing energy cost than equivalent low-voltage LED systems
These fixtures can suit blank walls or wide drive approaches. They are less adaptable when you want light woven through planting beds, paths, and yard edges.
Fixture Types and Applications
Motion-sensor fixtures:
- Strong fit for security and energy savings
- Sudden illumination adds a deterrent effect
- Best for side yards, back gates, and other low-traffic zones
Always-on flood lights:
- Continuous coverage with no activation delay
- Better for main entries and high-traffic areas
- Use more energy than sensor-based setups
Solar-powered options:
- No wiring required
- Output depends on sun exposure and weather
- Usually lower lumen levels than wired systems
Landscape-integrated security lighting:
- Pairs steady ambient light with motion in priority zones
- Keeps paths and entries readable without a single harsh flood
Coverage Requirements and Output
Match output to the job: many security points work well around 700-1,300 lumens, while wide-area floods may need 1,500-3,000+ lumens. Treat those figures as manufacturer guidance, not hard rules—finish color, surrounding light, and aim all change what you see on the ground.
Beam angle and mounting height shape real coverage. A motion sensor’s 180-270 degree detection field is not the same as the optical beam that actually lights the surface, so aim and height matter as much as the lumen rating on the box.
Weatherproofing Standards
IP ratings explained:
- IP65: Dust-tight and water-jet protected (minimum for most outdoor security lights)
- IP67: Temporary-immersion protected for exposed ground-level applications
- IP68: Continuous-immersion protected for in-ground or water-feature installations
In the US, UL wet-location markings are the directly relevant certification. Only fixtures marked "SUITABLE FOR WET LOCATIONS" are intended where liquid may drip, splash, or flow onto equipment.
Durability materials include:
- Powder-coated aluminum for corrosion resistance
- UV-resistant polycarbonate lenses
- Stainless steel hardware for coastal or high-moisture environments

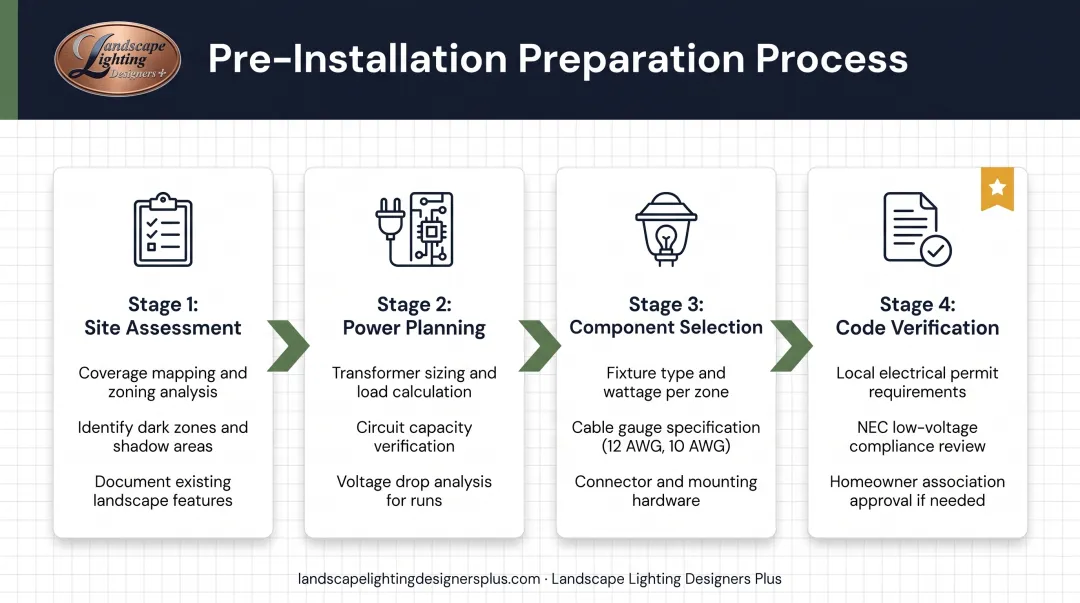

Installation Prerequisites and Safety Considerations
A solid install starts with site prep, the right electrical setup, and a clear read on local code—before any fixture goes up.
Site Assessment and System Compatibility
Walk the property first. Note coverage gaps, dark zones, and how far each fixture sits from power.
Pre-installation checklist:
- Map coverage areas and remaining dark zones
- Confirm circuit capacity and transformer sizing for low-voltage loads
- Measure runs from power sources to each fixture location
- Verify mounting surfaces (structure for house-mounted lights; soil stability for landscape fixtures)
Low-voltage systems need:
- A transformer rated for total fixture wattage (keep load above one-third; never exceed max capacity)
- Cable gauge matched to distance and load
- Compatible motion sensors and smart controls
- Transformer within 8–10 feet of a GFCI receptacle (confirm manufacturer limits), 12+ inches above grade, and 10+ feet from pools or ponds
- Weatherproof, ventilated placement with easy access to timers, photocells, and breakers
Line-voltage systems need:
- A dedicated circuit when load exceeds existing capacity
- GFCI protection where local code requires it
- Grounded, wet-location junction boxes
All components should carry UL or ETL safety certifications.
Safety, Codes, and Permits
The 2023 NEC sets rules for outdoor electrical work, but local adoption still varies. Confirm requirements with your building department before you dig or wire.
Code points that most often apply:
- GFCI: Usually required for outdoor receptacles; lighting outlets may be excepted in some cases
- Low-voltage burial: NEC Table 300.5 calls for 6 inches minimum on qualifying 30V-or-less landscape circuits with identified cable
- Line-voltage burial: Depends on method and location—many 120V, GFCI-protected, 20A-or-less branch circuits need about 12 inches
- Weatherproof connections: Junction boxes and splices must meet wet-location rules
- Grounding: Required for metal line-voltage fixtures
Permit rules differ widely. Some towns require permits for new circuits or work above a wattage threshold; others exempt low-voltage landscape systems entirely.
Before you start:
- Check with the local building department
- Confirm whether owner-performed work is allowed
- Learn inspection steps and timing
- Gather any required documentation
When Not to Proceed
Hold the install until these are resolved:
- Power supply or circuit capacity is inadequate
- Mounting surfaces are unsuitable or ground is unstable
- Required permits are still outstanding
- Weather is unsafe (wet conditions for electrical work, frozen ground for landscape runs)
Step-by-Step Installation Process for Low-Voltage Landscape Security Lights
Low-voltage landscape security lighting follows a clear sequence: transformer installation, cable routing and burial, fixture placement and connection, then full-system testing and adjustment. Skipping depth, weatherproofing, or after-dark aiming is what usually causes failures within the first season.
Transformer Installation and Power Connection
- Mount the transformer securely near a GFCI outlet using weatherproof hardware
- Connect power exactly as shown in the manufacturer wiring diagram
- Add a timer or photocell for dusk-to-dawn or scheduled operation
- Confirm the transformer powers on before you pull any cable

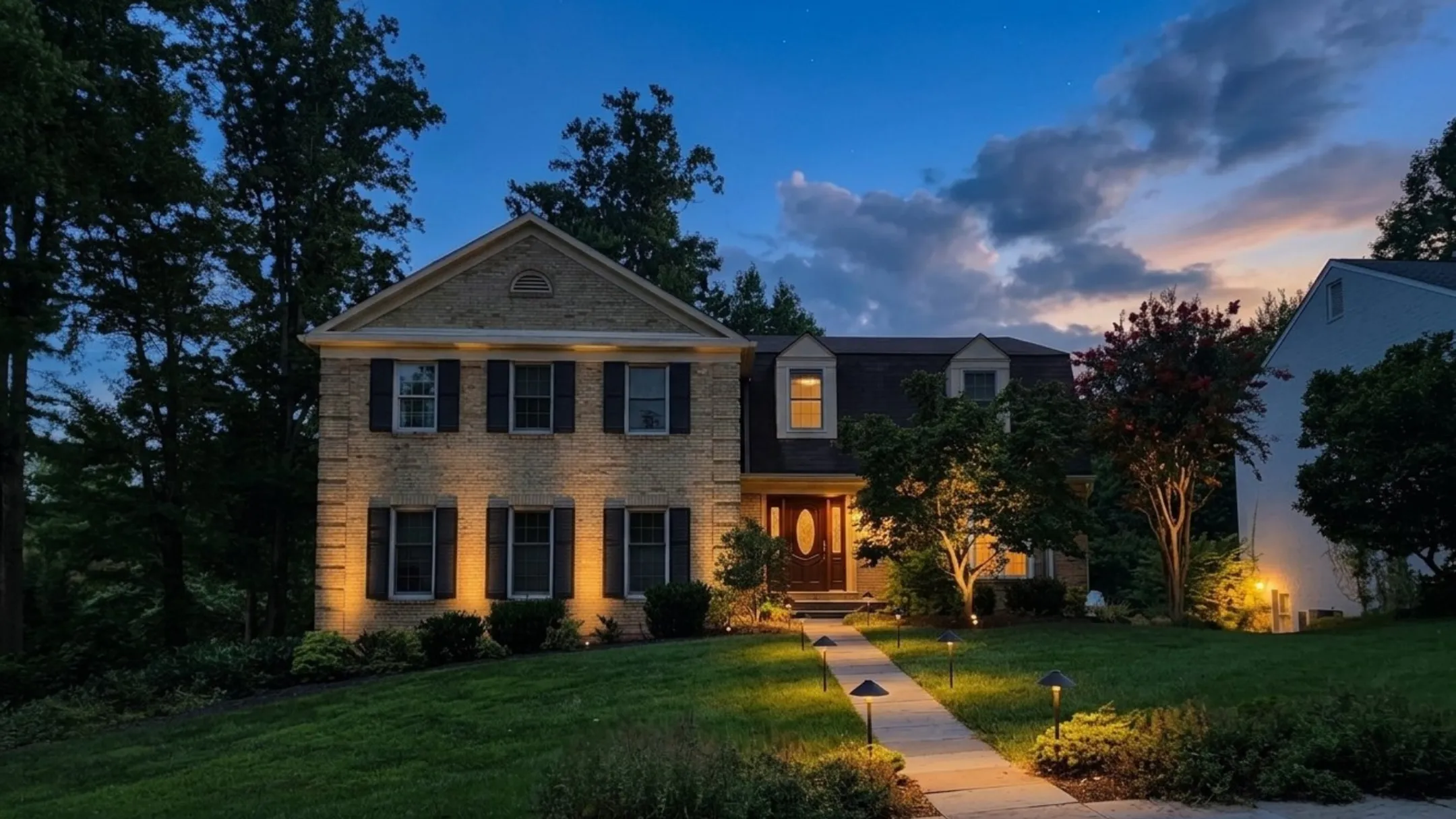

Cable Routing and Burial Process
Cable selection and preparation:
- Use only direct-burial rated low-voltage cable (not standard lamp cord)
- Select appropriate gauge based on run length and load (12 AWG, 10 AWG, or 8 AWG)
- Calculate voltage drop for each run before installation
Installation steps:
- Lay cable along planned fixture locations before burying anything
- Bury at least 6 inches deep (8–10 inches preferred) so edgers and aerators cannot nick it
- Leave a service loop at each fixture for future aim or replacement work
- Mark finished routes so later landscaping does not cut the line
Southwire's landscape cable is sunlight-resistant, direct-burial rated, and specifically designed for outdoor low-voltage applications.
Fixture Positioning, Mounting, and Connection
Strategic placement for security:
- Position fixtures to achieve desired coverage patterns
- Aim to eliminate dark zones near entry points and along property perimeter
- Mount at appropriate heights (typically path lights 18-24 inches, accent lights vary by application)
- Angle downward 20-30 degrees to minimize glare and light trespass
Physical installation:
- Secure each fixture with the right stake or mounting hardware so it stays put
- Make weatherproof connections with silicone-filled wire nuts or the manufacturer’s connectors
- Level and aim every fixture before you close up the trench
- Power-test each fixture individually before burying the remaining cable
System Testing and Final Adjustment
- Power the full run and walk the property after dark
- Look for dark zones at entries, paths, and along the perimeter
- Re-aim or shift fixtures to cut glare and light trespass onto neighbors
- Confirm the timer or photocell matches the schedule you want for security coverage
A fixture that lights up in daylight is only half-tested. Security performance is judged on the whole property at night, after final aim and control settings are locked in.
The full scope of our landscape lighting services covers design, installation, and ongoing maintenance.
Post-Installation Validation and Testing
After install, confirm every fixture, connection, and control works as designed—before you rely on the system for nighttime security.
Visual and Structural Inspection
- Connections are weatherproof and secure
- Fixtures are aimed, level, and stable
- Cable burial depth is adequate with no exposed wiring
- Transformer is securely mounted with proper ventilation
- Components match manufacturer specifications
Functional Testing Requirements
- Measure voltage at each fixture—Kichler calls for more than 10V at every fixture (9–15V operating range); FX targets 10.5–11.5V at the lamp with no more than 1V drop from first to last fixture
- Calibrate motion sensors for distance and angle using manufacturer test mode
- Confirm timers and photocells switch the system on and off as set
- Test each fixture for full, steady output
- Verify smart-home integration when those controls are part of the design
Indicators of Correct vs. Incorrect Installation
Proper installation typically shows:
- Even illumination across all fixtures
- Full coverage of security zones without dark spots
- Fixtures that stay put with no shift or settling
- No visible wiring or exposed connections
- Reliable operation through timers, photocells, or sensors
- Voltage readings inside manufacturer specs
Watch for these red flags:
- Flickering lights (voltage drop or loose connections)
- Uneven brightness (undersized transformer or weak splices)
- Fixtures that tilt or settle after install
- Early bulb or driver failure
- Motion sensors that miss movement or false-trigger constantly

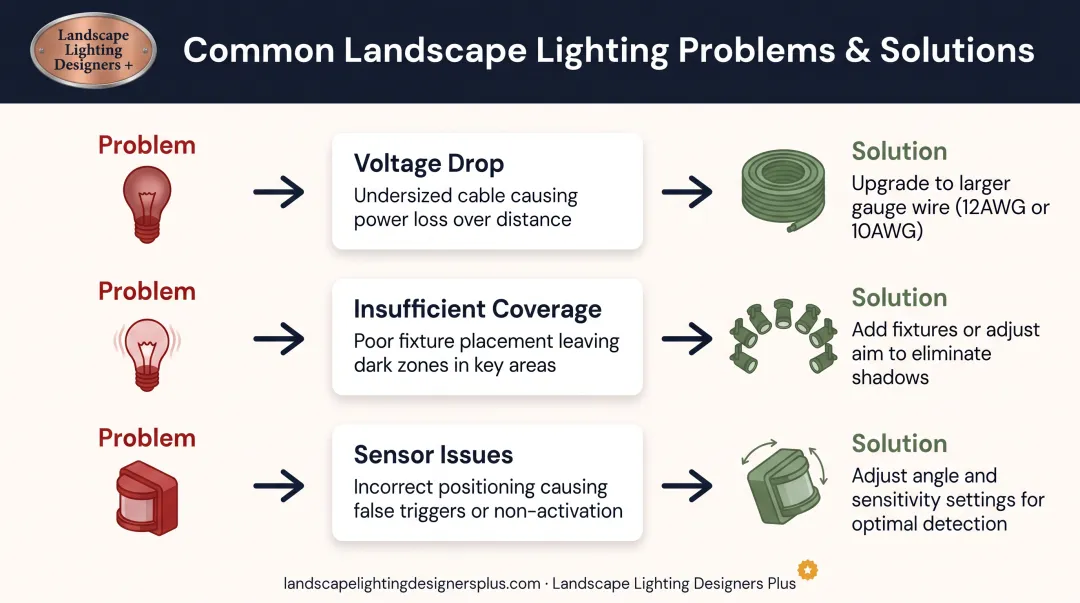

Common Installation Problems and Solutions
Dark spots, dim fixtures, and false sensor triggers top the list of post-install complaints. Most stem from placement, cable sizing, or sensor setup and respond to targeted fixes.
Problem 1: Insufficient Coverage or Dark Spots
Likely causes:
- Poor fixture placement during initial design
- Incorrect beam angle selection for area size
- Inadequate lumen output for security application
Solutions:
- Conduct nighttime site assessment to map coverage gaps
- Add supplementary fixtures in dark zones
- Adjust fixture aim angles to redirect illumination
- Upgrade to higher-lumen fixtures if significantly under-powered
Problem 2: Voltage Drop Causing Dim or Flickering Lights
Likely causes:
- Undersized cable for distance (excessive resistance)
- Cable runs exceeding recommended maximum length
- Transformer under-capacity for connected load
Solutions:
- Install larger gauge cable (upgrade from 12 AWG to 10 AWG or 8 AWG for long runs)
- Split system into multiple transformer zones, reducing cable length per run
- Upgrade to higher-capacity transformer if total load exceeds 80% of current rating
- Group fixtures by distance zones and center-load runs
FX Luminaire provides cable-sizing guidelines showing, for example, that 12 AWG cable can handle 160W load at 0-40 feet but only 60W at 120-160 feet.
Problem 3: Motion Sensors False-Triggering or Failing to Activate
Likely causes:
- Incorrect sensor positioning or sensitivity settings
- Sensors facing heat sources (HVAC vents, dryer exhaust) or reflective surfaces
- Environmental interference from wind-blown vegetation or small animals
Solutions:
- Adjust sensor angle away from heat sources and toward target detection zone
- Reduce sensitivity setting while testing at required detection distance
- Relocate sensors away from moving vegetation
- Add sensor shields to narrow detection field
- Use Test mode after warm-up period before treating sensor as defective
When basic adjustments do not restore full performance, a low-voltage lighting specialist can test load, voltage drop, and sensor coverage on site.

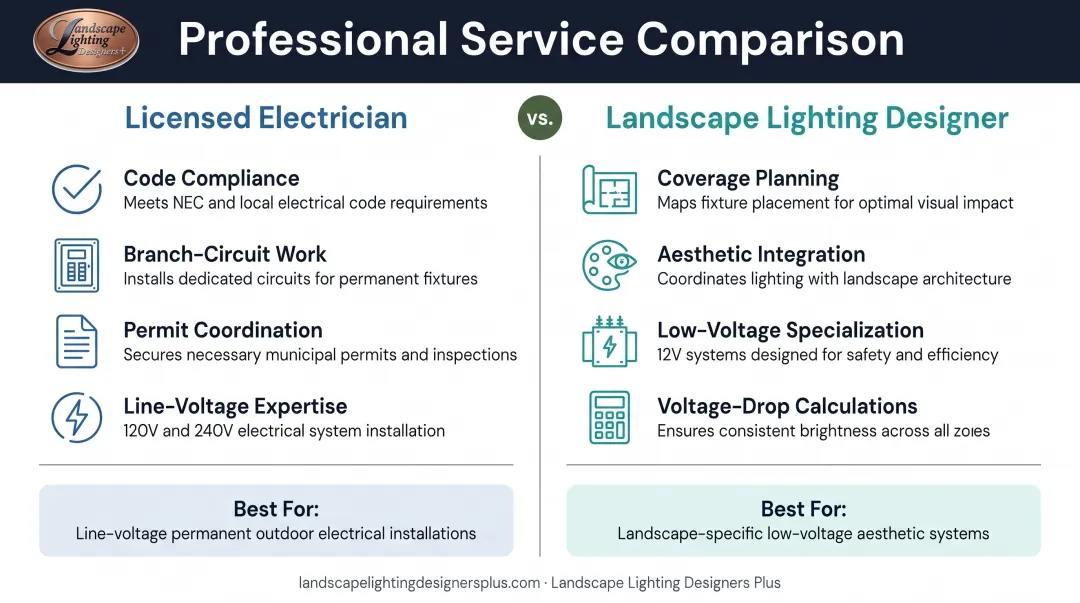

Professional Installation vs. DIY Considerations
Whether you hire a pro or install yourself depends on system voltage, project complexity, and the property itself.
When Professional Installation is Essential
Line-voltage systems (120V):
- Legally require licensed electricians in most jurisdictions
- Involve branch-circuit wiring and panel connections
- Carry significant safety risks if improperly installed
Complex low-voltage systems:
- Benefit from landscape lighting designers who ensure proper coverage and aesthetic integration
- Require expertise in voltage-drop calculations and transformer sizing
- Demand design skills to balance security needs with property aesthetics
Historic or architecturally distinctive properties:
- Need designers experienced with preservation requirements
- Require low-profile fixtures and concealed wiring techniques
- Benefit from careful integration with existing landscape and architecture
Landscape Lighting Designers Plus, for example, specializes in low-voltage landscape security systems throughout the DC metro area. Custom design work focuses on solid security coverage without washing out the property's look.
Craig Collins personally designs every project—transformer sizing, voltage planning, and fixture placement—so dark zones are closed off while the home's character stays intact.
Electrician vs. Landscape Lighting Designer
Electricians provide:
- Safe electrical connections and code compliance
- Branch-circuit installation and panel work
- Permit procurement and inspection coordination
- Expertise with line-voltage systems
Landscape lighting designers offer:
- Comprehensive coverage planning for security and aesthetics
- Fixture selection for functional and design goals
- Integration with landscape and architecture
- Specialized experience with low-voltage systems
- Voltage-drop calculations and cable-sizing expertise
Many electricians have limited experience with landscape-specific low-voltage systems, while landscape lighting designers focus exclusively on this specialty.
Realistic DIY Scenarios and Limitations
Appropriate for experienced DIYers:
- Low-voltage landscape security light installation with proper planning
- Solar-powered fixtures requiring no electrical connections
- Small projects with straightforward layouts
Exceeds typical DIY capabilities:
- Complex systems requiring multiple zones
- Precise coverage planning for comprehensive security
- Integration with existing landscape design
- Voltage-drop calculations across multiple runs
- Transformer selection and circuit planning
According to Angi, landscape lighting projects average $3,500, with most falling between $2,000–$6,000. Per-fixture costs range from $100–$500 including materials and labor.
Browsing finished work is the quickest way to narrow a direction; our project gallery has installations from across Bethesda, Potomac, and Chevy Chase.
Frequently Asked Questions
How much would an electrician charge to install a flood light?
Electricians typically charge $50–$100 per hour, often with a $150 first-hour minimum. Fixtures run about $75–$250, and a basic motion floodlight averages around $425 installed. Straightforward jobs usually total $250–$600 per fixture; new wiring or circuits can add $100–$300 or more.
Do I need an electrician to install a flood light?
Line-voltage (120V) house-mounted flood lights usually need a licensed electrician for safety and code compliance. Low-voltage (12V) landscape security lights can often be installed by a landscape lighting specialist or an experienced DIYer. Always confirm local permit rules before you start.
What is the difference between low-voltage and high-voltage security lighting?
Low-voltage systems run at 12V through a transformer. They are safer to work with, easier to place around landscaping, and use far less energy with LEDs. Line-voltage (120V) fixtures can be brighter but are mostly limited to structure mounts and typically require an electrician.
Where should security flood lights be positioned for optimal coverage?
Mount house fixtures about 8–12 feet high and aim them downward at roughly 20–30 degrees to cut glare and light trespass. Cover entry points and the property perimeter, overlapping beams so dark zones disappear. Low-voltage landscape lights work well along pathways, side yards, garage approaches, and boundaries.
Should I choose motion-sensor or always-on security flood lights?
Motion sensors save energy and startle intruders, so they suit side yards and back gates. Always-on lights give constant visibility at main entries and high-traffic spots. Many homes combine both: steady ambient light overall, with motion zones where activity is less frequent.
Do I need a permit to install outdoor security lighting?
Rules vary by city and county. Many areas require permits for new circuits and line-voltage work, while low-voltage landscape lighting is often exempt. Confirm with your local building department before starting so you avoid code issues or fines.
Conclusion
How well you install security lighting decides how well it works, how long it lasts, and how safe the property feels at night. DIY or pro, the same fundamentals matter:
- Assess the site for dark zones, glare, and approach paths
- Choose fixtures for coverage needs and how they look on the home
- Follow electrical code and use proper wiring practices
- Validate coverage, controls, and aiming after install
A landscape lighting designer brings more than basic electrical work. They plan coverage that supports security and still flatters the property. Low-voltage systems especially benefit from someone who can size the transformer, manage voltage drop, and place fixtures so you eliminate dark zones without a harsh, over-lit look.
If you want that balance on a DC-metro home, Landscape Lighting Designers Plus designs and installs low-voltage landscape and security lighting with an owner-led plan—start with a complimentary design consultation.
