How to Install Recessed Lighting

Homeowners searching for "recessed lighting installation" often envision standard ceiling fixtures, but outdoor recessed lighting spans two distinct categories: 120V soffit-mounted fixtures and 12V landscape well lights. These systems differ fundamentally in installation complexity, safety protocols, and required expertise. High-voltage ceiling and soffit work involves household electrical circuits, circuit breakers, and strict building codes—mistakes create fire hazards and shock risks. Low-voltage landscape recessed lights operate on safer 12V transformers but still demand proper planning, transformer sizing, and waterproofing to avoid premature failure.

This guide clarifies what homeowners need to know about both systems, when DIY installation is appropriate versus when licensed professionals are essential, and how to make informed decisions that protect your investment and property.

Key Takeaways

• High-voltage soffit work needs a licensed electrician, permits, and code compliance to avoid fire and shock hazards
• Low-voltage well lights suit DIY better—if transformer size and wire gauge prevent voltage drop
• Outdoor recessed fixtures need wet ratings and sealed housings for direct water exposure
• Skip common failures: poor waterproofing, wrong spacing, undersized wire, and missing junction boxes
• Balanced designs pair recessed lights with uplighting, downlighting, and accents for cohesive results

Understanding Recessed Lighting Types and Voltage Systems

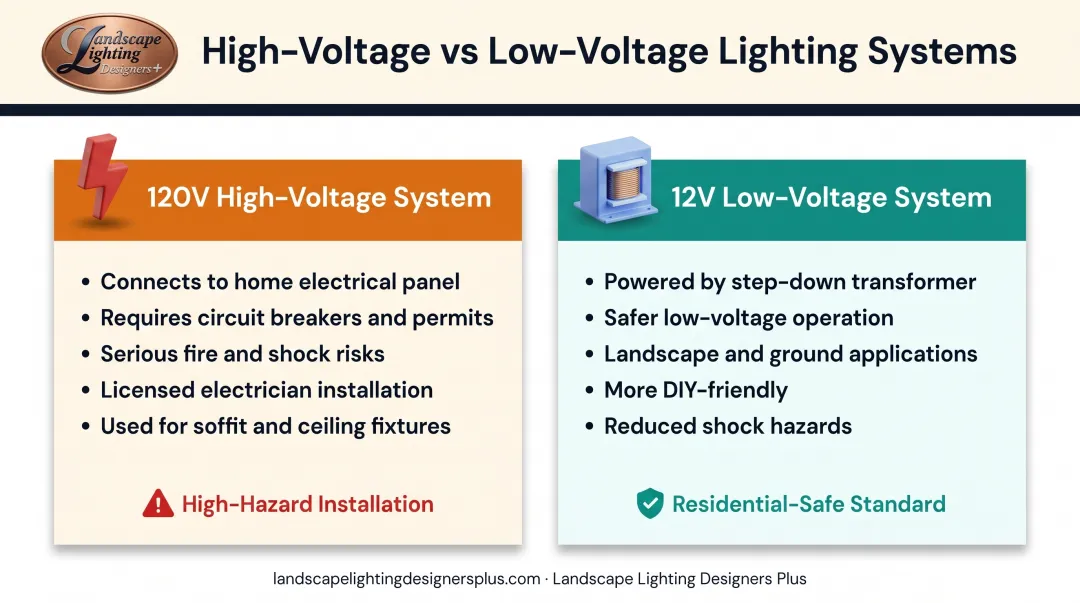

High-Voltage vs Low-Voltage Systems

The 120V system powers recessed lights in ceilings and soffits using household electrical circuits. According to the U.S. Department of Energy, 120V is the standard residential voltage in the United States.

These installations tie directly into your home's electrical panel, requiring circuit breakers, junction boxes, and typically electrical permits per local building codes. Mistakes at this voltage create serious fire and electrocution risks. NFPA estimates 46,652 annual home fires involving electrical distribution or lighting equipment, causing 527 deaths and $2.4 billion in property damage.

12V landscape systems operate on transformers that convert standard household power to safer low voltage. Kichler explains that residential landscape transformers step down 120V power to 12V for use with recessed well lights, step lights, and in-grade fixtures. These ground-level installations uplight trees, illuminate hardscape steps, and provide architectural accent lighting without the shock hazards of line voltage.

Wet-Rated vs Damp-Rated Requirements

Damp-rated fixtures handle humidity and occasional moisture but not direct water exposure. They suit only covered outdoor areas like protected soffits. Wet-rated fixtures are sealed against direct rain, snow, and splash, making them essential for exposed soffit installations and all in-ground landscape applications.

The City of Menifee's reproduction of UL 1598 definitions clarifies the split: wet locations are those where "water or other liquid can drip, splash, or flow on or against electrical equipment," while damp locations are "normally or periodically subject to condensation" but not direct saturation.

NEC Article 410 requires wet-location luminaires to be marked "Suitable for Wet Locations" and installed so water cannot enter wiring compartments.

Always use wet-rated fixtures for:

• Unprotected soffit installations exposed to weather
• In-ground well lights and step lights
• Any location subject to direct rain or snow
• Earth-contact applications where drainage is uncertain

Retrofit vs Canless Fixtures

Retrofit recessed lights work with existing housings already in the ceiling. You replace only the trim and light module.

Canless recessed lights are all-in-one units that need fresh cutouts in soffit or ceiling material. For outdoor work, aluminum housings typically offer better heat dissipation and corrosion resistance than plastic alternatives.

Prerequisites and Safety Considerations for Recessed Lighting Installation

Permits and Code Requirements

Electrical permit requirements vary significantly by jurisdiction. Portland, Oregon requires a residential electrical permit when adding a light fixture. Ringwood, New Jersey requires a licensed contractor and permit for landscape lighting above 10V, except for certain listed DIY plug-in kits.

Never assume low-voltage work is permit-exempt. Check with your local building department before starting any project.

Unpermitted electrical work can:

• Void homeowner's insurance coverage
• Create liability issues during home sales
• Result in fines and mandatory corrections
• Leave dangerous installations undetected

Site Readiness Checks

Before cutting or digging:

Ceiling or soffit fixtures

• Confirm the path is clear of HVAC ducts, existing wiring, and structural obstacles
• Match fixture IC (insulation contact) ratings to how you will manage insulation

Landscape fixtures

• Call 811 at least 48–72 hours before you dig
• Have utilities, irrigation lines, and major roots marked before excavation

Circuit Capacity and Transformer Sizing

120V installations require calculating total fixture wattage and verifying your circuit breaker can handle the additional load without overloading. Most residential lighting circuits are 15A or 20A; exceeding capacity causes breaker trips and fire hazards.

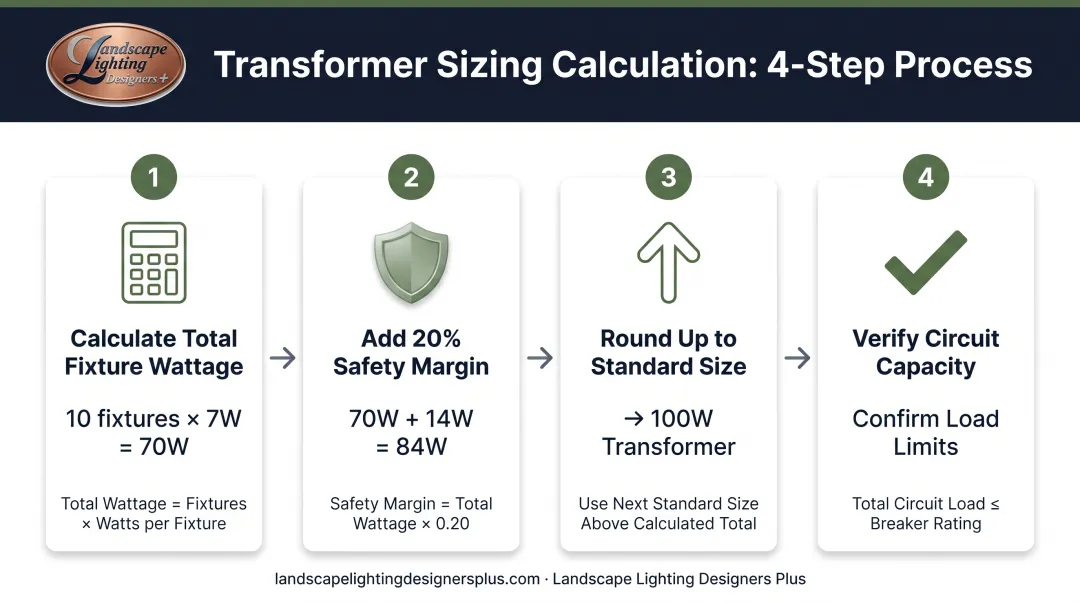

12V systems demand properly sized transformers. Kichler recommends calculating total fixture wattage and selecting a transformer with at least 20% safety margin. For example, ten 7-watt LED well lights (70 watts total) need at least an 84-watt transformer, usually rounded up to a 100-watt model for headroom.

Essential Safety Requirements

Use GFCI protection for outdoor transformer receptacles whenever possible. The 2023 NEC 210.8(F) allows limited exceptions for some lighting outlets, but many landscape transformer makers still require a GFCI-protected receptacle. The CPSC notes that GFCIs cut power when current differs by as little as 0.006 amperes, which helps prevent severe shock.

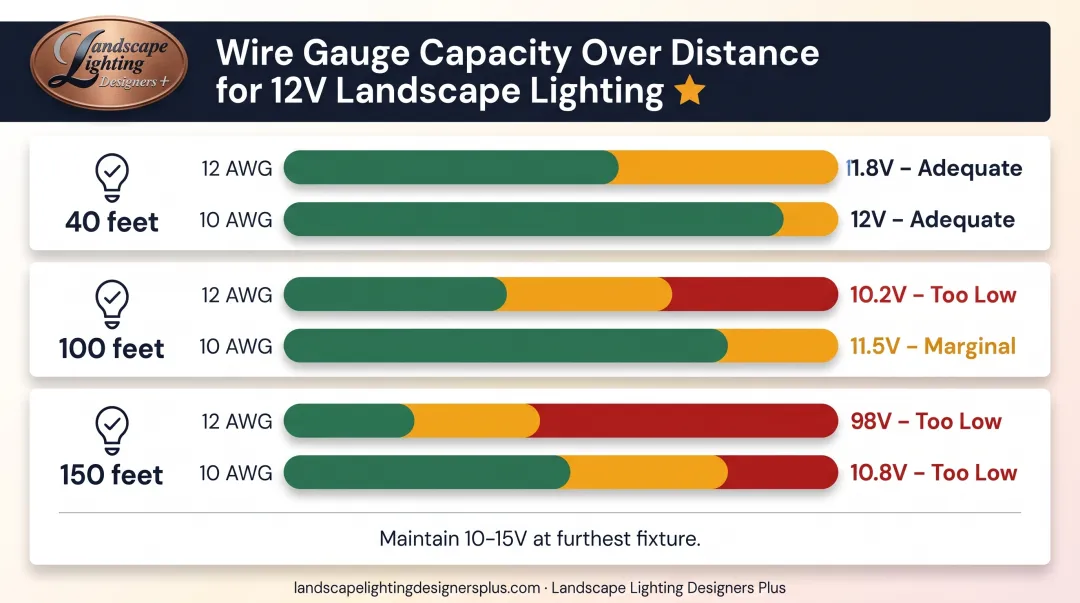

Correct wire gauge limits voltage drop on low-voltage runs. FX Luminaire publishes wattage limits by gauge and distance:

• 12 AWG: about 160W up to 40 feet; only about 60W at 120–160 feet
• 10 AWG: higher capacity on longer runs

Start with 12 AWG, then step up to heavier cable on long runs so fixtures at the end of the circuit stay bright.

Non-negotiables:

• Turn off 120V power at the breaker and verify with a voltage tester before touching any wires
• Never install non-wet-rated fixtures in outdoor locations
• Never exceed transformer capacity on low-voltage systems
• Always call 811 before digging

Tools and Materials Required for Recessed Lighting Installation

Line-voltage soffit work and low-voltage landscape recessed lights need different kits. Gather everything for your install type before you cut holes or dig trenches.

120V Soffit/Ceiling Installation

Essential tools:

• Voltage tester to verify power is off
• Circular hole saw (sized to your specific fixture diameter)
• Wire strippers and cable staples
• Fish tape for running wire through walls or attics
• Screwdrivers and personal protective equipment

Required materials:

• Wet-rated recessed fixtures with sealed housings
• 14/2 or 12/2 UF-B cable rated for outdoor and wet locations
• No NM cable outdoors—it is not rated for wet or damp locations (EC&M on UF-B under Article 340)
• Junction boxes rated for wet locations
• Waterproof wire connectors (wire nuts alone are insufficient for outdoor use)
• GFCI outlets or breakers as required
• Appropriate mounting hardware

12V Landscape Recessed Installation

Essential tools:

• Shovel or trenching tool
• Wire strippers and voltage meter
• Drill with bits appropriate for hardscape installations
• Level for proper fixture alignment

Required materials:

• Low-voltage transformer (sized with 20% safety margin above total load)
• 12V wet-rated recessed well lights or step lights
• Low-voltage cable—12 or 10 AWG depending on run length and load
• Waterproof wire connectors rated for direct burial
• Conduit for protection in high-traffic areas

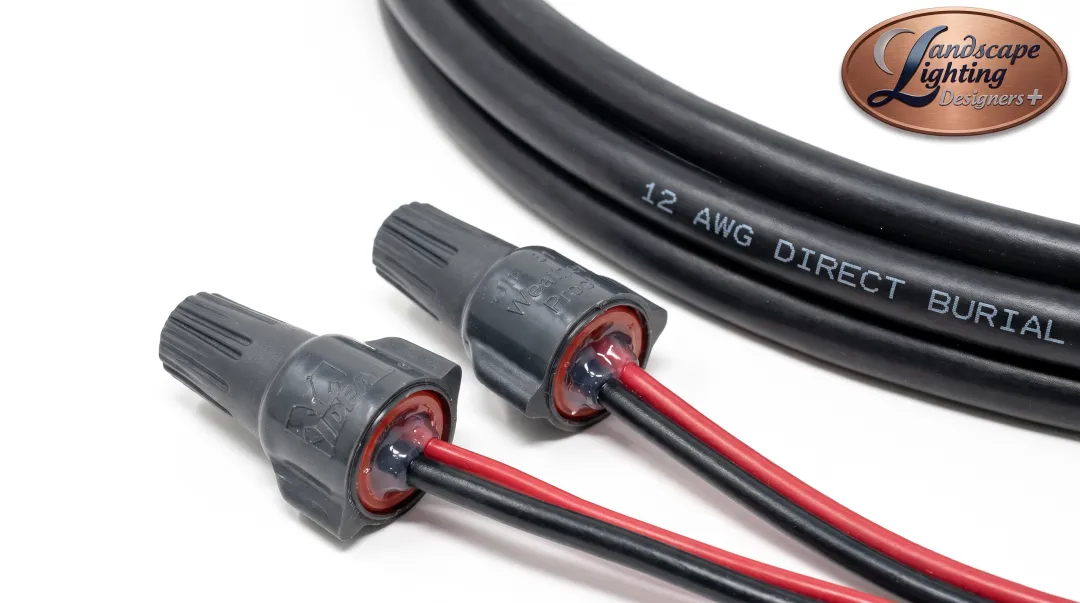

Critical material standards: Standard indoor wire nuts are not waterproof. For landscape work, FX Luminaire specifies 3M DBR/Y-6 direct-bury splice kits and UL-listed direct-burial cable.

Skip substitutes that cause early failure:

• Plastic fixtures in harsh climates
• Undersized wire (voltage drop)
• Non-waterproof connectors (safety hazard)

How to Install Recessed Lighting: Voltage-Specific Approaches

Installation sequences differ between 120V and 12V systems. High-voltage work ties into household circuits, while low-voltage work centers on transformer setup and voltage management. Shortcuts in either system create long-term performance and safety problems.

Installing 120V Recessed Soffit or Ceiling Lights

Preparation phase:

1. Turn off power at the circuit breaker and verify with a voltage tester at the work location
2. Locate studs or joists using a stud finder to avoid cutting through structural members
3. Mark fixture locations based on your spacing plan and desired light coverage

Cutting and wiring phase:

1. Cut openings using a hole saw sized to your fixture specifications
2. Run cable from the power source to the first fixture, then between fixtures (daisy-chaining)
3. Secure cable with staples every 4.5 feet per NEC 334.30 support requirements, and within 12 inches of each enclosure entry

Fixture integration:

1. Feed cable through junction box knockouts
2. Strip wire insulation: remove 6-8 inches of outer sheathing and 3/4 inch from individual conductors
3. Connect wires: Black to black (hot), white to white (neutral), bare copper to green or ground screw using wire nuts
4. Secure connections inside junction boxes and seal against moisture intrusion per NEC Article 410 requirements

Installation completion:

1. Mount fixtures into cutouts using provided clips or spring mechanisms
2. Install trim and bulbs according to manufacturer specifications
3. Restore power and test operation
4. Check for consistent brightness and flickering that might indicate loose connections

Installing 12V Low-Voltage Landscape Recessed Lights

Transformer setup:

1. Mount transformer near a GFCI-protected outdoor outlet or have an electrician install a dedicated circuit
2. Calculate total load to ensure transformer capacity isn't exceeded
3. Configure timer or photocell controls if included with your transformer

Site preparation:

1. Call 811 to locate underground utilities
2. Plan wire runs to minimize voltage drop—keep runs under 100 feet when possible
3. Excavate trenches at least 6 inches deep for direct-burial cable or drill into hardscape for step lights

Wiring and testing:

1. Run low-voltage cable from transformer to fixture locations
2. Make connections using waterproof connectors rated for direct burial
3. Test voltage at each fixture with a multimeter. Kichler calls for end-of-run voltage above 10V; FX Luminaire specifies 10-15 VAC for most LED fixtures
4. Upgrade wire gauge if voltage drop exceeds manufacturer specifications

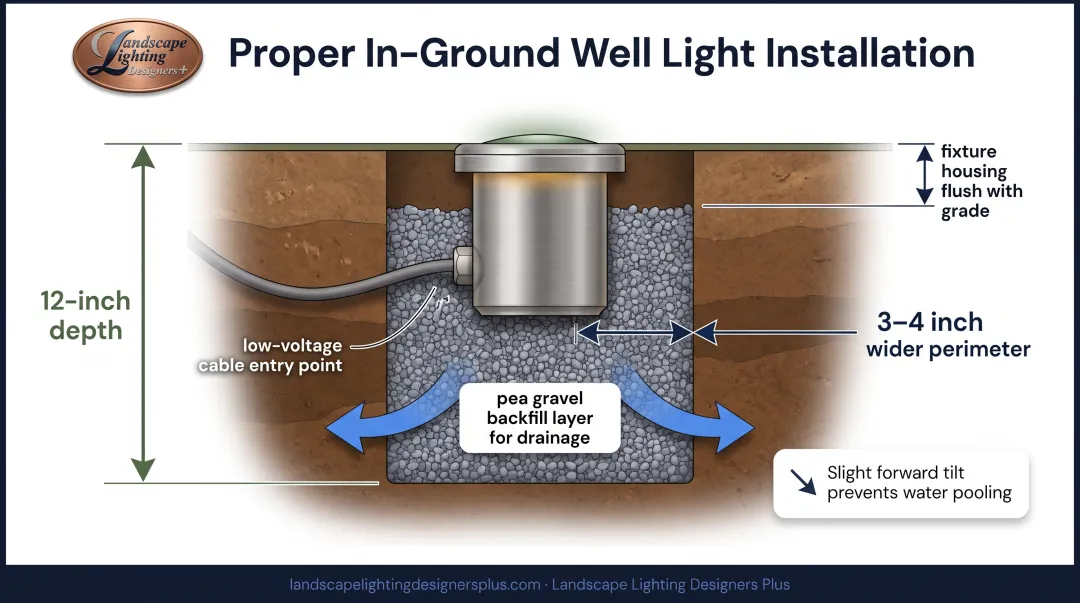

Fixture installation:

1. Place well lights in excavated holes with tops flush to grade
2. Ensure drainage away from the fixture. In soft soil, Kichler recommends excavating 3-4 inches wider and 12 inches deeper than the fixture, then backfilling with pea gravel
3. Aim adjustable fixtures at tree canopies, architectural features, or focal points
4. Backfill and conceal wire, then test complete system operation

Post-Installation Checks and Validation for Recessed Lighting

Run these checks before you call the install finished—they catch safety issues and performance problems while they're still easy to fix.

Visual and Structural Checks

• Confirm fixtures sit flush with the mounting surface, with no gaps that can let moisture in
• Check that trim rings are secure and properly sealed
• Inspect surrounding materials for installation damage

Functional Testing Procedures

120V systems:

• Test each fixture individually to confirm operation
• Check for even light distribution across fixtures
• Verify GFCI protection by pressing the test button—circuit should trip immediately

12V landscape systems:

• Measure voltage at the furthest fixture from the transformer using a multimeter
• Confirm beam angles and coverage match the design
• Test timer or photocell operation through a full 24-hour cycle

Indicators of Correct vs Incorrect Installation

Correct installations show:

• Consistent brightness across all fixtures
• No flickering or intermittent operation
• No moisture inside fixture lenses
• Proper fixture alignment and secure mounting
• Voltage readings within manufacturer specifications

Incorrect installations exhibit:

• Voltage drop causing dim end fixtures
• Water intrusion into housings
• Loose fixtures or trim rings
• Intermittent operation
• Visible gaps in waterproof seals

Common Installation Problems and Solutions

Even careful installs run into snags. These are the issues homeowners hit most often with recessed landscape fixtures, and how to fix them.

Problem 1: Fixtures Flickering or Not Turning On (12V Systems)

Symptoms: Recessed lights flicker intermittently or stay dark even though the transformer has power.

Likely causes:

• Loose wire connections at fixtures, splices, or the transformer
• Undersized or failing transformer
• Faulty timer, photocell, or smart control
• Corroded contacts or a defective fixture

Resolution steps:

• Shut off power and tighten every splice, fixture lead, and transformer terminal
• Confirm total fixture wattage sits within the transformer's rated load
• Bypass the timer or photocell briefly to rule out a bad control
• Swap the dark fixture with a working one to isolate defects

Problem 2: Significant Brightness Variation Between Fixtures (12V Landscape Systems)

Symptoms: Fixtures nearest the transformer appear bright while distant fixtures are noticeably dim, creating uneven lighting.

Likely causes:

• Excessive voltage drop due to insufficient wire gauge
• Total fixture wattage exceeding transformer capacity
• Poor electrical connections creating resistance

Resolution steps:

• Measure voltage at dim fixtures with a multimeter. If it reads below the manufacturer minimum, upgrade the wire gauge
• Refer to FX Luminaire's wire gauge chart: for a 100-foot run, 12 AWG handles only 100W while 10 AWG supports 120W
• Split fixtures across multiple transformer outputs if available
• Add a secondary transformer to reduce run lengths

Problem 3: Water Intrusion Inside Fixture Housing

Symptoms: Moisture accumulates inside fixture lenses, causing condensation, corrosion, and premature bulb failure.

Likely causes:

• Non-wet-rated fixture installed outdoors
• Improper or missing gaskets
• Unsealed junction boxes or wire entry points
• Damaged housings from installation

Resolution steps:

• Replace with properly wet-rated fixtures featuring sealed housings and gasket systems
• Apply silicone sealant to wire entry points and junction box connections
• Install fixtures level or with slight forward tilt to prevent water pooling
• Clear drainage around the fixture. FX recommends aiming uplights at least 10 degrees off vertical so water and dirt run off the lens

When to Hire a Professional Versus DIY Installation

While some recessed lighting projects suit experienced DIYers, many scenarios require licensed professionals for safety, code compliance, and optimal results.

DIY-Appropriate Scenarios

Consider DIY when:

• Replacing existing recessed fixtures with same-size retrofit models
• Installing low-voltage landscape well lights in simple layouts with straightforward transformer sizing
• Adding fixtures to existing low-voltage systems with available transformer capacity
• Working in easily accessible locations without structural complications
• Possessing electrical knowledge, proper tools, and willingness to obtain permits

When Professional Installation Is Essential

Hire licensed professionals for:

• All 120V ceiling and soffit installations requiring new circuit runs or panel work
• Installations penetrating fire-rated ceiling assemblies—UL requires proper testing and certification for luminaires in fire-resistive assemblies
• Projects requiring electrical permits and inspections
• Complex landscape lighting designs integrating multiple fixture types
• Any work where you lack electrical knowledge or proper tools

The Professional Landscape Lighting Designer Approach

Professional designers create cohesive outdoor lighting systems that balance recessed well lights with path lights, uplights, and downlights for architectural emphasis.

Landscape Lighting Designers Plus has served the Washington DC metro area for over 21 years with this full-system approach. Owner Craig Collins personally designs every project and works exclusively with safe 12V systems rather than 120V house-mounted lights. His process includes:

• Customized planning based on property architecture and landscape features
• Proper transformer sizing and wire gauge calculations to prevent voltage drop
• Strategic fixture placement for optimal beam spread and coverage patterns
• Personal installation and post-installation adjustments to perfect the presentation
• Ongoing maintenance relationships for seasonal adjustments and system expansions

Long-Term Value Considerations

Professional installations offer clear advantages:

• Warranties covering both products and workmanship
• Protection from costly mistakes like voltage drop issues that require expensive wire upgrades
• Code compliance that prevents violations complicating home sales
• Higher property value through expert design and execution
• Ongoing maintenance support as landscaping matures

Professional landscape lighting costs vary by scope. According to HomeAdvisor's 2025 data, professionally installed low-voltage landscape lighting typically ranges from $90–$150 per fixture. Total project costs reflect fixture count, installation complexity, and wire run lengths.

Conclusion

Successful recessed lighting installation comes down to a few decisions: 120V vs. 12V, solid safety habits, wet-rated fixtures built for the outdoors, and a clear call on when to bring in a pro.

High-voltage soffit work needs electrical know-how, permits, and code compliance to avoid fire and shock hazards. Low-voltage landscape installs are more DIY-friendly, but they still fail early without the right transformer size, wire gauge, and waterproof connections.

Plan before you cut or bury anything. Use outdoor-ready materials—proper wet ratings, sealed housings, adequate wire gauge, and waterproof splices—and place recessed fixtures so they support the rest of your landscape lighting, not fight it.

DIY works when the run is simple and you stay inside low-voltage best practices. For a cohesive, long-lasting design—especially on DC metro homes with mature landscaping or distinctive architecture—a low-voltage specialist such as Landscape Lighting Designers Plus can handle design and installation end to end. Either path should leave you with safe, reliable light that makes outdoor spaces usable after dark.

Photographs settle this faster than descriptions—our lighting project gallery shows how these effects look after dark on finished homes.

Frequently Asked Questions

How much does it cost to have outside lights installed?

According to HomeAdvisor, low-voltage landscape lighting typically runs $90–$150 per fixture including labor and materials. Focused entry and pathway systems often start around $3,000; whole-property designs can exceed $15,000. Request detailed quotes from licensed contractors before you proceed.

Do I need a permit to install recessed lighting?

Most jurisdictions require electrical permits for 120V work that adds circuits or opens ceilings. Low-voltage landscape lighting under 30V often does not, but local rules differ—see Portland and Ringwood, NJ as examples. Always check with your building department first; unpermitted work can affect insurance and resale.

What is the difference between wet-rated and damp-rated recessed lights?

Wet-rated fixtures are sealed against rain, snow, and splash—required for exposed soffits, outdoor ceilings, and in-ground landscape lights. Damp-rated fixtures handle humidity but not direct water and suit only covered areas like protected porches. Use wet-rated fixtures for all true exterior installs to avoid moisture damage and electrical hazards.

Can I install recessed lights in my soffit myself?

Soffit work means 120V circuits, breakers, and junction boxes—mistakes create fire and shock hazards (NFPA links nearly 47,000 home fires a year to electrical distribution or lighting). Most homeowners should hire a licensed electrician for 120V installs. Low-voltage landscape recessed lights are a more DIY-friendly alternative.

How do I prevent voltage drop in landscape lighting?

Voltage drop dims fixtures at the end of long runs. Use adequate wire gauge for length and load (FX Luminaire chart), keep total wattage under 80% of transformer capacity, split long runs, place transformers centrally, and measure voltage at each fixture during install (many LED makers want about 10–15V minimum).

What is the best spacing for outdoor recessed lights?

Soffit recessed lights typically space 4–8 feet apart based on lumens and mounting height, closer near entries. Pathway well lights often sit 8–15 feet apart; tree and architectural accents need custom placement. Landscape Lighting Designers Plus sets spacing on-site and fine-tunes after install for coverage and balance.
