Poor installations create uneven lighting that looks amateurish, voltage drop causing dim fixtures at the end of cable runs, buried cable damage from improper depth, and design mistakes that waste money on fixtures placed incorrectly. This guide covers the complete installation of low-voltage landscape lighting following professional standards—from design planning through validation—so DIYers can achieve results that enhance curb appeal and property value.
Key Takeaways
- Low-voltage (12V) systems are safer and more DIY-friendly than line-voltage—if you plan carefully
- Strong results need both design choices (what to light, where) and solid technical execution
- Average front yard (10–15 fixtures): 2–4 days and $800–$2,500 in materials
- Plan first, size the transformer correctly, bury cable 6+ inches, then test after dark
- Pro installation runs $3,000–$8,000+ and includes design expertise, premium fixtures, and warranty
Is Low Voltage Landscape Lighting a DIY Project?
Low-voltage systems operate at 12 volts (stepped down from 120V household current via a transformer), making them far safer than line-voltage alternatives. No electrician license is required in most jurisdictions for the low-voltage work itself, shock risk is reduced, and mistakes are rarely dangerous.
Licensing still varies by state. California includes low-voltage landscape lighting in its C-7 contractor license, while Florida has a narrow plug-in exemption that requires no installation or modification of structure wiring. Always verify local requirements before starting.
Realistic skill requirements:
- Ability to use basic tools: shovel, wire strippers, drill
- Comfort following electrical diagrams and manufacturer instructions
- Physical capability to dig trenches and stake fixtures
- Willingness to learn design principles, not just technical installation
Time commitment: Plan for 4-8 hours of design and planning, 1-2 days for installing 10-15 fixtures, plus an evening for post-installation adjustments after dark. Rushed installations always look amateurish.
Cost comparison: DIY materials run $800-$2,500 for quality components versus professional installation at $3,000-$8,000+. DIY saves labor costs but risks design mistakes that waste money on poorly placed fixtures.
The design-versus-installation distinction matters. Installing low-voltage fixtures is straightforward. Knowing what to light, where to place fixtures, and how to build balanced layered effects takes study or professional guidance.

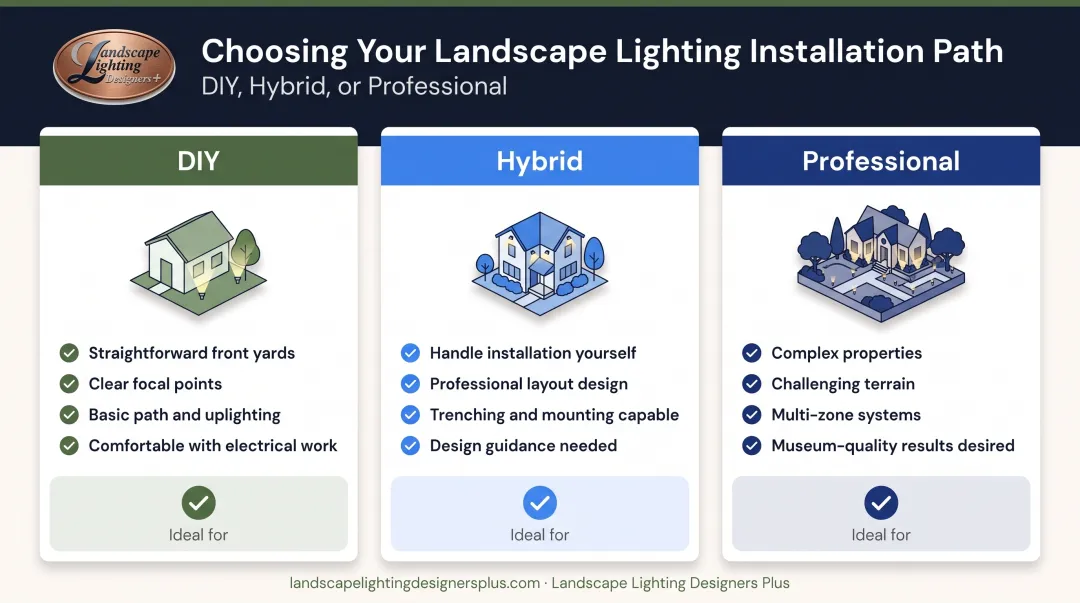

Self-assessment framework:
- DIY makes sense for: Straightforward front-yard projects with clear focal points such as path lighting, foundation uplighting, and tree accents
- Hybrid works when: You can handle trenching and fixture mounting but want a pro layout before you buy gear
- Professionals add value for: Complex properties, challenging terrain, or museum-quality design results
Planning Your Low Voltage Landscape Lighting Installation
Proper planning prevents the most common expensive mistake: buying fixtures before understanding the complete design, then realizing you need different types, quantities, or placements.
Creating Your Property Lighting Plan
Start with a sketch:
- Draw your home and yard on graph paper
- Identify architectural features worth highlighting: columns, stonework, interesting textures
- Mark specimen trees and landscaping focal points
- Note pathways and functional areas requiring safety lighting
- Consider views from both the street and interior windows

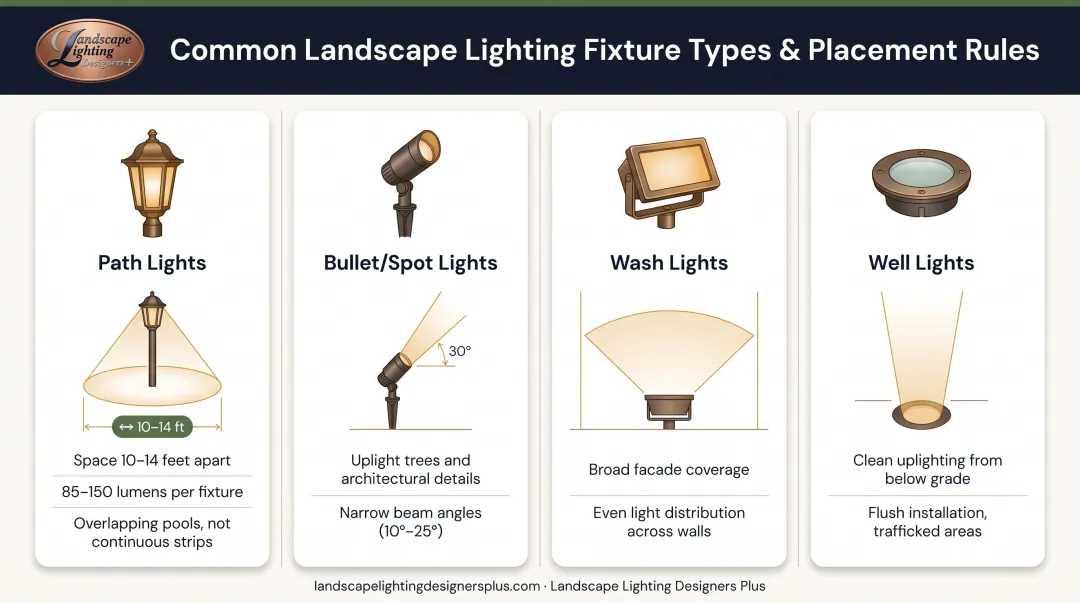

Match fixtures to the job:
- Path lights: Space 10-14 feet apart along walkways for overlapping pools of light—not a continuous strip
- Bullet/spot lights: Uplight trees and architectural details
- Wash lights: Cover broad facade areas with even light
- Well lights: Set in-ground for clean uplighting from below
Most strong designs use only 3-4 fixture types so the yard reads in layers, not clutter. Kichler recommends path lights at 10-14 feet with 85-150 lumens to avoid overlighting.
Tools and Materials Checklist
Essential tools:
- Flat-edged spade or trenching tool
- Wire strippers
- Multimeter (to check voltage at fixtures)
- Drill with masonry bit (for transformer mounting)
- Tape measure
- Landscape marking paint
Required materials:
- Low-voltage transformer sized at 120-150% of total fixture wattage
- 10-12 gauge landscape cable (12-gauge for runs under 50 feet, 10-gauge for longer runs)
- Fixtures appropriate to your design
- LED bulbs with 2700K-3000K color temperature for warm residential look
- Waterproof wire connectors
- Ground stakes
- Timer or photocell control
Transformer sizing calculation: Add total wattage of all planned fixtures, multiply by 1.25-1.5 for safety margin and future expansion. A 15-fixture system with 3W LEDs needs 45W minimum, so a 75-100W transformer is appropriate. Total fixture VA must not exceed transformer wattage rating.
Optional but recommended:
- Wire burial warning tape (placed 2-3 inches above cable)
- Cable clips for securing to structures
- Anti-corrosion spray for coastal areas
- Junction boxes for hub systems on longer runs
What not to substitute:
- Indoor-rated wire or connectors outdoors
- An undersized transformer (causes voltage drop and dim or failing lights)
- Fixtures not rated for wet locations or ground burial
Step-by-Step Installation Process
Installation follows a logical sequence: transformer mounting → cable layout → fixture placement and connection → testing → burial and final adjustment. Skipping steps or rushing creates problems that need costly rework.
Step 1: Mount Transformer and Prepare Power
Install the transformer on an exterior wall near a GFCI-protected outlet, positioned at least 12 inches above ground to prevent water contact. Use corrosion-resistant mounting screws appropriate for your wall material: masonry anchors for brick or stone, exterior-rated screws for wood siding.
If no GFCI outlet exists in the planned location, hire a licensed electrician for this single task. Mixing DIY low-voltage work with amateur 120V wiring is where safety problems occur.
Step 2: Lay Out Main Cable Runs
Run 10-12 gauge cable from the transformer location along planned fixture routes, leaving cable on the surface for now. Don't bury it until all connections are made and tested. Keep individual runs under 50-75 feet to prevent voltage drop.

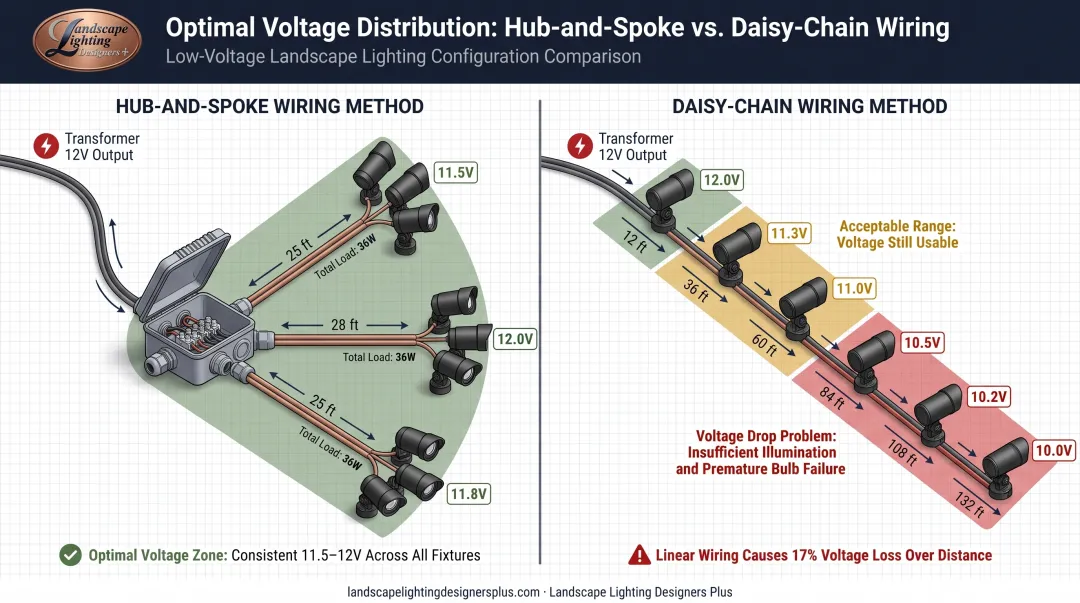

Hub and spoke method for optimal voltage distribution:
- Run main cable to a waterproof junction box in a central location
- Branch out with equal-length cables to fixture groups
- Balance loads across branches so no single run carries the full fixture load
That layout keeps brightness consistent instead of dimming fixtures at the end of long runs.
Kichler's voltage-drop formula is: VD = (2 × cable length × total VA on run) / cable constant. Use your manufacturer's cable constant to verify runs stay within acceptable voltage drop.
Step 3: Position and Connect Fixtures
Place all fixtures according to your lighting plan, but test positioning after dark before finalizing. What looks right in daylight often needs adjustment at night.
Proper connection technique:
- Use waterproof connectors that pierce cable insulation (no wire stripping required for most modern systems)
- Ensure firm connection by gentle tugging
- Position connectors where they won't be submerged in standing water
- Maintain at least 3-5 feet between connection points on a single cable run
Connecting fixtures too close together causes uneven voltage distribution.
Step 4: Test System Before Burial
Connect the transformer, power on the system, and verify every fixture illuminates properly. Fixing connection problems after burial requires digging up cable.
Use a voltage meter to check voltage at the furthest fixture from the transformer: should read 10-12 volts for most LED systems. If below 10.5V, you have voltage drop requiring either heavier gauge wire or redesigned cable routing with a hub system.
Step 5: Bury Cable and Secure Fixtures
Dig trenches 6-8 inches deep using a flat-edged spade. Lay cable in trenches with slight slack, not stretched tight. Tight cable can break connections as soil settles. Backfill carefully to avoid damaging cable insulation.
Note: Local code variations exist. Some jurisdictions require conduit for low-voltage cable, burial warning tape, or specific depth requirements. Check with your local building department before starting.
Secure fixture stakes firmly in soil, ensuring fixtures remain level and aimed correctly. Loose stakes shift over time causing fixtures to point in wrong directions.
Common Installation Mistakes and How to Fix Them
Even technically successful installations often have design or execution flaws that make lighting look amateurish. Fixing the issues below is usually what separates a passable job from a polished one.
Voltage Drop Causing Dim Fixtures at End of Run
Problem: Fixtures furthest from the transformer appear noticeably dimmer than those closest, creating unbalanced lighting.
Cause: Cable run too long for wire gauge used, or too many fixtures on a single run exceeding transformer capacity per zone.
Fix:
- Install a hub system with a junction box that splits power into equal-length branches
- Upgrade to heavier gauge wire (10-gauge instead of 12-gauge)
- Add a second transformer to split the load

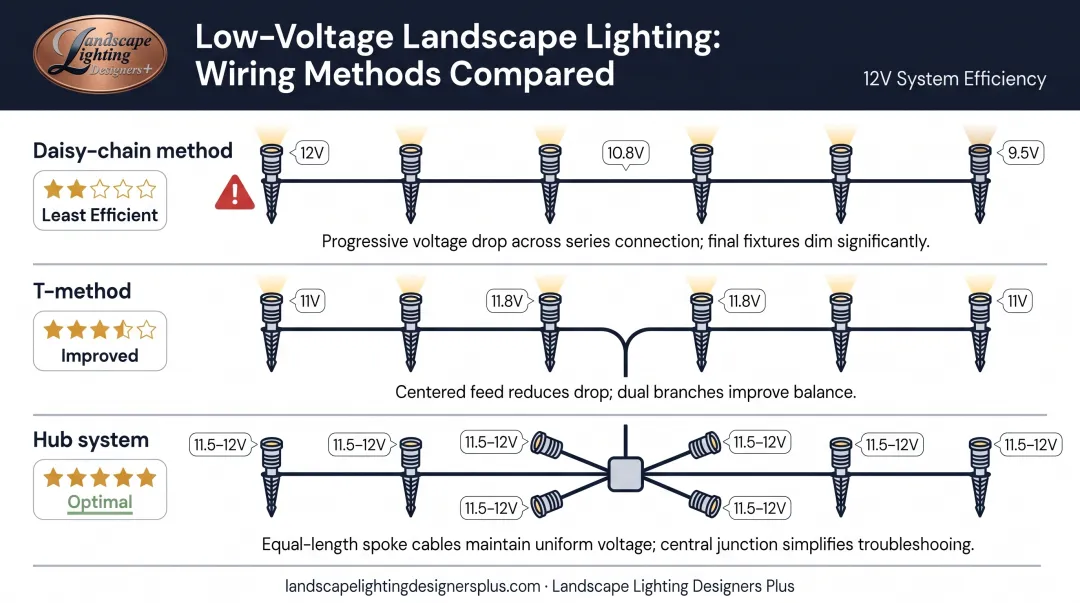

Daisy-chain wiring is least efficient because later fixtures receive progressively less voltage, even though LED systems tolerate it. Center-fed or T-wiring reduces first-to-last differential.
Overlighting Creating Harsh, Unnatural Appearance
Problem: Property looks like a shopping mall parking lot with excessive brightness and no shadow depth.
Cause: Using too many fixtures, choosing fixtures with excessive wattage/lumens, or placing lights too close together without creating intentional pools and shadows.
Fix:
- Remove every third fixture to create breathing room
- Switch to lower-wattage LED bulbs (3W instead of 5W)
- Adjust fixture angles to create grazing light rather than direct illumination
- Embrace darkness as part of the design
Visible Glare from Poorly Aimed Fixtures
Problem: Bright bulb spots visible from the street or windows, instead of the features you meant to light.
Cause: Fixtures aimed toward viewing angles instead of across surfaces, missing shrouds on bullet lights, or wide-beam bulbs where narrow spots belong.
Fix:
- Adjust all fixture angles after dark from primary viewing locations (street, front windows, driveway)
- Add glare shields or shrouds to bullet lights
- Reposition fixtures that create glare behind plantings or structures
- Choose narrow-beam bulbs (12-25 degree spread) for accent lighting
When to Hire a Professional Landscape Lighting Designer
While DIY installation is achievable, professional designers bring decades of experience with how light shapes architecture and landscaping. They often create results homeowners wouldn't envision on their own.
Situations where professional design adds significant value:
- Properties with complex architecture or mature landscaping requiring sophisticated layering
- Homeowners who want museum-quality results but lack confidence in design decisions
- Integration with existing low-voltage systems or home automation
- Challenging terrain or soil conditions (heavy clay, rocky soil, significant slopes)
In the DC metro area, Craig Collins at Landscape Lighting Designers Plus takes a design-first approach. He personally designs every project—no project managers or sales reps—and treats low-voltage landscape lighting as an art form guided by balance, subtlety, and elegance.
Homeowners can request a complimentary consultation to compare DIY outcomes with a professionally designed plan before committing.
Cost-benefit perspective: Professional installation typically runs $3,000–$8,000+ and usually includes:
- Design expertise that helps prevent expensive layout and fixture mistakes
- Access to commercial-grade fixtures with longer warranties
- Proper voltage calculations for complex or multi-zone systems
- An ongoing relationship for adjustments as landscaping matures
Photographs settle this faster than descriptions—our lighting project gallery shows how these effects look after dark on finished homes.
Frequently Asked Questions
What is the average cost to install garden lighting?
DIY materials for a typical system usually run $800–$2,500, depending on fixture quality and how many lights you install. This Old House notes smaller DIY setups can land lower. Professional installation commonly costs $3,000–$8,000+ with design, labor, and warranty.
Do you need an electrician to install garden lights?
In most areas, you can install 12V landscape lighting yourself—no licensed electrician required for the low-voltage side. You do need an electrician if you still need a GFCI-protected outdoor outlet for the transformer; leave all 120V work to a pro.
How long does it take to install low voltage landscape lighting?
Budget several hours for planning, a full day to install about 10–15 fixtures (trenching and connections), and 1–2 hours after dark to aim and adjust. Treat it as a full weekend minimum—rushing almost always means rework.
What is the biggest mistake DIYers make with landscape lighting?
Buying fixtures before a lighting plan, then ending up with the wrong types, counts, or placements. Decide what to light and why first, then shop. After dark, mock up positions with temporary battery lights before you commit.
Can I add more lights to my system later?
Yes. Size the transformer with 25–50% spare capacity, leave slack at junction points for future taps, and photograph cable routes before backfilling so you can find them later.
How do I know if my transformer is properly sized?
Add up fixture wattage (often 3–7W each for LED), multiply by 1.25–1.5, then pick the next larger transformer. Example: 12 × 5W = 60W × 1.5 = 90W minimum—so a 100W or 120W unit leaves room to grow.
