Introduction
"Will two flood lights cover my driveway?" and "How bright does my backyard lighting need to be?" are questions homeowners ask constantly when planning outdoor lighting. The answers aren't as simple as a quick search suggests. Coverage depends on lumens, beam angle, mounting height, and your goals for the space.
Get coverage wrong and the problems show up fast. Too few fixtures or poor placement creates dark spots that hurt safety and curb appeal. Too much wattage produces harsh glare that bothers neighbors and washes out the architectural details you meant to highlight.
This guide covers calculation methods, real-world DC metro examples, and when professional design turns adequate illumination into lighting that enhances your home.
Key Takeaways
- LED flood light coverage depends on lumens, beam angle, mounting height, and use—not wattage alone
- Most residential flood lights cover 500–2,000 sq. ft., depending on specs and site conditions
- Low-voltage landscape lighting offers more design flexibility and better aesthetics than 120V flood lights
- Strong designs balance coverage math with how light shapes architecture and landscaping
- DC metro homes with mature trees or historic architecture gain the most from customized lighting plans
Understanding LED Flood Light Coverage Basics
Coverage area is the space where light stays at usable brightness, measured in lux or foot-candles. One lux equals one lumen per square meter; one foot-candle equals one lumen per square foot.
Coverage is not the same as "maximum throw distance." A flood light may cast visible light 100 feet away, but only deliver useful illumination—enough to navigate safely or identify a person—for 40–50 feet. That gap matters when you plan security lighting.
Requirements also vary by purpose:
- Security lighting needs brighter, more uniform coverage to eliminate hiding spots
- Ambient landscape lighting uses lower intensity to set mood
- Task lighting (outdoor kitchens, grills) needs focused brightness in specific zones
Lumens: The True Brightness Measure
Lumens measure actual light output; wattage only measures energy consumption. A 100W incandescent bulb and a 15W LED can produce the same 1,600 lumens—the LED simply does it more efficiently.
According to the U.S. Department of Energy, residential LEDs use at least 75% less energy and last up to 25 times longer than incandescent lighting. The same efficiency advantage applies to outdoor flood lights.
Because LED specifications vary by manufacturer, model, and quality, generic wattage-to-lumen tables can be misleading. Always check the fixture's photometric data for delivered lumens rather than assuming output based on wattage alone.

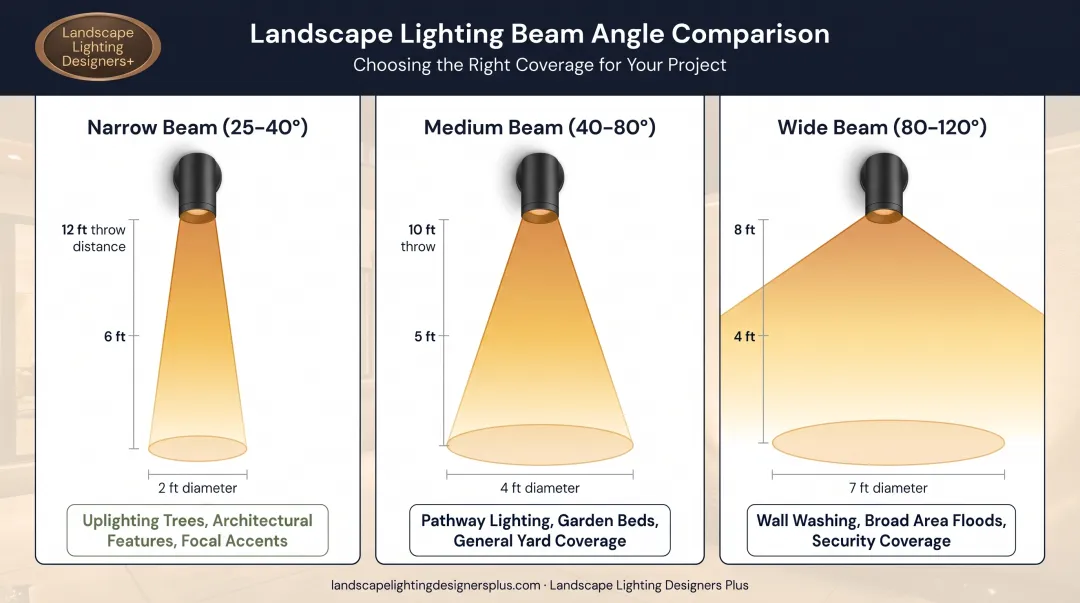

Beam Angle and Light Distribution
Beam angle defines how light spreads from the fixture:
- Narrow (25–40°): Focused cone for longer throw and accents (architecture, tall trees)
- Medium (40–80°): Balanced coverage for driveways, entries, and most homes
- Wide (80–120°): Broad, lower-intensity spread for security zones and facades
According to ERCO's lighting knowledge resources, beam diameter depends on emission angle and distance from the fixture. A 60° beam on a surface 10 feet away leaves a smaller footprint than the same beam at 20 feet. Coverage grows with distance; intensity falls.
Most residential applications use 60-90° beam angles for balanced coverage without excessive intensity or glare.
Mounting Height Changes Everything
Installation height changes both the coverage pattern and intensity at ground level. As a rule of thumb, each additional 3 feet of mounting height spreads coverage about 20% wider and lowers ground-level intensity in proportion.
ERCO's inverse-square relationship for perpendicular light is: illuminance (lux) = luminous intensity (candela) / distance² (distance in meters). Double the mounting height, and ground-level illuminance drops to about one-quarter.
Typical residential mounting heights:
- Wall-mounted fixtures: 8-12 feet
- Ground-mounted uplights: 6-10 feet
- Eave/soffit downlights: 10-15 feet
When planning coverage, always account for actual mounting location—a 50W LED at 15 feet delivers very different results than the same fixture at 8 feet.
How to Calculate Coverage Area for Your Property
Basic Coverage Formula
Coverage area calculation requires three inputs:
- Delivered lumens from the fixture's photometric data
- Beam angle and candela distribution (how intensity varies across the beam)
- Required illuminance level for your intended use
The simplified point-illuminance formula is E = I / d²: in metric, E is lux, I is candela, and d is meters; in US units, E is foot-candles, I is candela, and d is feet. E is illuminance at a point, I is luminous intensity in that direction, and d is distance from the fixture.
For full coverage area, you must:
- Define your target plane (pathway, driveway, patio)
- Calculate illuminance at multiple points across the beam footprint
- Verify that minimum illuminance meets your requirements
- Account for overlapping coverage from multiple fixtures (illuminance is additive)
Because this process needs photometric files and real site geometry, most homeowners get farther with manufacturer calculators or a property-specific lighting design than with hand math alone.
Practical Measuring Method for Homeowners
Step-by-step approach:
- Measure your space - Use a tape measure or Google Maps satellite view to calculate length × width for each area needing illumination
- Identify brightness needs - Determine whether you need security-level lighting, ambient lighting, or task lighting
- Account for obstacles - Note trees, fences, structures, and grade changes that will block or redirect light
- Plan 10-15% overlap - Position fixtures so coverage areas overlap slightly to avoid dark spots between beams
For larger properties, property surveys provide accurate measurements and show grade changes that affect fixture placement.
Quick Reference: Typical Coverage Estimates
Coverage estimates below assume standard residential-grade LED flood lights on flat terrain with minimal obstructions. Actual results vary with fixture quality, site conditions, and mounting specifics.
| Fixture Lumens | Mounting Height | 60° Beam | 90° Beam | 120° Beam |
|---|---|---|---|---|
| ~3,000 lm | 8 feet | 400-600 sq ft | 500-800 sq ft | 600-1,000 sq ft |
| ~3,000 lm | 10 feet | 500-750 sq ft | 600-1,000 sq ft | 800-1,200 sq ft |
| ~5,000 lm | 8 feet | 600-900 sq ft | 800-1,200 sq ft | 1,000-1,500 sq ft |
| ~5,000 lm | 10 feet | 800-1,200 sq ft | 1,000-1,500 sq ft | 1,200-1,800 sq ft |
| ~10,000 lm | 10 feet | 1,200-1,800 sq ft | 1,500-2,000 sq ft | 1,800-2,500 sq ft |
These estimates represent area illuminated to minimum visibility levels (approximately 5-10 lux). Security applications requiring 20-50 lux will reduce effective coverage area proportionally.

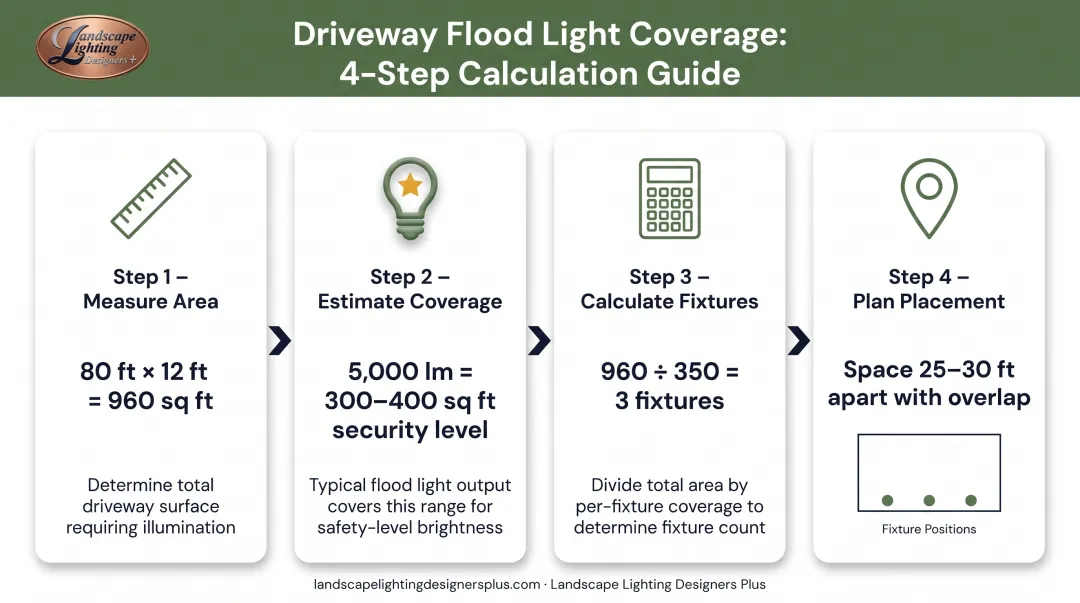

Example Calculation Walkthrough
Scenario: 80-foot driveway needing security-level lighting, using fixtures with 5,000 lumens each, 90° beam angles, mounted at 10 feet.
Step 1: Calculate driveway area
- 80 feet long × 12 feet wide = 960 square feet total
Step 2: Estimate per-fixture coverage
- Each 5,000-lumen fixture at 10 feet with 90° beam covers approximately 1,000-1,500 square feet at ambient lighting levels
- For security lighting (3 to 4 times brighter), reduce coverage estimate to 300-400 square feet per fixture
Step 3: Determine fixture count
- 960 sq ft ÷ 350 sq ft per fixture = 2.7 fixtures
- Round up to 3 fixtures for complete coverage
Step 4: Plan placement
- Position fixtures 25-30 feet apart along the driveway
- Aim to create 10-15% overlap between coverage zones
- Mount on one or both sides depending on driveway width and landscape features
Treat this as a starting layout, then verify on site with a lux meter after install. Beam quality, surface reflectivity, and grade will shift real coverage, and a designer working from photometric data can refine fixture count and aim before you buy.
Real-World DC Metro Property Scenarios
Typical Bethesda/Potomac Home: 1/4 to 1/2 Acre
Typical layouts include a front yard, circular or straight driveway, backyard patio, and mature tree cover.
Typical coverage approach:
- Front entry and driveway: 2-3 flood lights aimed at the garage, front door, and turnaround
- Backyard security: 3-4 fixtures covering access points, patio edges, and property boundaries
- Accent lighting: Additional low-voltage landscape fixtures for tree uplighting, pathway illumination, and architectural highlighting
Mature oaks, maples, and dogwoods cast shadows that force adjusted fixture placement. Dense summer canopy can block flood coverage; bare winter branches let light through and change the effective illuminated area.
Many homeowners here get better results from low-voltage landscape lighting than from flood lights alone. A designed system layers pathway lights, uplights, and selective accents to guide movement and bring out architectural and landscape features without harsh overhead glare.
Georgetown/Capitol Hill Row House
Unique challenges:
- Narrow lots (often 16-20 feet wide)
- Limited mounting locations due to historic architecture
- Close neighbor proximity requiring careful beam control
- Front yards often 10-15 feet deep with limited planting space
Suggested coverage approach:
- Front entry: 1-2 tightly aimed fixtures on steps, door, and address marker
- Backyard/patio: Focused light on living areas via upper-floor downlights or low-profile garden fixtures
Beam angle control becomes critical in these settings. A 120° wide beam that works perfectly on a half-acre lot will create light trespass in a row house environment. Narrow to medium beams (40-70°) with precise aiming prevent illumination from crossing property lines.
On these lots, fixture count stays low and aiming stays tight so light meets the entry and patio without washing historic facades or crossing the property line.

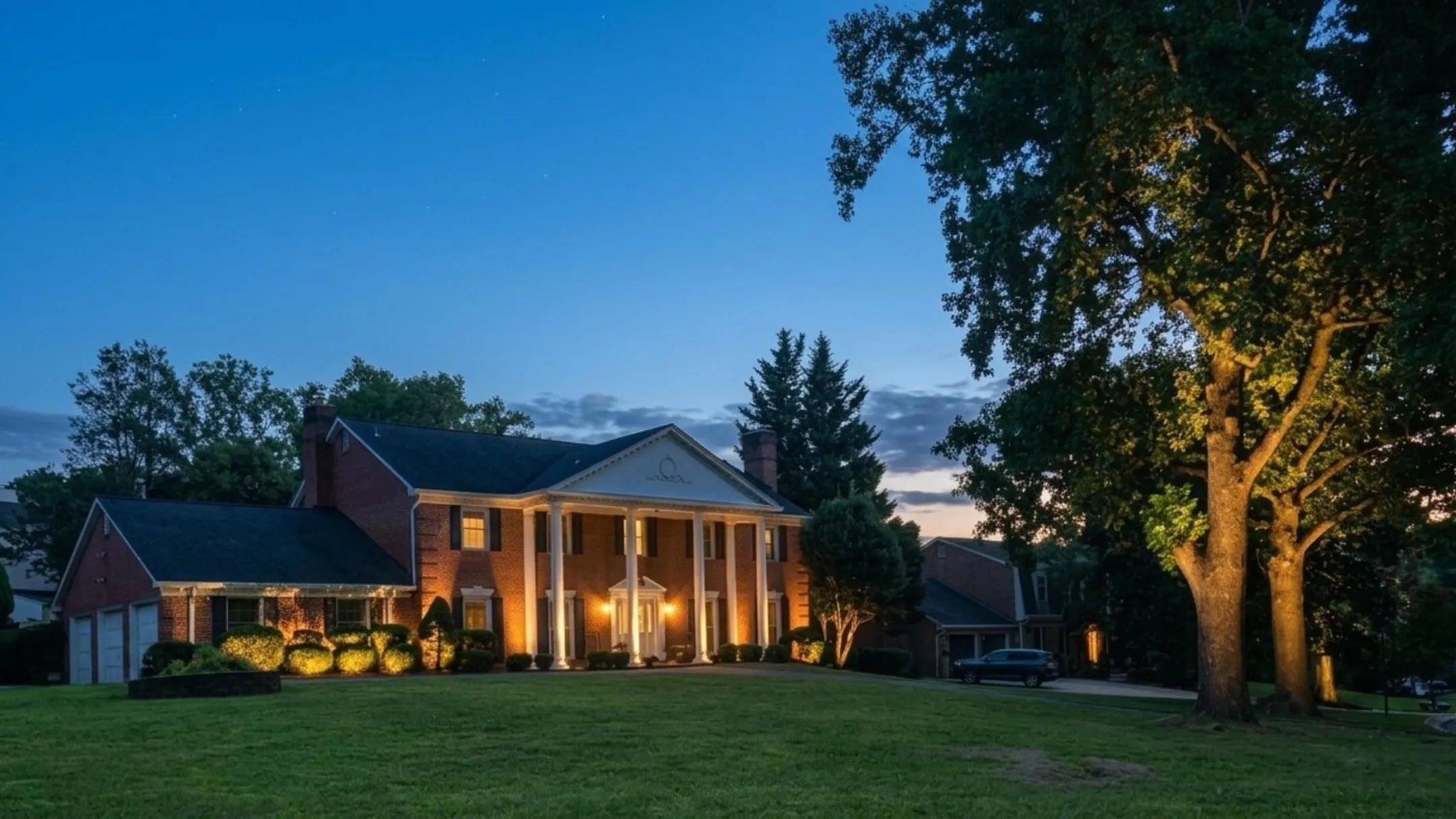

Chevy Chase Estate Property: 1+ Acre
Larger properties present comprehensive coverage needs:
- Long driveways (100+ feet)
- Extensive landscaping with multiple garden areas
- Multiple outdoor living spaces (patio, pool, terrace)
- Security perimeter around property boundaries
Coverage strategy:
Plan on 8-12+ fixtures across entries, walk routes, and activity areas. Flood-only coverage gets expensive and visually harsh at this scale.
Properties this size need a design that balances coverage math with aesthetics and energy use.
Use selective flood lights for broad security zones, then fill in with low-voltage landscape lighting on specimen trees, garden features, and architecture. You get usable light and stronger nighttime curb appeal without blanketing the lot.
When Flood Lights Work for Landscape Lighting
Appropriate flood light uses:
- Security lighting for large open areas (backyards, side yards, service areas)
- Illuminating tall building facades (two-story or higher)
- Lighting parking areas, turnarounds, and garage surrounds
- Temporary lighting during construction or events
Inappropriate flood light uses:
- Close-range landscaping (creates harsh shadows and glare)
- Pathway lighting (wrong beam pattern; causes excessive glare)
- Accent lighting for garden beds or small ornamental features
- Highlighting architectural details at close range
For most DC metro homes, low-voltage landscape lighting outperforms flood lights alone. The fixtures tuck into planting beds, draw less power, and build layered light that supports the property instead of washing it out.
Factors That Affect Actual Coverage Area
Physical Obstacles and Reflective Surfaces
Trees, fences, and structures block light and create shadows that reduce effective coverage. A flood light aimed across an open lawn delivers predictable results; the same fixture aimed through tree branches produces irregular coverage with bright spots and dark zones.
Surface reflectivity changes how bright a space looks. According to ERCO's photometry resources, illuminance measures incident light, while luminance describes light reflecting from a surface and perceived as brightness.
Light-colored surfaces (white siding, concrete, light stone) reflect 50-80% of incident light and extend effective coverage. Dark surfaces (black mulch, dark brick, weathered wood) absorb 70-90% of light, so you often need more fixtures to reach the same perceived brightness.
Seasonal changes affect coverage:
- Deciduous trees provide full shade and block light in summer
- Bare branches in winter allow 50-70% more light to pass through
- Snowfall reflects significant light, temporarily increasing brightness
- Wet surfaces appear darker than dry surfaces due to light absorption
Plan fixture placement and aiming with these variations in mind, especially for properties with mature tree coverage common in Bethesda, Potomac, and Chevy Chase.
Light Color and Quality
Correlated color temperature (CCT) describes whether nominally white light appears warmer/yellower (2700-3000K) or cooler/bluer (5000-6500K). According to DOE guidance, CCT describes emitted-light appearance, not object color, and sources with the same nominal CCT can still appear visually different.
Color Rendering Index (CRI) measures color-fidelity relative to a reference source. Higher CRI (80-100) improves visibility and object recognition even at the same lumen levels by rendering colors more accurately.
For residential outdoor applications:
- 3000-4000K provides balanced warmth and visibility
- Too warm (2200-2700K) may appear dim or orange
- Too cool (5000-6500K) creates harsh, institutional appearance
- Aim for CRI 80+ for natural color rendering
Fixture Quality and Optics
Not all LED flood lights perform equally. Quality optics focus light more effectively and deliver more usable illumination per lumen. Budget fixtures often claim high lumens but waste light through poor optical design, unshielded sources, and inefficient reflectors.
Higher-quality fixtures hold beam patterns and output more consistently over time. Lower-quality LEDs lose brightness and shift color faster, which can shrink effective coverage within 2-3 years. Fixtures with solid thermal management and durable LED arrays typically keep 90%+ of initial output for 25,000-50,000 hours.
Compare fixtures on delivered lumens, candela distribution, beam and field angles, uplight control, source shielding, and lumen-maintenance test data—not generic "professional-grade" claims.

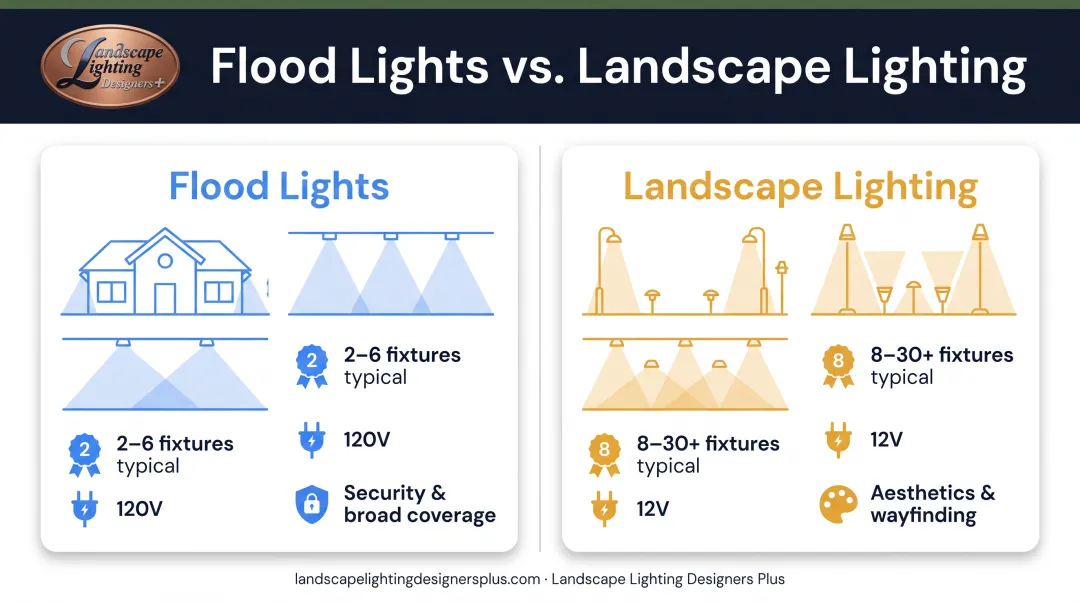

Flood Lights vs. Comprehensive Landscape Lighting
Different Tools for Different Purposes
Flood lights provide broad area coverage from single fixtures, mounted relatively high (8-15 feet), with wide beam angles and higher intensity. They excel at illuminating large, open areas (parking zones, side yards, building facades) but create harsh lighting for intimate outdoor spaces.
Landscape lighting uses multiple fixture types (path lights, uplights, downlights, accent lights, and selective flood fixtures) positioned at varied heights and aimed to layer illumination. Rather than flooding an entire area with uniform brightness, landscape lighting creates depth, highlights specific features, and guides movement through outdoor spaces.
Key differences:
| Aspect | Flood Lights | Landscape Lighting |
|---|---|---|
| Primary purpose | Security and broad area coverage | Aesthetics, wayfinding, accent |
| Mounting height | 8-15 feet | Ground to 20+ feet (varied) |
| Fixture count | 2-6 per property | 8-30+ per property |
| Design approach | Functional coverage zones | Layered, feature-focused |
| Voltage | Usually 120V | Usually 12V |
Low-Voltage Landscape Lighting Advantages
Low-voltage systems (12V) offer safer installation, more design flexibility, and easier modification than 120V flood lights. At 12V, they:
- Don't require electrical permits in many jurisdictions
- Present minimal shock hazard during installation and maintenance
- Allow more flexible wire routing through landscaping
- Integrate more naturally with smaller, less obtrusive fixture housings
Low-voltage fixtures also support nuanced layering. Designers can place many smaller fixtures to build depth, light pathways, uplight trees, and accent garden features—often with less total wattage than three or four traditional flood lights.
In practice, a 20-fixture low-voltage LED system might draw only 200–300 watts total. That is comparable to two or three 100W flood lights, with far more control over where light lands and how the property looks at night.
When to Choose Each Approach
Flood lights alone work for:
- Purely functional security needs (warehouse-style coverage)
- Temporary lighting requirements
- Large open areas with no landscape features to highlight
- Extremely tight budgets with minimal aesthetic goals
Best fit for most homes:
A low-voltage landscape design that includes wider flood or wash fixtures for open zones, plus path, accent, and uplighting for features, covers security needs without the harsh look of house-mounted 120V floods. You still use coverage math for adequate light levels, but the goal is to enhance the property—not only to light it up.
For homes in Bethesda, Potomac, Chevy Chase, and across the DC metro area—where mature landscaping and distinctive architecture reward careful design—a layered low-voltage system usually outperforms flood lights alone on both safety and curb appeal.
When to Consult a Professional Designer
Complex Properties and Multiple Objectives
Properties with mixed outdoor zones (pool, patio, gardens, pathways, and architectural features) rarely fit a single flood-light coverage formula. A designer maps how those zones connect, then sets coverage for safety and use without washing out the rest of the property.
Custom design sets fixture placement, beam angle, and brightness per area instead of one generic lumen chart. A professional weighs:
- Traffic flow and wayfinding through outdoor spaces
- Focal points worth emphasis (specimen trees, water features, facade details)
- Problem areas requiring security attention
- Seasonal changes and how coverage varies throughout the year
- Energy efficiency and long-term operating costs
- Local codes and dark-sky considerations
On DC metro lots with mature trees or historic architecture, that planning keeps coverage even and glare in check while still delivering nighttime curb appeal.
The Design-First Approach
Professional landscape lighting designers visit the property, note real mounting heights and obstructions, and build a plan around measured coverage needs. Footcandle targets and beam spread come first; layering and accent work come after the functional layout holds up.
Landscape Lighting Designers Plus has used this design-first approach in the DC metro area since 2003. Owner Craig Collins designs every project himself (no project managers or sales reps) and works only with low-voltage landscape fixtures, not 120V house-mounted floods.
That keeps systems safer and easier to aim, so path, facade, and yard coverage stay controlled instead of over-bright.
Work starts with a free design consultation: walk the property, define goals, and draft a custom lighting plan tied to actual coverage needs.
On larger or complex lots, Craig’s site walk flags focal points, tree canopy that blocks light, and a sequence of light levels from the street to the front door.
Frequently Asked Questions
How much area does a 100 watt LED flood light cover?
A 100W LED flood light (typically 10,000–12,000 lumens) covers about 1,000–2,000 square feet, depending on mounting height, beam angle, and brightness needs. Ambient levels (5–10 lux) reach the upper end; security levels (20–50 lux) cover less area.
What factors affect LED flood light coverage area?
Coverage depends on lumens, beam angle, mounting height, obstacles, surface reflectivity, and fixture optics. Intended use matters too: security lighting needs 3–4× more intensity than ambient landscape lighting, which shrinks usable coverage.
How do I calculate flood light coverage for my yard?
Measure length × width for total square footage, then match brightness to use: pathways 5–10 lux, driveways and security 20–50 lux, activity areas 50–100 lux. Check manufacturer lumens and beam angle, plan 10–15% fixture overlap, and use photometry data or a designer for accuracy.
What's the difference between flood lights and landscape lighting?
Flood lights deliver broad coverage from higher mounts for security and function. Landscape lighting layers path lights, uplights, downlights, and accents at varied heights for beauty and usability. Most homes do best combining selective floods for security with low-voltage landscape fixtures for aesthetics.
Do I need flood lights or spot lights for my driveway?
Flood lights with 60–90° beams work best for driveways because they cover the full width; mount them along the edges or garage sides. Spot lights (25–40°) suit gates, address markers, or pillars. For a typical 12-foot driveway, plan 2–3 flood lights spaced 25–30 feet apart.
How many flood lights do I need for home security?
Most homes need 2–4 flood lights covering the front entry, driveway approach, backyard access, and side yards. Placement matters more than count: gaps create dark approach paths. Lots larger than 1/2 acre or with complex layouts may need 6–8 fixtures for full perimeter coverage.
Want professional help designing landscape lighting that balances security coverage with elegant aesthetics? Landscape Lighting Designers Plus serves homeowners throughout Bethesda, Potomac, Chevy Chase, and the DC metro area. Craig Collins personally designs every project with over 21 years of specialized experience. Schedule your complimentary consultation at (888) 582-8845 or contact@landscapelightingnow.com.
