Key Takeaways
- Low-voltage (12V) LED systems are safer for DIY than 120V and use far less energy
- Plan first: size the transformer, map layered fixture locations, and account for voltage drop
- Install in order: design → transformer → cable → fixtures → test and aim
- Test at night and reposition fixtures for balanced light without overlighting
Understanding Low-Voltage vs. Line-Voltage Outdoor Lighting
Outdoor lighting runs on one of two platforms: low-voltage (typically 12V) or line-voltage (120V household current). That choice drives safety, permits, cable layout, and how easily you can expand the system later.
Line-voltage (120V) still shows up on some house-mounted floods and older installs. It delivers full household power to the fixture, which means:
- Higher shock hazard around wet soil, rain, and irrigation
- Electrical permits and protected junctions in most jurisdictions
- Less flexibility when you want to move or add lights later
Low-voltage (12V) is the residential landscape standard. A transformer steps 120V down to 12V near a GFCI outlet, so the cable in your yard stays at a safer operating level. Modern LV fixtures use integrated LEDs—and according to the U.S. Department of Energy, LED fixtures use at least 75% less energy than incandescent lamps and last up to 25 times longer.
Why low-voltage is more forgiving for DIY and future changes:
- Lower shock risk: 12V landscape systems operating at 15V AC or less present no electric-shock risk under wet conditions per UL evaluation standards
- No electrical permit in most jurisdictions for the low-voltage side (verify locally)
- Cable you can cut and splice without junction boxes
- Straightforward adjustments when you add path lights or re-aim spots

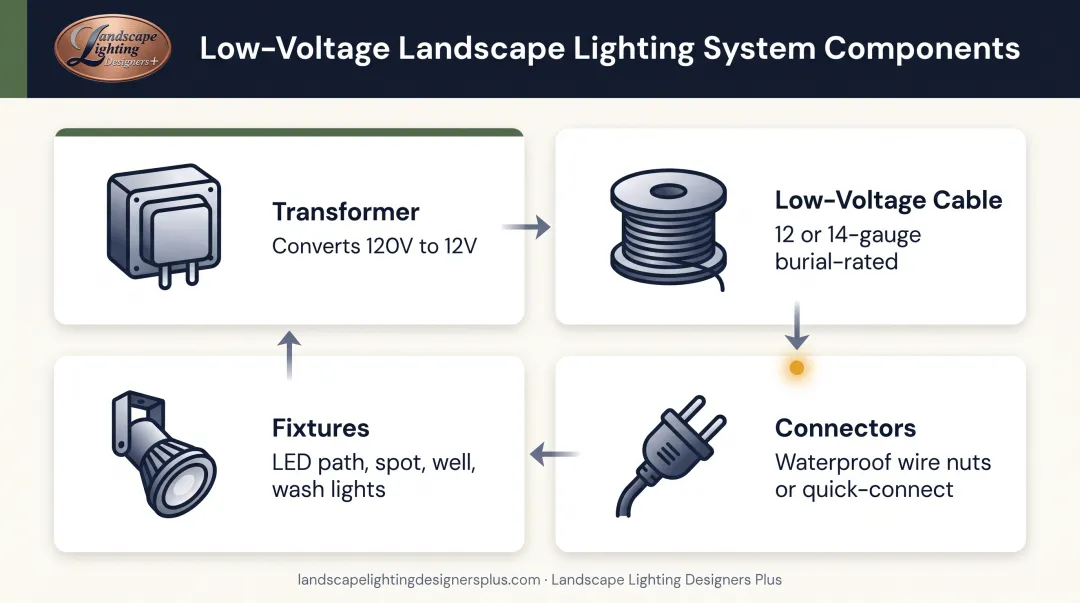

Core System Components
Every low-voltage landscape lighting system includes four essential elements:
- Transformer – Converts 120V household power to 12V, mounted near a GFCI outlet
- Low-voltage cable – Typically 12-gauge or 14-gauge wire rated for direct burial
- Fixtures – Path lights, spotlights, well lights, or wash lights with integrated LED modules
- Connectors – Waterproof wire nuts or quick-connect fittings for secure splices
Transformer Capacity and Sizing
Proper transformer sizing prevents dim lights at the end of cable runs. Calculate total wattage by adding every planned fixture's VA (volt-ampere) rating, then add a 20% buffer for future expansion. Common residential transformers range from 150W to 600W.
Example calculation:
- Twelve 3-watt LED fixtures = 36 watts
- 36 watts × 1.2 buffer = 43 watts minimum
- A 150W transformer provides ample capacity with room to grow
Voltage Drop Limitations
Low-voltage systems have maximum cable run lengths before voltage drop dims fixtures. Most residential runs should stay under 100–150 feet depending on wire gauge and connected load. Kichler recommends beginning with 12-gauge cable and keeping more than 10V at the last fixture. In the field, aim for readings between 9–15V across every fixture on the run.
Planning Your Landscape Lighting Design
Installation success depends entirely on design decisions made before purchasing a single fixture. Professional results require identifying focal points, defining safety-critical pathways, and determining the mood you want to create in outdoor living spaces.

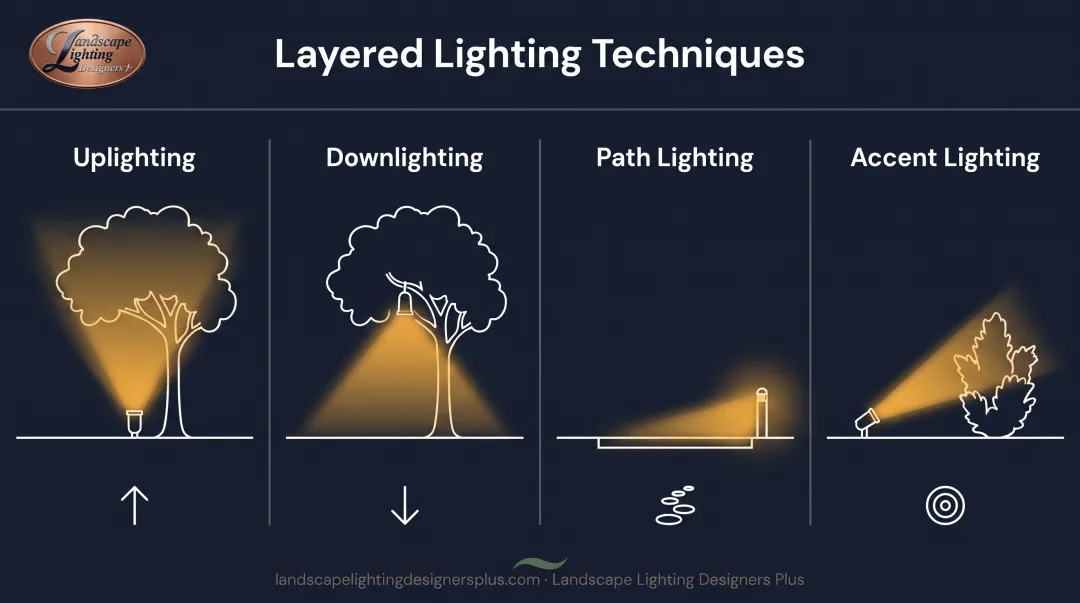

The Principle of Layered Lighting
Combine multiple techniques to create depth rather than flat, uniform illumination:
- Uplighting – Illuminate trees, walls, and architectural features from below
- Downlighting – Mount fixtures in trees or on structures to cast light downward across patios and walkways
- Path lighting – Ground-level fixtures guide movement and define edges
- Accent lighting – Focused beams highlight specimen plants, water features, or sculptures
Craig Collins, owner of Landscape Lighting Designers Plus with over 21 years of DC metro area experience, treats low-voltage landscape lighting as an art form. He emphasizes balance, subtlety, and careful fixture selection to avoid the most common DIY mistake: overlighting.
Fixture Selection and Placement
| Application | Fixture Type | Typical Output | Purpose |
|---|---|---|---|
| Pathways | Path lights | 85–150 lumens | Wayfinding, safety, edges |
| Tree uplighting | Spotlights | 3–7 watts LED | Texture, height, drama |
| Ground accents | Well lights | 3–5 watts LED | Unobtrusive uplighting |
| Wall washing | Wash lights | 150–600 lumens | Broad, even coverage |
Once fixtures match each application, use these spacing guidelines:
- Path lights: Space 10–14 feet apart for continuous coverage without overlighting
- Spotlights: Position to graze surfaces at angles that create shadow and texture, not aimed straight up
- Fixture count: Start with fewer fixtures than you think you need; add more after a nighttime walkthrough
After fixtures and spacing are set, document the layout. Sketch locations on a property plan or mark positions on printed photos. Note cable runs from the transformer to each fixture zone and total cable length so you buy the right amount the first time.
Budget planning is easier with real numbers—our landscape lighting cost guide lays out typical DC-area pricing.
Tools, Materials, and Safety Preparation
Gather the right gear and lock in safety steps before you cut cable or break ground. A short prep pass here prevents dim runs, failed connections, and code headaches later.
Essential Tools and Materials
- Low-voltage transformer (sized to your calculated load plus 20%)
- Low-voltage cable (12-gauge for runs over 50 feet; 14-gauge is fine for shorter runs)
- Fixtures for each job (path, spot, well, and hardscape lights as needed)
- Waterproof wire connectors or quick-connect fittings
- Cable staples or landscape stakes
- Trenching spade or edger
- Voltage tester or multimeter
- Wire strippers
- Silicone sealant for fixture connections
Critical Safety Considerations
Before starting work:
- Call 811 before any trenching or staking and wait until utilities are marked
- Turn off power at the breaker before connecting the transformer to 120V
- Use only GFCI-protected outlets for the transformer
- Mount the transformer at least 12 inches above grade and 10 feet from pools or ponds
- Confirm every fixture is marked “Wet Rated”
- Check local electrical codes for transformer mounting, setbacks, and permit rules
Most areas do not require a permit for low-voltage landscape lighting, but transformer hookup rules still vary. For example, Ringwood, New Jersey requires a licensed electrical contractor and permit for landscape wiring over 10V, except listed DIY kits with factory plug-in transformers. Always confirm requirements with your local authority before you start.

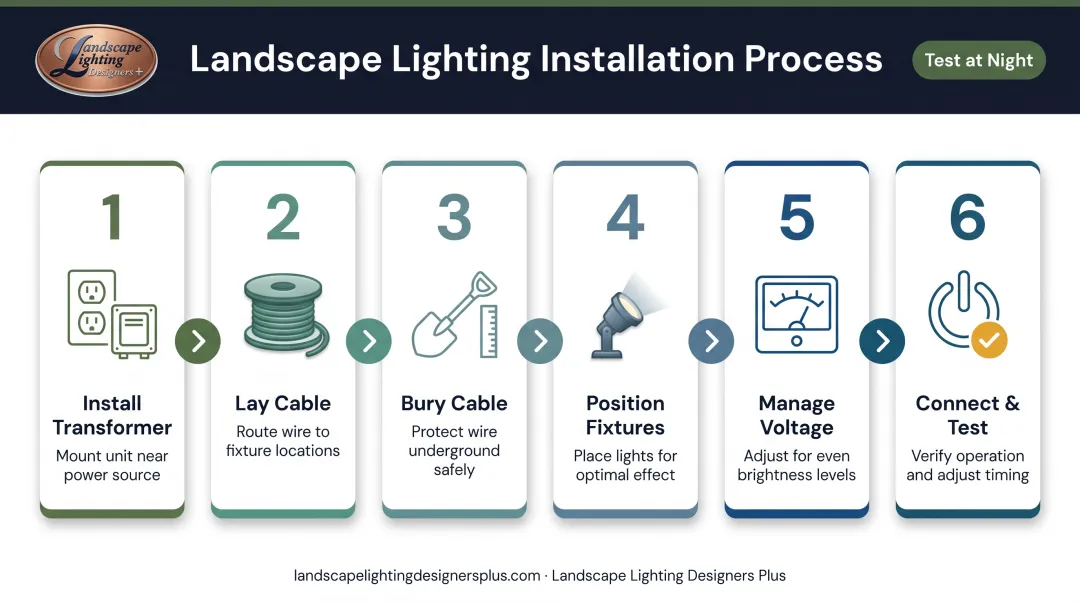

Step-by-Step Installation Guide
1. Install the Transformer
Mount your transformer near a GFCI-protected outdoor outlet, or have a licensed electrician hardwire it to a dedicated circuit. Keep it at least 12 inches above grade and sheltered from direct rain when possible. Choose a spot you can reach easily for timer adjustments and maintenance.
For hardwired installations in most jurisdictions, hire a licensed electrician to make the 120V connection. Homeowners can typically install plug-in transformers themselves.
2. Lay Out and Connect Low-Voltage Cable
Run cable from the transformer along planned routes to each fixture location. Leave 6–12 inches of extra length at each fixture position for connections and future adjustments. Avoid crossing irrigation lines or areas where deep digging may occur.
Cable routing best practices:
- Keep runs under 100 feet when possible
- For longer distances, use heavier 10-gauge wire or split the load across multiple transformer outputs
- Document your cable paths for future reference
3. Bury the Cable
Low-voltage cable doesn't need the 12–18 inch burial depth of line-voltage wiring. Still, bury it 2–4 inches deep to protect against lawn equipment, UV exposure, and accidental damage. Use a trenching spade to cut a narrow slit, lay the cable, and press the soil back firmly.
For areas where future digging is likely (near garden beds or edging), consider running cable through protective PVC conduit buried 6 inches deep.
4. Position and Connect Fixtures
Place each fixture in its planned location. Make wire connections using the manufacturer's recommended method. Many modern fixtures use quick-connect systems that pierce the cable insulation automatically.
Critical connection requirements:
- Use gel-filled or silicone-filled connectors rated for direct burial
- Never use standard electrical tape as waterproofing
- Ensure connections are tight and fully sealed
- Secure fixtures firmly in soil or on mounting surfaces
5. Manage Voltage Drop
For cable runs exceeding 50–60 feet, voltage drop becomes measurable. Use this voltage drop formula: Voltage drop = (2 × cable length × total VA) ÷ cable constant.
Corrective options if voltage drop is excessive:
- Upgrade to heavier gauge wire (10-gauge instead of 12-gauge)
- Use a higher transformer tap voltage
- Reduce the number of fixtures on that run
- Split the load across multiple transformer outputs
6. Connect Transformer and Power Up
Attach the cable leads to the transformer output terminals, matching polarity if your LED fixtures require it. Set the timer to "ON" for initial testing, then restore power at the breaker or plug in the transformer.
Walk the property and confirm every fixture lights as expected.
Testing, Troubleshooting, and Professional Results
Post-Installation Testing
Walk through your property after dark and check:
- All fixtures illuminate – No dark spots or non-functioning lights
- Consistent brightness – Dimmer fixtures at the end of runs indicate voltage drop
- Proper aim – Uplights graze surfaces at an angle; path lights point down to cut glare
- Balanced coverage – No overly bright areas or harsh shadows
Common Installation Problems and Solutions
| Problem | Likely Cause | Solution |
|---|---|---|
| Fixtures don't illuminate | Poor connection, no transformer output | Check all connections; test transformer with multimeter |
| Inconsistent brightness | Voltage drop on long runs | Shorten runs, upgrade to heavier gauge wire, or use higher tap |
| Excessive glare | Fixtures aimed incorrectly or too bright | Reposition fixtures, add shields, or use lower-wattage bulbs |
| Corroded connections | Non-waterproof splices | Replace with gel-filled or silicone-filled burial-rated connectors |
Achieving Professional-Quality Results
Design for subtlety, not maximum brightness. Overlighting is the most common DIY mistake. Good landscape lighting builds depth and draws the eye to a few focal points. It should not turn your yard into a stadium.
Plan for seasonal change. Trees grow, gardens fill in, and beds get reworked. Leave spare cable at each fixture so you can shift aim or spacing later.
Automate with timers or smart controls. Match schedules to how you use the space, and let the system track sunset times through the year.
Larger systems with layered effects often benefit from a designer who knows how light meets architecture and plantings. Landscape Lighting Designers Plus has served DC metro homeowners for over 21 years with custom low-voltage work built around balance and restraint.
Owner Craig Collins designs each project himself and works only with 12V landscape fixtures, so the result supports the property instead of overpowering it.
For visual reference, our portfolio of completed projects applies these techniques to DC-area houses of very different styles.
Frequently Asked Questions
Do I need an electrician to install outdoor lights?
Low-voltage landscape lighting systems (12V) typically don't require an electrician for fixture and cable installation. However, transformer connection to 120V power should be done by a licensed electrician if hardwiring is needed, versus simply plugging into an existing GFCI outlet.
How much does it cost to install exterior lighting?
Basic six-fixture path kits start around $230–$500. Full systems with 15–20+ quality fixtures often run $1,500–$3,000+ in materials alone; professional installation adds design, voltage-drop planning, and labor.
What is the difference between low-voltage and line-voltage outdoor lighting?
Low-voltage systems operate at 12V or 24V (stepped down from 120V via transformer) and are safer, more energy-efficient, and easier to install for landscape applications. Line-voltage systems operate at 120V household current and are typically reserved for house-mounted fixtures like porch lights or security floodlights.
How do I choose the right transformer size for landscape lighting?
Calculate total wattage of all planned fixtures, add a 20% capacity buffer for future expansion, and select a transformer rated at or above that total. Example: twelve 3-watt LED fixtures = 36 watts × 1.2 buffer = 43 watts minimum, so a 150W transformer provides ample capacity.
Can I install landscape lighting myself or should I hire a professional?
Basic path lighting and small accent projects are manageable DIY jobs for handy homeowners. Hire a pro for multi-zone systems, long cable runs, or complex architecture when you want balanced, layered light without overlighting the property.
How deep should landscape lighting wire be buried?
Bury low-voltage landscape cable 2–4 inches deep to shield it from lawn equipment and UV while keeping it accessible for changes. Line-voltage wiring needs 12–18 inches per code. Use protective conduit about 6 inches deep where future digging is likely.
