Introduction
Permanent outdoor lighting is far from a one-size-fits-all project. Complexity ranges from straightforward low-voltage landscape lighting (path lights, spotlights on trees) to more involved line-voltage architectural work (LED strips along eaves and soffits).
What separates a simple install from a challenging one is voltage type, transformer needs, burial depth, and code compliance.
Who can take this on? Homeowners with basic electrical skills can often handle low-voltage landscape systems. Line-voltage work usually needs a licensed electrician or an experienced landscape lighting specialist who understands design, voltage drop, and local permits.
Done wrong, the problems show up fast:
- Undersized transformers cause dimming or failure
- Shallow burial leaves cable open to shovel and mower damage
- Poor waterproofing creates shorts
- Overlighting kills nighttime ambiance and wastes energy
This guide covers DIY-friendly low-voltage landscape lighting and professional permanent installations. Use it to pick the right approach for your project and sidestep the install mistakes that drive up cost and frustration.
Key Takeaways
- Permanent outdoor lighting splits into 12V landscape systems and 120V architectural fixtures
- Size transformers correctly, meet 6–12 inch burial depth, and calculate voltage drop
- 120V work needs GFCI protection, outdoor-rated boxes, conduit, and often permits
- Spec IP65+ weatherproof fixtures, then check voltage and brightness after dark
- A lighting designer improves layout quality, code compliance, and long-term performance
Understanding Permanent Outdoor Lighting Options
System Types and Design Goals
Permanent outdoor lighting falls into three broad categories, each with distinct voltage requirements and design objectives:
Low-voltage landscape lighting uses 12V systems powered by transformers. These systems drive path lights, spotlights, and well lights that sit naturally among gardens, trees, and hardscape. Design goals focus on layering ambient, task, and accent light so architecture and pathways read clearly without washing out the property.
Line-voltage architectural lighting operates at 120V and typically includes LED strips for eaves, soffits, and rooflines. The aim is even linear light along structural edges, with brighter output for larger surfaces.
Permanent festive lighting prioritizes color-changing control and seasonal programming for year-round displays.
Choosing Low-Voltage vs. Line-Voltage
Low-voltage systems are the better fit for most residential landscapes. Advantages include:
- Safer operation with reduced shock risk
- Simpler permitting (often none required)
- More tolerance for voltage drop on short runs
- Clean integration with plantings and hardscape
Technavio forecasts the US outdoor landscape-lighting market to grow by $132.6M during 2024-2028, reflecting strong residential demand for these systems.
Line-voltage installations deliver brighter output across large areas but need electrician-level expertise. Plan on GFCI protection, outdoor-rated components, and full compliance with local codes and inspection. NEC 2023 Article 210.8(F) covers GFCI requirements for specified dwelling outdoor outlets, though the lighting-outlet exception needs careful interpretation.

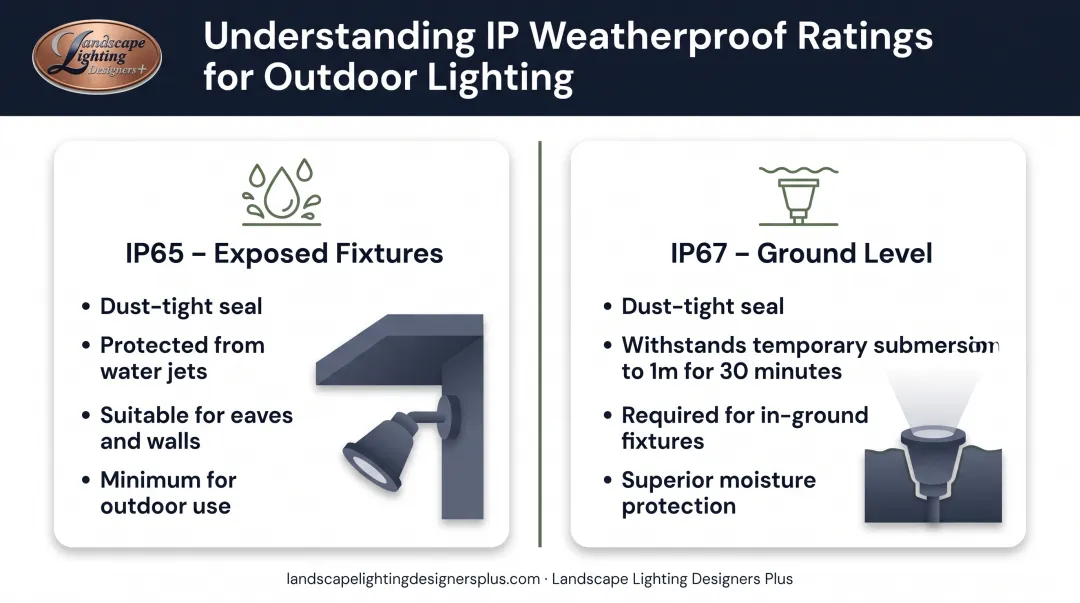

Weatherproofing Standards: IP Ratings
Every exposed fixture needs real weather protection. IP65 is the minimum for exposed outdoor fixtures (rain and splashing). IP67 is the right target for ground-level or in-ground installs, covering temporary submersion up to 1 meter for 30 minutes.
UV-resistant housings matter too. They limit fading and cracking over years of direct sun.
Prerequisites and Safety Considerations
Site Readiness
Before you buy fixtures or pull cable, confirm the site is ready:
- Measure installation areas (eaves, pathways, garden beds)
- Confirm power source locations and transformer mounting points
- Map low-voltage cable routes away from irrigation lines and tree roots
- Check that mounting surfaces are clean, flat, and structurally sound
Electrical Safety Requirements
Low-voltage (12V) systems should use UL-listed transformers with built-in circuit protection. UL 1838 is the active standard for low-voltage landscape lighting systems.
Line-voltage (120V) work is a different category. It needs GFCI-protected circuits, outdoor-rated wet-location boxes and fittings, and burial/conduit practices that meet the NEC—including Table 300.5 burial depths and NEC 314.15. Hire a licensed electrician for any new 120V circuits or wet-location wiring.
Non-Negotiables
Do not proceed if:
- Mounting surfaces are unstable (rotted wood, crumbling stucco)
- Your circuit lacks sufficient capacity for the additional load
- Any line-voltage circuit involved lacks GFCI protection
- Required permits have not been approved
Permit rules vary by jurisdiction. Low-voltage (12V) landscape lighting often needs no permit because it operates below 30V. Line-voltage (120V) work usually needs electrical permits and inspections—confirm with your local building department before you start.
Step-by-Step Installation Process
Most permanent outdoor lighting for homes is low-voltage (12V) landscape lighting. The workflow is straightforward: design and layout → fixture and transformer selection → power prep → mounting and cable runs → connection and testing. Skip a stage, and you invite dim fixtures, early failures, or safety problems.
Planning and Layout Design
Research and sketch your lighting design:
- Identify focal points – trees, architectural features, pathways
- Determine fixture types and quantities – path lights, spotlights, uplights, downlights
- Calculate total wattage to size transformers (low-voltage) or verify circuit capacity (line-voltage)
- Mark cable routes to minimize burial distance and avoid obstacles

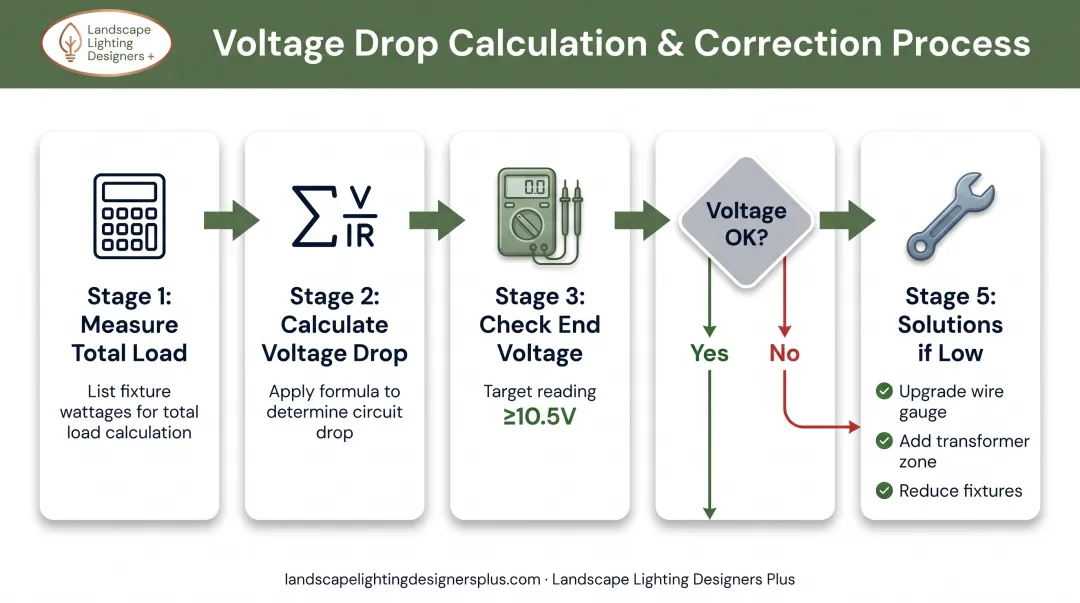

Calculate voltage drop for low-voltage systems using Kichler's method:
Voltage drop = (2 × cable length in feet × total VA on run) / cable constant
End-fixture voltage = transformer tap voltage - voltage drop
Keep end-of-run voltage at or above 10.5V so fixtures stay inside the typical 9–15V operating range. If voltage falls below 10.5V, split the load into multiple transformer zones or step up to larger gauge wire. For example, 12-gauge cable supports roughly 200W over 100 feet.
Preparing the Power Source and Transformer
For low-voltage systems:
- Mount the transformer near the power source (within 6 feet of a GFCI-protected outdoor outlet)
- Ensure the transformer is weatherproof (IP65+ rated)
- Secure it to a wall or post at least 12 inches above ground
- Size the transformer so total fixture load stays near 80% of rated capacity
For line-voltage (120V) systems:
Line-voltage work is not a DIY landscape-lighting task. Hire a licensed electrician for GFCI-protected circuits, outdoor-rated boxes, conduit, and code-compliant connections before any fixtures go up.
Mounting Fixtures and Running Cable
Mount fixtures securely:
- Clean mounting surfaces (remove dirt, debris, moisture)
- Drill pilot holes for screws in wood or masonry
- Apply silicone sealant around screw edges to prevent water intrusion
- Space fixtures per your plan—path lights often 10–14 feet apart; place accent lights closer
Bury low-voltage cable at code-compliant depths:
- Dig trenches 6–12 inches deep depending on local requirements
- Lay cable in a smooth path without sharp bends (kinks reduce current flow)
- Use direct-burial-rated cable (not standard lamp cord)
- Backfill trenches carefully to avoid damaging the wire
For architectural LED strips:
- Clean the mounting surface (eaves, soffits) with alcohol
- Space mounting clips every 12–18 inches
- Snap LED strips into channels for UV protection and heat dissipation
- Route power cables through conduit to the junction box
Connecting and Wiring the System
For low-voltage fixtures:
- Use waterproof wire connectors (twist-lock or compression-style)
- Match wire polarity (positive to positive, negative to negative)
- Secure all connections inside junction boxes or sealed enclosures
- Test each zone before final burial
For line-voltage systems:
Leave 120V splicing, polarity checks, and weatherproof terminations to the licensed electrician handling that circuit. Do not energize until those connections are complete and inspected as required locally.
Final Testing and Adjustment
Power on the system and test all fixtures:
- Verify each light illuminates at expected brightness
- Check for flickering (indicates loose connections or voltage drop)
- Adjust fixture angles to eliminate glare and highlight intended features
- Test timers, dimmers, or smart controls if installed
After the initial check, walk the property after dark and fine-tune aim and brightness so paths stay safe and focal points read clearly without glare.
Post-Installation Validation and Testing
A quick validation pass after install confirms the system looks right, stays dry, and holds voltage under real load.
Nighttime Testing
Wait until full darkness to judge brightness. Then walk the property and check:
- Uniform light across each zone (dim spots often mean voltage drop)
- Fixture aim on the intended focal points—not into neighbors' windows or straight up into the sky
- Glare or harsh shadows that need a small aim or shield tweak
Inspect Connections and Mounting Points
Before you close out the job, confirm the hardware will hold up outdoors:
- Tighten loose screws and wire connectors
- Verify waterproof seals—no moisture inside junction boxes
- Protect buried cable from foot traffic and lawn equipment
- Confirm transformers and controllers are secure and weatherproofed
Document Voltage Readings
Use a multimeter at the furthest fixture in each low-voltage zone. Readings should stay within about 10% of transformer output (for example, 10.8V–12V on a 12V system).
Readings below 10.5V signal excessive voltage drop. Fix that with larger cable or by rebalancing the zone—not by ignoring a weak end-of-run fixture.
Common Installation Problems and Solutions
Flickering or Dim Lights
Problem: Lights flicker, appear dim, or fail to illuminate fully.
Likely causes:
- Loose wire connections
- Undersized transformer (total fixture wattage exceeds transformer capacity)
- Excessive voltage drop due to long cable runs or undersized wire gauge
- Corroded connectors
Fix: Tighten all wire connections and test again. If dimming persists, measure voltage at the furthest fixture. If it reads below 10.5V, try one of these:
- Upgrade to a larger wire gauge
- Shorten cable runs by adding a second transformer zone
- Reduce the number of fixtures per zone
Water Intrusion and Corrosion
Problem: Moisture inside junction boxes, corroded wire connections, or fixture malfunction after rain.
Likely causes:
- Improper sealing of wire connections
- Junction boxes lacking weatherproof gaskets
- Fixtures with insufficient IP rating for the installation environment
Fix: Non-waterproof splices and poor cable choices are among the most common 12V failure points, per FX Luminaire’s troubleshooting guidance. Restore affected connections as follows:
- Disassemble the joint and dry it thoroughly
- Apply dielectric grease to the connectors
- Swap standard wire nuts for waterproof compression connectors
- Seal junction box seams with silicone
- Confirm every fixture is rated IP65 or higher

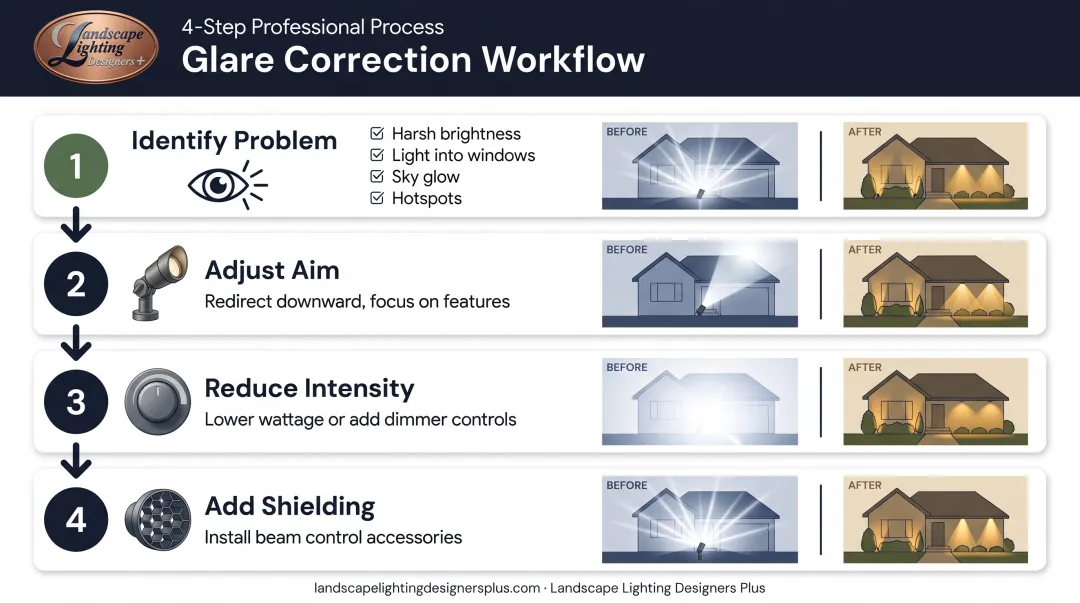

Overlighting and Glare
Problem: Outdoor space appears harshly lit, glare shines into windows or neighboring properties, or lighting lacks subtlety and balance.
Likely causes:
- Fixtures aimed incorrectly (upward or outward instead of downward/focused)
- Excessive fixture wattage or brightness
- Poor spacing creating hotspots instead of even illumination
Fix: DarkSky International notes that 20%–50% of residential outdoor light can go straight into the sky when fixtures are poorly shielded. Correct glare and harshness with these adjustments:
- Aim fixtures downward or at specific features, not into eyes or windows
- Lower brightness with dimmers or reduced-wattage lamps
- Add shields or louvers to control beam direction
- Favor layered accent and task light over flooding the whole yard
Less is more: subtle balance reads better at night than maximum brightness.
When to Hire a Professional Landscape Lighting Designer
Hire a professional when the project goes beyond a few path lights. Design help pays off for:
- Multiple lighting types on one property (path, accent, and architectural)
- Mature landscaping or distinctive architecture that needs layered light, not glare
- Systems that require voltage-drop calculations, transformer zoning, or code-compliant burial depths
A low-voltage specialist plans ambient, task, and accent light so the yard isn’t overlit. They size transformers to limit voltage drop, follow local codes and permit rules, and use installation methods that reduce rework later.
Owner-operated designers often work with you directly—no project manager or sales handoff—so the plan matches what you actually want. Regional experience also matters: fixture choices and aiming techniques that hold up in local climate and architecture.
At Landscape Lighting Designers Plus, owner Craig Collins designs every project himself and uses only 12V landscape fixtures, not 120V house-mounted lights. That focus is especially useful for historic and architecturally distinctive homes in the DC metro area, where subtle layering beats bright wash lighting.
Professional installation typically ranges from $3,000–$6,000 for most residential projects, with low-voltage landscape lighting averaging $3,500–$4,000. Complex whole-property designs can exceed $10,000. DIY can cut labor cost, but only if you have the time and skill to plan wire runs, loads, and aiming without creating safety or performance problems.
Photographs settle this faster than descriptions—our lighting project gallery shows how these effects look after dark on finished homes.
Frequently Asked Questions
What is the difference between permanent outdoor lighting and landscape lighting?
Permanent outdoor lighting is any fixed exterior system—architectural LEDs, security floods, or landscape lights. Landscape lighting is the low-voltage (typically 12V) subset built to highlight pathways, gardens, trees, and architecture with subtle design intent.
How much does professional installation of permanent outdoor lighting cost?
Professional installation typically runs $3,000–$6,000 based on property size, fixture count, and complexity. Low-voltage landscape lighting for a typical home averages $3,500–$4,000; larger whole-property designs can exceed $10,000.
Do I need a permit to install permanent outdoor lighting?
Permit rules vary by location. Low-voltage (12V) landscape lighting often needs no permit because it operates below 30V. Line-voltage (120V) work usually requires electrical permits and inspections—always confirm with your local building department first.
What is the advantage of low-voltage landscape lighting over line-voltage systems?
Low-voltage (12V) systems are safer, often permit-free, and easier to place around landscape features. Line-voltage (120V) can light large areas more brightly but needs GFCI protection, conduit, and electrician-level work. For most homes, low-voltage offers the best mix of safety and design flexibility.
How long do permanent outdoor lights last?
LED-based permanent outdoor lights typically last 25,000–50,000 hours (10–20+ years of nightly use). Lifespan hinges on fixture quality, IP65+ weatherproofing, stable voltage, and exposure to heat, moisture, and UV. Quality fixtures with a solid install and light upkeep can last decades.
Can I install permanent outdoor lighting myself, or should I hire a professional?
Low-voltage landscape lighting is often DIY-friendly: transformers plug into outdoor outlets, and 12V wiring is relatively safe. Line-voltage (120V) work usually needs a licensed electrician. Complex layouts, multiple zones, or voltage-drop planning are better handled by a landscape lighting specialist.
