How to Install Deck Lighting

Installing deck lighting might seem straightforward, but many homeowners find themselves troubleshooting dim lights, moisture damage, or uneven illumination months after completion. The difference between a lighting system that looks beautiful and one that requires constant adjustment comes down to careful planning, precise wire management, and understanding a few critical electrical basics.

Low-voltage (12V) deck lighting is manageable as a DIY project for handy homeowners. You won't need a licensed electrician, and the inherent safety of 12V systems makes them forgiving. However, complexity scales with deck size, number of fixtures, and existing structure constraints. Common mistakes—using undersized wire gauge, exposing connections to moisture, overloading transformers, or placing fixtures without considering visual balance—lead to flickering lights, premature failures, and harsh glare that overwhelms rather than enhances your outdoor space.

This guide covers the complete installation of low-voltage deck lighting systems, from planning and equipment selection through step-by-step installation and validation. We'll share insights from professional installers on avoiding the pitfalls that turn a weekend project into weeks of troubleshooting.

Key Takeaways

• Size the transformer correctly, choose the right wire gauge, and use waterproof connections
• Start from a GFCI-protected outlet with accurate measurements and a plan for fixture locations and wire routes
• Test each fixture as you connect it so problems surface before wiring is hidden
• Confirm at least 10.8V at the farthest fixture and moisture-protect every connection before finishing

Installation Guide for Deck Lighting

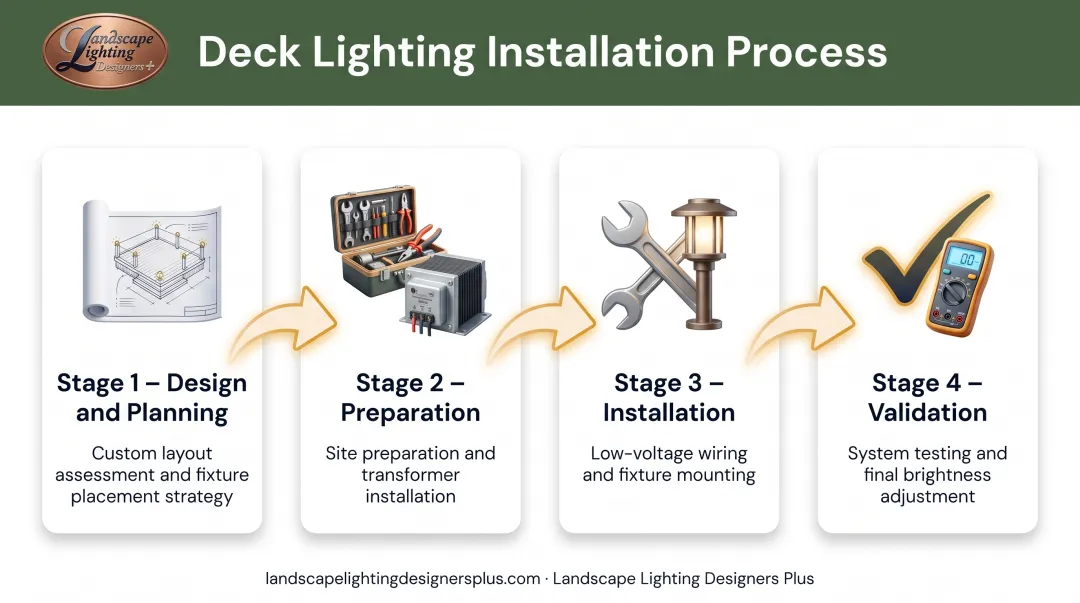

Installing deck lighting follows four stages: design and planning, preparation, installation, and validation. Rushing or skipping steps often leads to voltage drop problems, failed connections, or poor lighting effects that require costly rework.

The work breaks down into this sequence:

1. Design and planning: determine fixture types, quantities, and layout
2. Preparation: gather tools, size the transformer, and map wire runs
3. Installation: mount the transformer, run wire, and connect fixtures
4. Validation: test all lights, check for issues, and make adjustments

A typical residential deck lighting installation takes 6-12 hours over one or two days, depending on deck size and fixture count. You'll need moderate DIY skills: comfort with basic electrical concepts, precise drilling, and patience for detailed wire management.

For decks in the DC metro area with complex architecture—historic homes, multi-level designs—professional consultation can save time and keep the design balanced so it enhances rather than overwhelms the space.

Prerequisites and Safety Considerations

Your deck structure must be complete and stable, including all posts, railings, and decking boards where lights will be mounted. You need at least one GFCI-protected outdoor electrical outlet (with weatherproof "bubble" cover) located within 50 feet of the deck perimeter.

The outlet circuit must have available capacity for the lighting load, typically 150-300 watts total. Confirm local building codes don't require permits for low-voltage lighting installation; requirements vary by jurisdiction.

Compatibility and System Planning

All fixtures must operate on the same voltage type. Never mix 12V AC and 12V DC fixtures on the same transformer, as this causes component failure and voids warranties. Choose one manufacturer's ecosystem when possible (same brand transformer and fixtures) to ensure compatibility.

Verify that your selected fixtures match your deck's material and style. Composite decking may require specific mounting hardware, and post cap lights must fit your post dimensions.

Safety Requirements

Low-voltage systems (12V) are safer than line-voltage (120V) installations and pose minimal shock risk, but still require GFCI protection on the source outlet. Follow these safety rules:

• Never use standard extension cords between outlet and transformer; use only manufacturer-approved extension cables after the transformer
• All wire connections must use waterproof connectors or silicone-filled wire nuts rated for outdoor use
• Avoid routing wires where they can be pinched, cut, or damaged by deck boards, fasteners, or foot traffic
• Never install during wet weather or when moisture is present in connection areas

When to Stop and Call a Professional

Do not proceed if:

• You lack a GFCI-protected outlet or cannot install one
• You're uncomfortable working with basic electrical concepts or drilling into deck structures
• Your design requires wire runs over 300 feet, multiple transformers, or integration with home automation systems

For complex designs, consult a professional low-voltage lighting specialist to avoid voltage drop and system design issues. DC metro homeowners can work with Landscape Lighting Designers Plus for custom deck lighting design and installation.

Tools and Parts Required

Essential Tools

You'll need these tools for a standard deck lighting installation:

• Drill/driver with assorted bits (including Forstner bits for recessed lights)
• Wire strippers
• Voltage tester or multimeter
• Measuring tape and pencil
• Cable-safe plastic fastening clips (never standard metal staples that can pierce wire insulation)
• Screwdrivers
• Headlamp or work light for visibility under deck

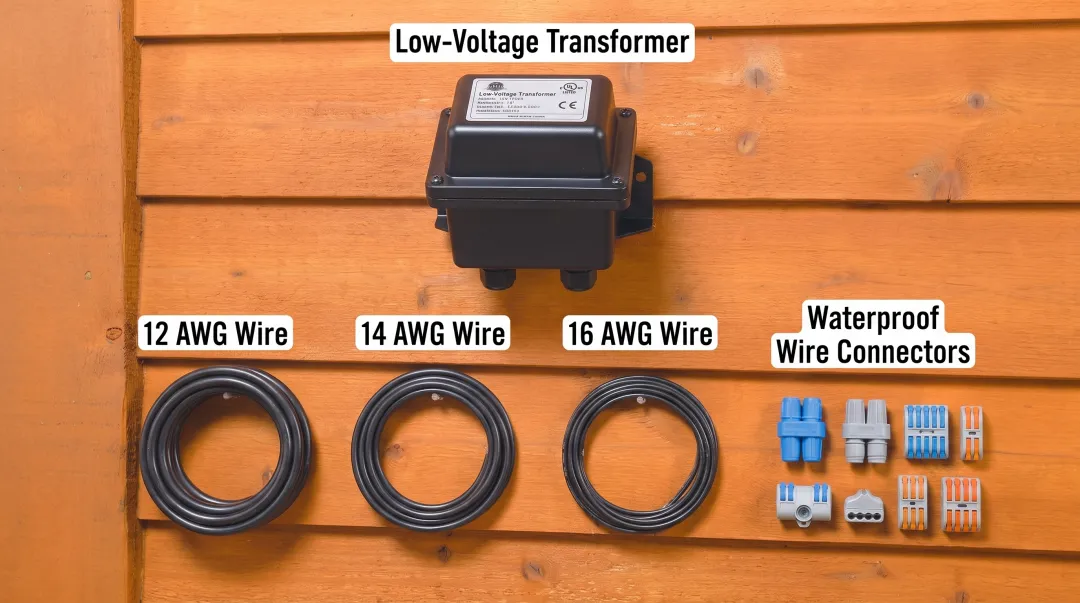

Essential Parts and Components

Gather these materials before starting:

• Low-voltage transformer sized to handle total wattage of all fixtures plus 10-20% safety margin
• Appropriate gauge wire for your wire run length and fixture wattage (typically 12-gauge or 14-gauge for most residential installations)
• Deck light fixtures (post caps, riser lights, recessed lights, or rail lights based on your plan)
• Waterproof wire connectors or wire nuts with silicone fill
• Manufacturer-specific splitters or plug-and-play connectors if using a modular system

Optional But Helpful

• Wire gauge calculator or manufacturer's online transformer calculator (highly recommended for accuracy)
• Fish tape for running wire through posts
• Timer or dimmer switches for controlling lights

How to Install Deck Lighting (Step-by-Step)

Installing deck lighting works best when each step builds on the last. Skip layout checks or connection tests and you risk voltage drop, moisture intrusion, or fixture failures that mean tearing finished work back open. Measure twice, cut once, and test every connection before you conceal a wire.

Step 1: Prepare the Installation Site and Create a Detailed Plan

Start by drawing an accurate overhead diagram of your deck showing all posts, railings, stairs, and structural elements to scale. Mark exact locations for each light fixture based on how you want the space to look and function. Typical spacing is 6-8 feet between fixtures for even illumination.

Trace the wire path from transformer location to each fixture, calculating total wire length needed for each run. Identify where wires will be concealed:

• Along joists
• Inside hollow posts
• Behind fascia boards
• Under deck boards (with protective routing)

On DC metro homes with historic detail or complex deck layouts, a design-led low-voltage pro can place fixtures so they highlight architecture without washing out the space.

Step 2: Position and Connect the Transformer

Mount or position your transformer in a location protected from direct rainfall but with adequate ventilation (never in fully enclosed spaces), typically under the deck near the GFCI outlet. Plug the transformer directly into the GFCI outlet without using extension cords.

If you add a timer or dimmer:

• Install it per the manufacturer instructions
• Keep dimmers within 30 feet of the transformer
• Mount timers vertically, receptacle facing down, at least 12 inches above grade

Test the transformer by plugging it in and verifying the output terminals show correct voltage (12V) with a multimeter before connecting any fixtures.

Step 3: Run and Secure Wire Along Deck Structure

Begin at the transformer and run your main supply wire along the underside of deck joists following your planned route. Keep wire runs as short and direct as possible while avoiding areas where screws or fasteners might penetrate.

Securing the wire:

• Use cable-safe plastic clips or rounded staples every 12-18 inches
• Leave slight slack; never drive fasteners tight against the wire (that crushes insulation over time)
• For runs through hollow posts or railings, feed wire carefully before installing caps
• Never sandwich wire between deck boards and joists

For longer runs (over 100 feet), consider using thicker gauge wire (10 or 12 gauge) to minimize voltage drop.

Step 4: Connect Fixtures Using Proper Waterproofing Methods

At each light location, join the fixture leads to the main supply with waterproof connectors. Use manufacturer plug-and-play connectors that snap together, or splice with silicone-filled wire nuts and wrap the joint in self-fusing silicone tape.

Connection checklist:

• Match polarity (positive to positive, negative to negative; marked by color or ribbing)
• Temporarily connect each fixture and confirm it lights before you mount it for good
• Keep every splice fully sealed against moisture

Recessed deck lights:

1. Drill the fixture hole with a Forstner bit to the specified depth (often 3/4")
2. Feed the wire through the smaller wire-channel hole
3. Snap the fixture in so it sits flush with the deck surface

Pro tip: On 12V systems, many pros connect fixtures with power on. Live testing shows a bad joint the moment you make it, so you fix problems before wires disappear under the deck.

Step 5: Install Specific Fixture Types

Post cap lights:

1. Feed wire up through hollow posts or alongside post before installing post sleeves
2. Leave enough slack at top to connect cap light
3. Attach cap according to manufacturer instructions (typically with silicone adhesive or mounting screws)

Riser lights on stairs:

1. Mark location 4-5 inches above tread
2. Drill 1" hole through riser board
3. Feed wire through from behind
4. Secure fixture with provided mounting hardware

Rail-mounted lights:

1. Attach to post sleeves or under rail channels according to system design
2. Conceal wire runs inside hollow rail profiles or along the inside faces of posts where they stay out of sight

After the last fixture is in, walk the full run once more: confirm every light operates, connections stay dry, and the transformer load still matches your plan.

Post-Installation Checks and Validation

Skipping post-installation checks is a common cause of callbacks and rework. Loose connections, voltage drop, and moisture intrusion often stay hidden at first, then fail weeks or months later. Test the full system before you conceal final wire runs or call the job done.

Visual and Structural Checks

Inspect the entire installation systematically:

• Seal every wire connection with a waterproof connector or silicone-filled wire nut plus self-fusing tape
• Confirm no wire is pinched, crimped, or routed where it can get damaged
• Check that fixtures are securely mounted and sit flush (recessed) or plumb (post lights)
• Conceal all wires so none show from normal viewing angles

Functional Testing Procedures

Power on the system at dusk or in darkened conditions so you can judge the real lighting effect. Give your eyes 10–15 minutes to adjust to low light.

Testing checklist:

• Walk the deck and confirm every fixture lights up with consistent brightness
• Check voltage with a multimeter at the last fixture on each run (target at least 10.8V; below 10.5V means voltage drop that shortens LED life and dims output)
• Test timers or dimmers to confirm they operate as expected
• Confirm the look you wanted: a subtle ambient glow without harsh glare or overlighting

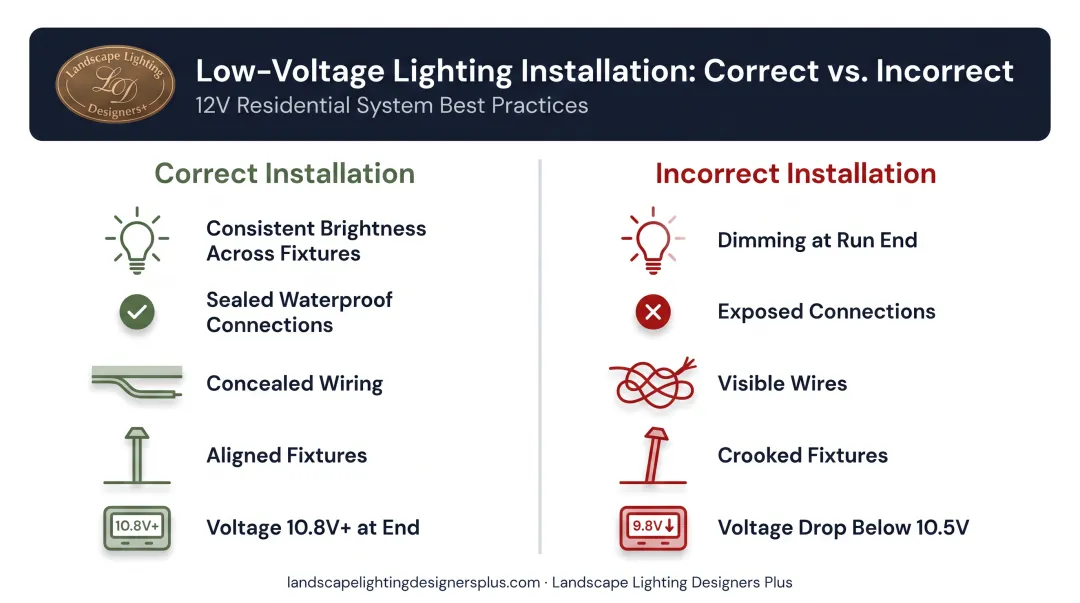

Indicators of Correct vs. Incorrect Installation

Correct installation shows:

• Consistent brightness across fixtures, with no dimming at the end of runs
• Dry, secure connections
• Wires fully concealed and protected
• Fixtures straight and aligned
• Soft ambiance without harsh shadows or glare

Incorrect installation shows:

• Brightness falls off from the first fixture to the last (voltage drop)
• Exposed or visible wire runs
• Loose or unsealed connections
• Crooked or unstable fixtures
• Hot spots and glare instead of even ambient light

Common Installation Problems and Fixes

Voltage Drop (Dimming Lights at End of Run)

Problem: Lights at the end of a wire run appear noticeably dimmer than those near the transformer, or all lights seem dim.

Likely causes:

• Wire gauge too small for the run length and total wattage (common with 18-gauge over 100 feet)
• Total fixture wattage exceeds transformer capacity
• Poor connections adding resistance along the run

Fix:

• Short-term: Reduce fixtures on that run or split it into two circuits from the transformer
• Permanent: Replace the run with heavier wire (step from 18-gauge down to 14- or 12-gauge)
• Alternative: Reconfigure as a loop so voltage distributes more evenly
• Capacity check: Confirm the transformer is rated for total wattage; upgrade if it is undersized

Moisture in Connections Causing Shorts or Failures

Problem: Individual lights stop working, flicker intermittently, or the entire circuit trips the GFCI outlet—especially after rain.

Likely causes:

• Indoor-rated wire nuts used outdoors
• Connections not sealed well enough with silicone tape
• Connections sitting where water pools or drips (for example, post caps with no drainage)

Fix:

1. Locate and disconnect all failing connections
2. Clean and dry thoroughly
3. Reconnect with silicone-filled wire nuts rated for outdoor/direct-burial use
4. Wrap each connection with two layers of self-fusing silicone tape, stretched to about 50% width
5. Move connections out of wet spots, or add drip loops so water sheds away from the joint

For fewer moisture failures long term, switch to plug-and-play connectors with IP67 or IP68 waterproof ratings.

Overloaded Transformer or Tripping GFCI

Problem: Transformer shuts down, runs extremely hot, or the GFCI outlet trips repeatedly when the system turns on.

Likely causes:

• Total fixture wattage exceeds transformer capacity (often after adding “just one more light”)
• Short circuit from damaged insulation or crossed wires
• Moisture in a connection creating a ground fault

Fix:

1. Add up every fixture’s wattage for the true system load
2. If load is over 80% of capacity, install a larger transformer or split lights across two units
3. If load is within capacity but problems continue, disconnect fixtures one group at a time to isolate the short
4. Repair the damaged wire or connection
5. For GFCI trips, reseal any damp connections and test the outlet with a known-good appliance

Pro Tips for Installing Deck Lighting Effectively

Design for Subtlety, Not Stadium Lighting

Less is more with deck lighting. Aim for subtle ambient illumination rather than bright task lighting. Space fixtures 6-10 feet apart and use lower-wattage fixtures—0.5W to 1.5W per LED fixture is typically sufficient for most deck applications.

Sit on your deck for 15 minutes after sunset with temporary lights in place. Let your eyes adjust, then judge the real effect.

The most common mistake is overlighting. It creates harsh glare, kills nighttime ambiance, and washes out architectural features instead of enhancing them. On DC metro homes with historic character, light should accent details subtly—not spotlight them.

When to Hire a Specialist Rather Than DIY

Consider consulting a professional low-voltage lighting specialist when dealing with:

• Complex multi-level decks
• Wire runs exceeding 200 feet
• Integration with home automation or smart controls
• Designer-quality aesthetic results

In the DC metro area, Landscape Lighting Designers Plus offers complimentary consultations backed by 21 years of residential design experience. Owner Craig Collins personally designs every project with a focus on balance and subtlety, so the lighting enhances your deck without DIY trial-and-error.

Professional installation often pays for itself through proper transformer sizing, better fixture placement, and insured, careful workmanship.

Conclusion

The difference between adequate deck lighting and exceptional results comes down to careful planning, precise execution, and thorough testing. Cutting corners on wire gauge, waterproof connections, or testing leads to dim lights, premature failures, and safety hazards that cost far more to fix than doing it right the first time.

Low-voltage deck lighting is within reach of handy homeowners. Complex installations—or a push for designer-quality results—still benefit from professional expertise.

For DC metro area residents, Landscape Lighting Designers Plus offers free consultations. With 21 years of experience and a designer-first approach, Craig Collins can help you create lighting that transforms your outdoor space with subtlety and elegance. Call (888) 582-8845 or visit landscapelightingnow.com to schedule your complimentary consultation.

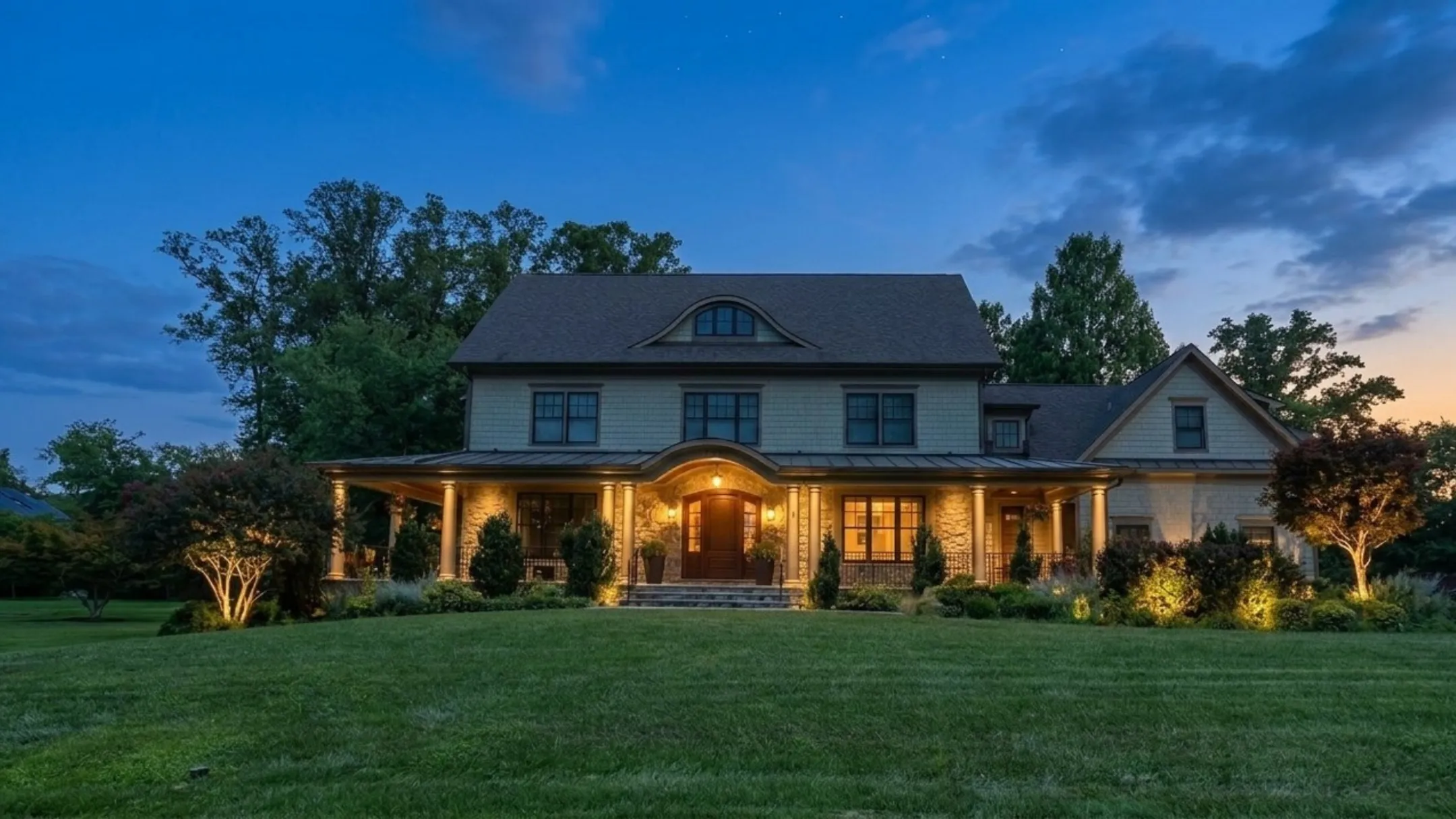

If you want to see how this reads once it is installed, our gallery of completed lighting projects shows the approach on real properties.

Frequently Asked Questions

What is the cost to install deck lighting?

DIY materials for a typical residential deck usually run $300–$1,200, depending on fixture count and quality. Professional installation (design, labor, and materials) typically costs $800–$3,000 or more, based on deck size, fixture type, wire runs, and any smart controls.

How hard is it to install deck lighting yourself?

Difficulty is moderate if you're comfortable with basic electrical concepts, drilling, and following instructions. The hardest parts are planning wire runs, sizing the transformer correctly, and waterproofing every connection.

Do I need an electrician to install low voltage deck lighting?

Low-voltage (12V) deck lighting usually does not need a licensed electrician when it plugs into an existing GFCI outlet. You do need a licensed electrician—and often a permit—if you must add a new GFCI outlet or run new line-voltage circuits.

What's the difference between low voltage and solar deck lights?

Low-voltage systems need wiring and a transformer, but they deliver consistent brightness plus dimmers, timers, and smart controls. Solar lights skip the wiring and are eco-friendly, yet they run dimmer and depend on sun exposure—so low-voltage is the better choice for primary deck lighting.

How many lights do I need for my deck?

For basic safety lighting, plan about one fixture per 48–64 square feet of deck. Use one post-cap light per post, and one riser light per step (or every other step). Final count still depends on fixture brightness and how bright you want the space.

How long does deck lighting installation take?

An experienced DIYer usually needs 6–12 hours of work, often split over a weekend: one day for planning and wire runs, another for fixtures and testing. Larger or complex decks can take 12–16 hours; pros often finish the same job in 4–8 hours.
