Who can realistically tackle this work? Experienced DIYers comfortable with electrical systems can handle straightforward replacements when a junction box already exists. However, new installations, circuit extensions, or projects involving unfamiliar electrical systems need a licensed electrician to ensure safety and code compliance.
Improper installation creates multiple problems. Inadequate weatherproofing allows moisture damage and electrical hazards. Incorrect wiring creates fire risks—the USFA reports 24,200 residential electrical fires in 2021, causing 295 deaths and over $1.2 billion in property loss. Poor placement produces uneven illumination and aesthetic imbalance. Missing permits can trigger legal complications and insurance denials.
Key Takeaways
- Prioritize electrical safety, weatherproofing, and mounting height (typically 60–72 inches)
- Swap fixtures on existing junction boxes only if you’re an experienced DIYer; new wiring needs a licensed electrician
- Treat placement like technique: entryway symmetry, even spacing, and architectural balance
- Use weatherproof boxes, wet/damp-rated fixtures, and full sealing on every outdoor circuit
- Choose low-voltage (12V) landscape lighting for a safer, more flexible alternative to 120V hardwired wall lights
Prerequisites and Safety Considerations
Electrical Safety Requirements
Turn off power at the breaker box before any work. Never rely on a switch alone to disconnect power.

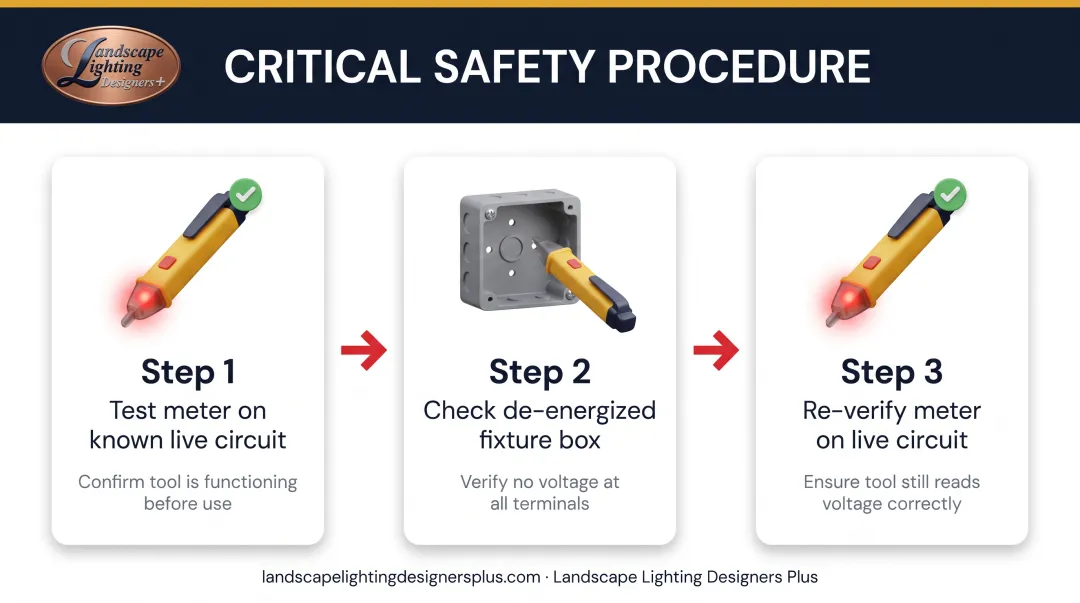

Confirm the circuit is dead with a voltage tester before touching wires:
- Test the meter on a known live circuit first
- Check the de-energized fixture box
- Re-verify your meter on the live circuit again
If you're uncomfortable working with electrical systems or uncertain about any step, hire a licensed electrician.
The NEC requires controlled lighting outlets at grade-level exterior doors with outdoor access under 210.70(A)(2)(b). A garage vehicle door doesn't count as an entrance for this rule.
Permit and Code Compliance
Most jurisdictions require electrical permits for new outdoor lighting circuits or junction box installations. Requirements vary by location:
- Washington, DC typically requires electrical permits for new exterior lighting circuits and fixture wiring
- Montgomery County, MD and many Northern Virginia jurisdictions require permits to install, alter, or replace fixtures or wiring
- Some areas treat like-for-like fixture replacement as ordinary maintenance
Verify requirements with your local building department before starting work. All installations must meet National Electrical Code (NEC) standards for outdoor applications.
Weatherproofing Essentials
Outdoor fixtures must carry the proper location rating:
- Wet-rated fixtures (marked "Suitable for Wet Locations") withstand direct rain exposure and are required for uncovered areas
- Damp-rated fixtures work for covered areas protected from direct water contact, like covered porches

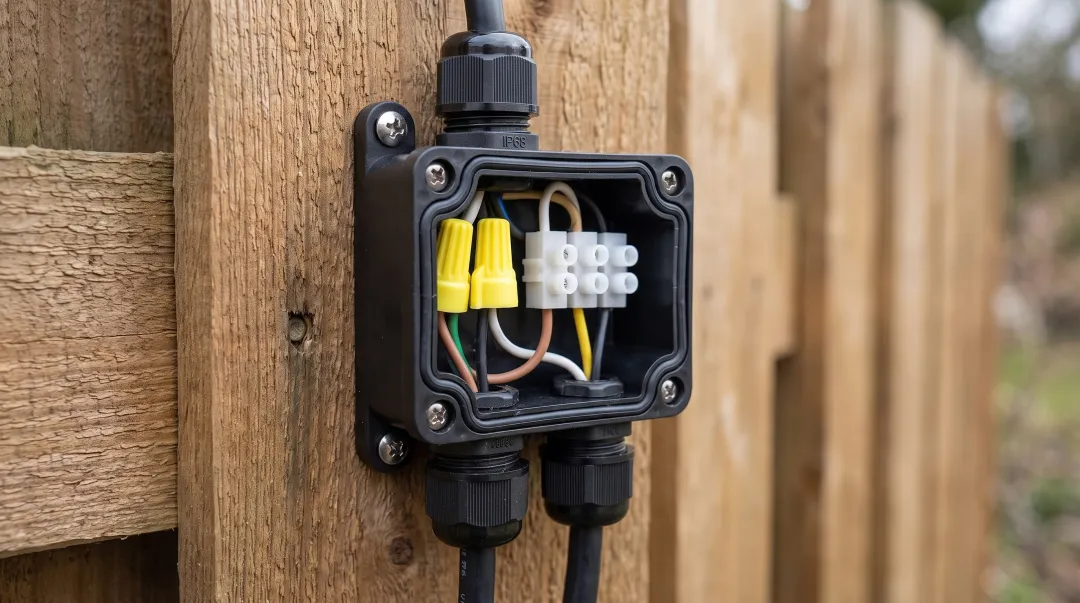

Junction boxes must be listed for wet locations and include weatherproof gaskets. Seal every connection, and match fixture ratings to your climate exposure.
UL evaluates line-voltage outdoor luminaires to UL 1598 standards, including wet-location requirements. NEC 314.15 requires boxes to prevent moisture entry and accumulation.
GFCI Protection Requirements
NEC 2023 section 210.8(F) does not require GFCI protection for ordinary outdoor lighting outlets. Exception No. 1 excludes typical lighting outlets; pool-related and certain special locations under 210.8(C) still have separate rules. Confirm your local code adoption and any amendments before you wire the circuit.
When Not to Proceed
Stop work immediately if you encounter:
- Aluminum wiring, which needs special connectors and handling
- Damaged or deteriorated existing wiring
- Uncertainty about circuit capacity or load
- Historic properties with special requirements
- Any situation where you lack confidence in electrical safety protocols
Homes with pre-1972 aluminum wiring are 55 times more likely to reach fire-hazard conditions, according to CPSC Publication 516. Call a licensed electrician if you find aluminum conductors or anything else on this list.
Tools and Materials Required
Essential Safety and Testing Equipment
- Voltage tester (non-contact and probe-style)
- GFCI circuit tester
- Insulated screwdrivers and pliers
- Safety glasses and work gloves rated for electrical work
- Stable ladder with proper weight rating
Installation Tools
- Power drill with masonry bits (brick/stone) or wood bits
- Wire strippers
- Torpedo level
- Stud finder for hollow walls
Required Materials
- Outdoor-rated light fixture with proper wet/damp location rating
- Weatherproof junction box (if installing new location)
- Outdoor-rated wire connectors
- Weatherproof gaskets or foam pads
- Appropriate mounting hardware
- Weatherproof silicone caulk
- Anchors matched to your wall material
Note on wire stripping: Strip length varies by connector model—IDEAL WeatherProof connectors call for 3/8, 1/2, or 5/8 inch depending on the model and conductors. Always follow the connector manufacturer's instructions.

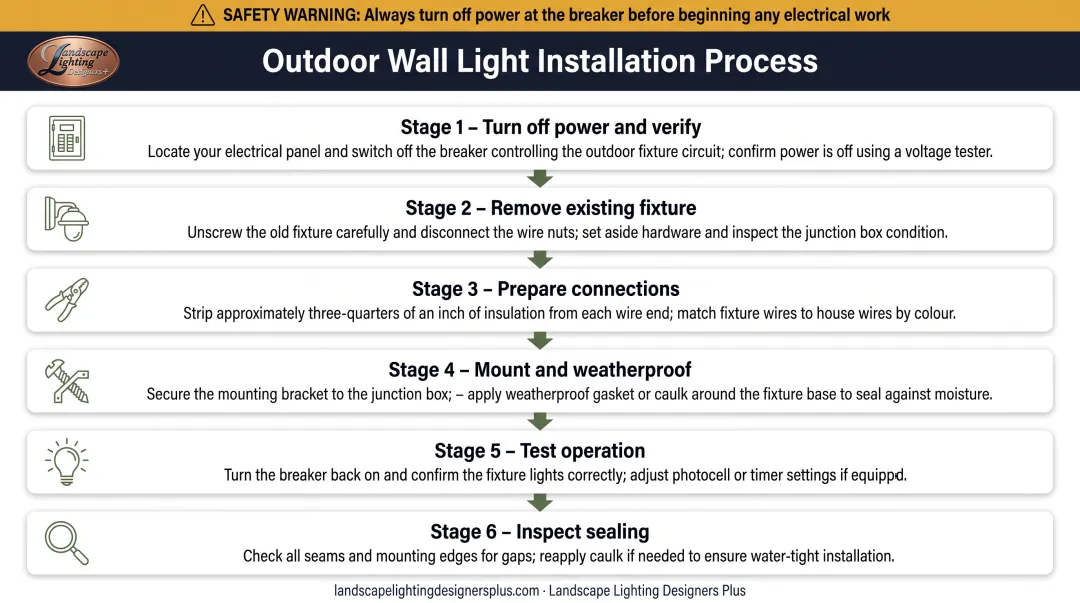

Step-by-Step Installation Guide for Existing Junction Boxes
This guide covers the most common DIY scenario: replacing an existing outdoor wall light on an established junction box. New installations requiring circuit work or junction box installation should be handled by licensed electricians to ensure code compliance and safety.
Turn Off Power and Verify Safety
- Locate the correct breaker controlling the fixture
- Turn the breaker off and label it so no one accidentally restores power
- Use your voltage tester to confirm power is off at the junction box
- Verify your tester is working on a known live circuit before and after testing
Remove the Existing Fixture
- Unscrew the mounting hardware holding the fixture to the wall
- Carefully pull the fixture away from the wall to access wiring
- Photograph the wire connections for reference before you disconnect anything
- Support the fixture weight while disconnecting the wire nuts
- Inspect the junction box and wiring for damage or deterioration
Prepare and Make Connections
- Strip wire ends according to your specific connector's requirements (typically 1/2 inch)
- Connect ground wire (green or bare copper) to the ground screw or wire
- Connect neutral wires (white to white)
- Connect hot wires (usually black to black; always check your fixture instructions)
- Secure all connections with appropriately sized wire nuts
- Wrap wire nut connections with electrical tape for added protection
Mount and Weatherproof the Fixture
- Carefully tuck wiring into the junction box without pinching or damaging insulation
- Align the mounting bracket or base plate with the junction box
- Ensure the weatherproof gasket or foam pad sits properly between fixture and wall surface
- Secure the fixture with provided mounting screws
- Apply weatherproof silicone caulk around the fixture perimeter where it meets the wall (if recommended by manufacturer)
Test and Verify Operation
- Restore power at the breaker box
- Test the light with the switch
- Check for proper illumination and flickering, which can signal a loose connection
- Inspect for moisture entry points needing additional sealing
- If the circuit has GFCI protection, test it with the test button
Budget planning is easier with real numbers—our landscape lighting cost guide lays out typical DC-area pricing.
Proper Placement and Positioning Guidelines
Standard Mounting Heights
According to Kichler manufacturer design guidelines, proper mounting heights are:
- Entryways and front doors: 60-66 inches from ground to fixture center (above shoulder height to reduce glare)
- Garage lights: 66-72 inches, or 6 inches above the garage door frame
- Patio lights: 60-72 inches to avoid glare for seated guests
- Wall-mounted step lights: 12-18 inches above ground along stairs and landings
Important: These are design recommendations, not NEC code requirements. The NEC requires controlled illumination at grade-level exterior entrances but doesn't specify universal sconce mounting heights.
Spacing and Symmetry

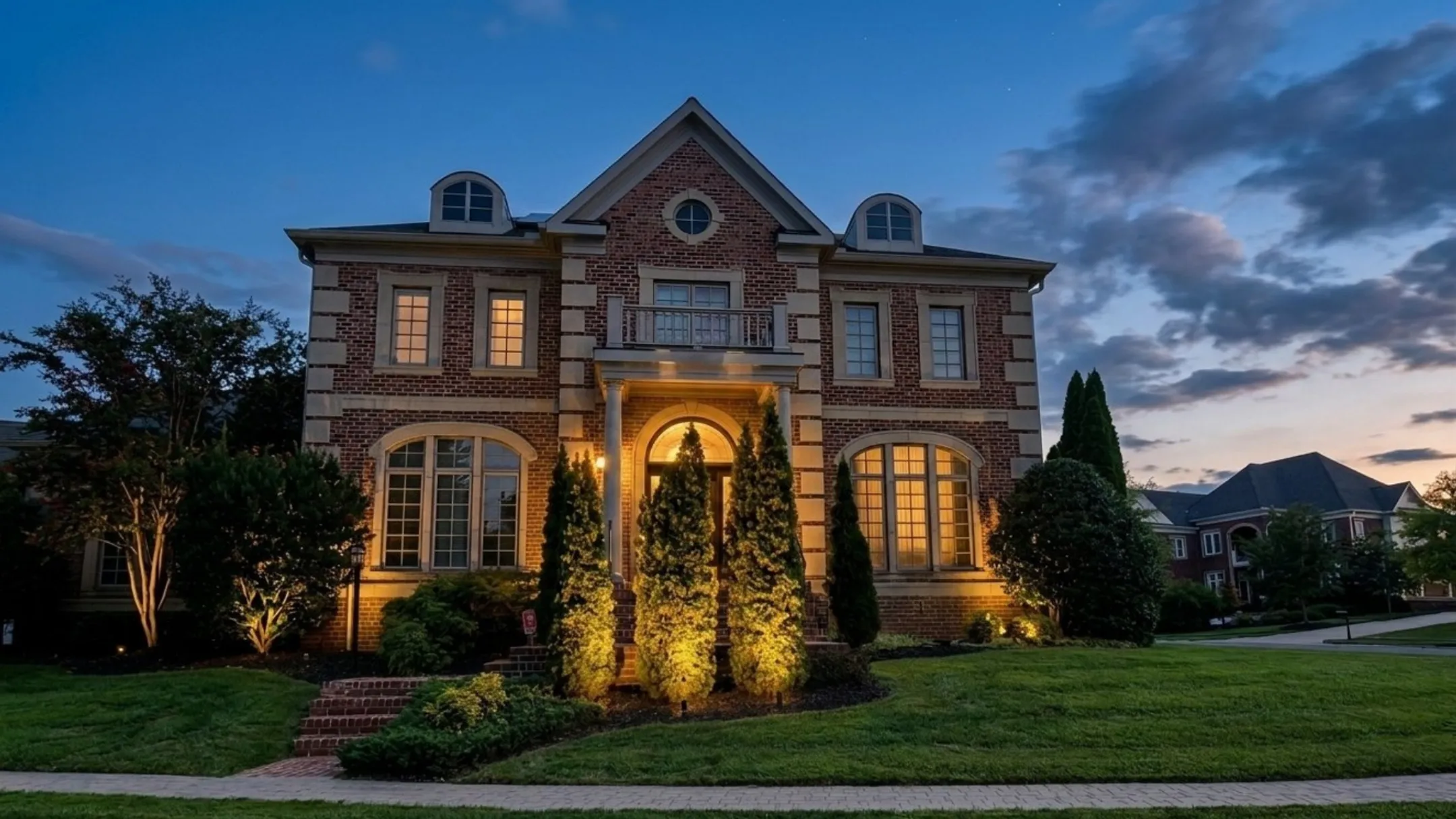

- Flank entryways with matching fixtures 6-12 inches from the door frame
- Fixture height should be approximately 1/4 to 1/3 the door height
- Space multiple fixtures evenly along walls (typically 6-8 feet apart)
- Maintain consistent heights across the same wall surface
For garages, Kichler sizes fixtures off door width: multiply by 0.25 for one-car doors or 0.33 for two-car doors.
Placement by Area and Beam Direction
Match each fixture to the job it needs to do:
- Entryway lights: Light the door hardware and approach so guests can see the lock and step
- Garage lights: Cover the driveway for visibility and security; on two-car garages, mount on the outside pillars
- Patio and deck lights: Brighten the space without shining into seating areas
- Pathway edges: Mark walking surfaces and elevation changes clearly
Aim the beam for function first:
- Downward-facing fixtures handle task lighting and safety illumination at grade
- Up/down sconces add architectural interest without losing usable light below
- Adjustable fixtures let you highlight a feature or re-aim when landscaping changes
Fold wall lights into the rest of the exterior plan. Use them to pick out columns or stonework, keep spacing tight enough to avoid dark gaps, and match brightness and color temperature with any landscape lighting so the house reads as one scene at night.
Common Installation Mistakes to Avoid
Most outdoor wall lighting failures come from a few avoidable errors. Watch for these three problem areas during install.
Poor Weatherproofing and Moisture Protection
Water intrusion is the most common failure mode for outdoor electrical fixtures. Critical mistakes include:
- Failing to use weatherproof junction boxes listed for wet locations
- Skipping weatherproof gaskets between fixture and wall
- Using indoor-rated wire nuts or materials outdoors
- Not applying proper sealant around fixture perimeters
Incorrect Wire Connections and Electrical Errors
According to the U.S. Fire Administration, 77% of home electrical fires involve electrical failure or malfunction. Common wiring mistakes include:
- Reversing hot and neutral wires
- Failing to properly secure ground connections
- Over-tightening or under-tightening wire nuts
- Not leaving adequate wire length in junction boxes (6 inches minimum)
- Using incompatible wire gauges or exceeding circuit capacity
Improper Mounting and Placement Errors
Even a solid electrical job falls short if mounting and placement are off. Avoid these errors:
- Installing fixtures at inconsistent heights across the same surface
- Failing to properly anchor fixtures to wall studs or masonry
- Mounting oversized fixtures that overwhelm architectural scale
- Placing fixtures too close together (hotspots) or too far apart (dark zones)
- Ignoring symmetry at entries
- Installing without considering sight lines from inside the home
When to Hire a Professional
Scenarios Requiring Professional Expertise
Hire a licensed electrician for:
- Running new electrical circuits or installing junction boxes
- Work that requires permits
- Homes with aluminum wiring or older electrical systems
- Installations on historic or architecturally significant properties
- Any project where you lack confidence in electrical safety protocols
- Circuit capacity checks and load calculations
Benefits of Professional Installation
Licensed electricians provide:
- Code compliance and permits handled through local requirements and inspections
- Liability coverage that protects your property if damage or injury occurs on the job
- Load evaluation against breaker and conductor ratings per NEC 210.20(A), so new lights do not overload the circuit
- Cleaner workmanship that reduces future hazards and repair costs
Low-Voltage Landscape Lighting as a Professional Alternative
Standard 120V outdoor wall lights need hardwired electrical work. Professionally designed low-voltage landscape lighting is a different path—with clear upsides if you want broader outdoor coverage without new house circuits:
- 12V systems reduce shock risk versus 120V and are a better fit near water features and pools when installed correctly
- Fixtures can sit along pathways, in gardens, and on architectural features—not only on walls
- LED low-voltage systems use 80–90% less electricity than comparable halogen setups, often only a few dollars a month to run
- Cohesive design that lights the whole property, not just a few wall-mounted points
If you prefer that landscape-first route over hardwired wall fixtures, Landscape Lighting Designers Plus designs and installs custom low-voltage systems for homes across the DC metro area. Owner Craig Collins, a low-voltage specialist with 21+ years of experience, personally designs each project with an emphasis on balance and subtlety rather than overlighting.
The company holds a 4.8-star average across 37+ verified reviews and earned the Best of Houzz 2021 Service Award.
Browsing finished work is the quickest way to narrow a direction; our project gallery has installations from across Bethesda, Potomac, and Chevy Chase.
Frequently Asked Questions
Do I need a permit to install outdoor wall lights?
Replacing a fixture on an existing junction box often needs no permit, but new circuits, boxes, or first-time exterior lighting usually do. Rules vary by city (some require permits even for like-for-like swaps), so confirm with your local building department before you start.
What's the difference between wet-rated and damp-rated outdoor lights?
Wet-rated fixtures (marked "Suitable for Wet Locations") handle direct rain and belong on uncovered, weather-exposed walls. Damp-rated fixtures suit covered spots like porches or soffits. Match the fixture's UL listing to the actual install location.
How high should outdoor wall lights be mounted?
For entryways, mount fixtures 60–66 inches from the ground to the fixture center (about shoulder height). Garage lights often sit 66–72 inches or above the door frame; size the fixture to roughly 1/4 to 1/3 of the door height. These are design guidelines, not NEC requirements.
Can I install outdoor wall lights myself or do I need an electrician?
Experienced DIYers can usually replace fixtures on existing junction boxes. New circuits, wiring runs, or junction boxes should go to a licensed electrician. Hire a pro if you hit aluminum wiring, damaged components, or anything you're unsure about.
What are the advantages of low-voltage landscape lighting over traditional outdoor wall lights?
Low-voltage systems run at 12V instead of 120V, which lowers shock risk and stays safer near water. Fixtures can sit throughout the landscape, not only on walls, and LED setups use 80–90% less electricity than older halogen gear. A planned low-voltage layout ties path, accent, and architectural light into one system.
How do I ensure my outdoor wall lights are properly weatherproofed?
Use wet- or damp-rated fixtures and outdoor-listed junction boxes, with a weatherproof gasket between the fixture and the wall. Seal the perimeter with outdoor-rated silicone and make every splice with wet-location connectors. Follow the manufacturer's instructions for your model.
Outdoor wall lighting rewards solid electrical practice, weatherproofing, and smart placement. If any step feels uncertain, hire a licensed electrician. For lighting beyond wall fixtures alone (paths, trees, architecture), a low-voltage landscape lighting designer can plan a 12V system that works with the whole property.
