Unlike plug-and-play solutions, permanent LED stair lighting demands precision in placement, low-voltage wiring knowledge, and design principles that balance safety with aesthetics. Incorrect installations create glare that actually reduces visibility, voltage drop that leaves far steps dim, and outdoor failures when moisture infiltrates unprotected connections. Overlighting destroys the subtle elegance that makes stair lighting beautiful, while underlighting defeats its safety purpose.
This guide covers the complete, correct installation of LED stair lights following best-practice standards for low-voltage systems. You'll learn proper component selection, step-by-step installation procedures, voltage-drop calculations, and design principles that ensure your stairs are safely illuminated without harsh glare. Whether you're a DIY homeowner tackling surface-mounted strips or planning a professional installation, you'll understand what it takes to achieve results that enhance both safety and curb appeal.
Key Takeaways
- Low-voltage LED strips (12V or 24V) are the safest, most flexible stair-lighting option
- Placement under treads, along risers, or in handrails drives safety and aesthetics
- Calculate voltage drop before install; 24V handles longer wire runs than 12V
- Outdoor installs need IP65+ components and sealed connections against moisture
- Complex or historic outdoor stair projects benefit from a professional design consult
Prerequisites and Safety Considerations
Verify Site Readiness
Your stairs must be structurally sound with accessible mounting surfaces: wood, composite, metal, or masonry.
Outdoor installs need weatherproof surfaces and working drainage. Water that pools near electrical components shortens system life. For recessed work, confirm headroom so you do not cut into structural supports and weaken the stair.
Confirm System Compatibility
Voltage selection matters:
- 12V systems work well for short runs (under 16 feet)
- 24V systems tolerate longer distances, up to twice the run length at comparable wattage
- Never use 120V line-voltage fixtures on stairs (shock hazard, code violations, harsh lighting)
Calculate your total LED load and select a power supply with a 20% safety margin. Verify that any dimming system is compatible with your LED driver. Confirm wire gauge supports the full run length. According to Diode LED's voltage-drop guidance, 24V strips draw half the current of 12V strips at equal wattage, which helps on longer runs.
Understand Code Compliance
Local electrical codes for low-voltage landscape lighting vary significantly across jurisdictions:
Washington, DC: The 2017 DC Construction Codes incorporate the 2014 NEC. Electrical permits cover repair, replacement, or installation of electrical systems, and must be obtained by a DC master-licensed professional.
Montgomery County, MD: Adopts the 2017 NEC. Low-voltage work (50V or less) doesn't require a license to apply for a permit, but confirm scope-of-work rules with the Department of Permitting Services.
Virginia: Uses the 2020 NEC (effective January 2024). Arlington requires permits when fixtures or wiring are added, removed, or relocated; Fairfax requires residential electrical permits for new or replacement equipment.
GFCI protection: Outdoor plug-in drivers should connect to GFCI-protected outdoor receptacles. Hardwired outdoor installations may require GFCI protection depending on your jurisdiction's adopted NEC edition.

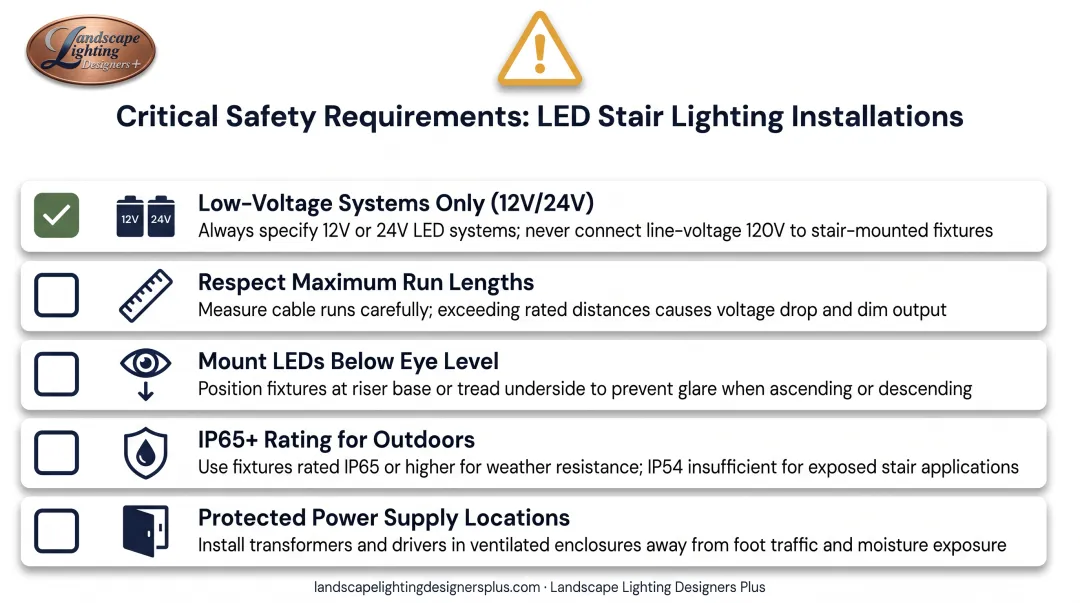

Installation non-negotiables:
- Use only low-voltage (12V or 24V) systems for stair applications
- Never exceed the manufacturer's maximum LED strip run length
- Mount LEDs where direct eye contact cannot occur

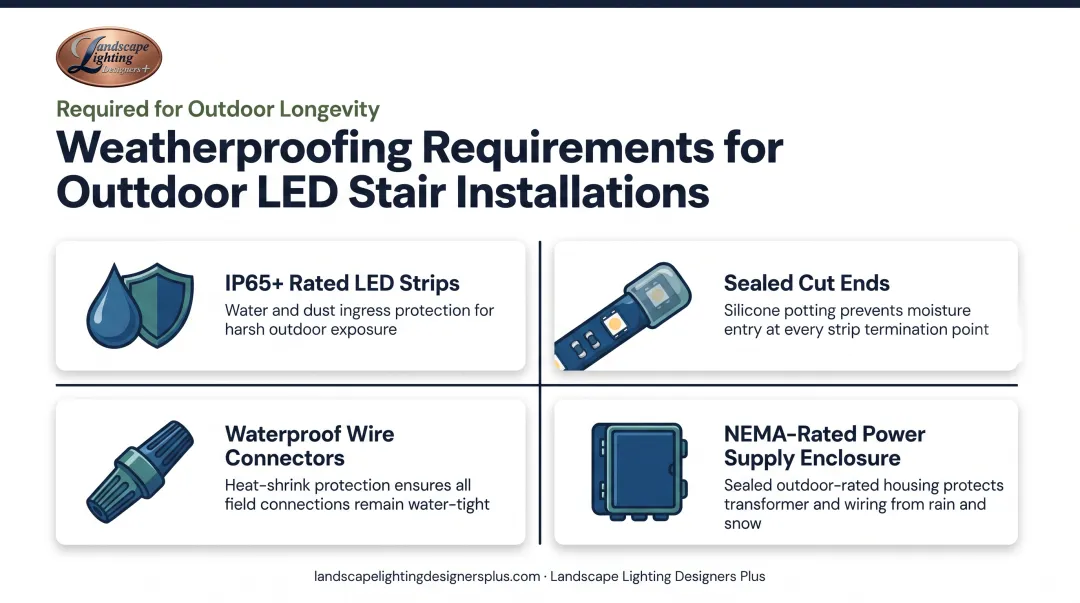

- Outdoor installs must use IP65+ components and waterproof connectors
- Place power supplies in protected locations with proper enclosures
When to hire a specialist
Call in a pro when the job goes beyond a simple single-run install:
- Multi-zone systems that need precise voltage-drop calculations
- Integration with existing landscape lighting
- Historic homes where fixtures must complement the architecture
- Projects where design quality matters as much as basic illumination
In Bethesda, Potomac, Chevy Chase, Rockville, and Washington DC, homeowners often bring in a low-voltage specialist when stair lights need to sit inside a full outdoor design. Landscape Lighting Designers Plus owner Craig Collins has spent 21 years building systems around balance and subtlety, so stair lighting reads as part of the property rather than a standalone add-on.

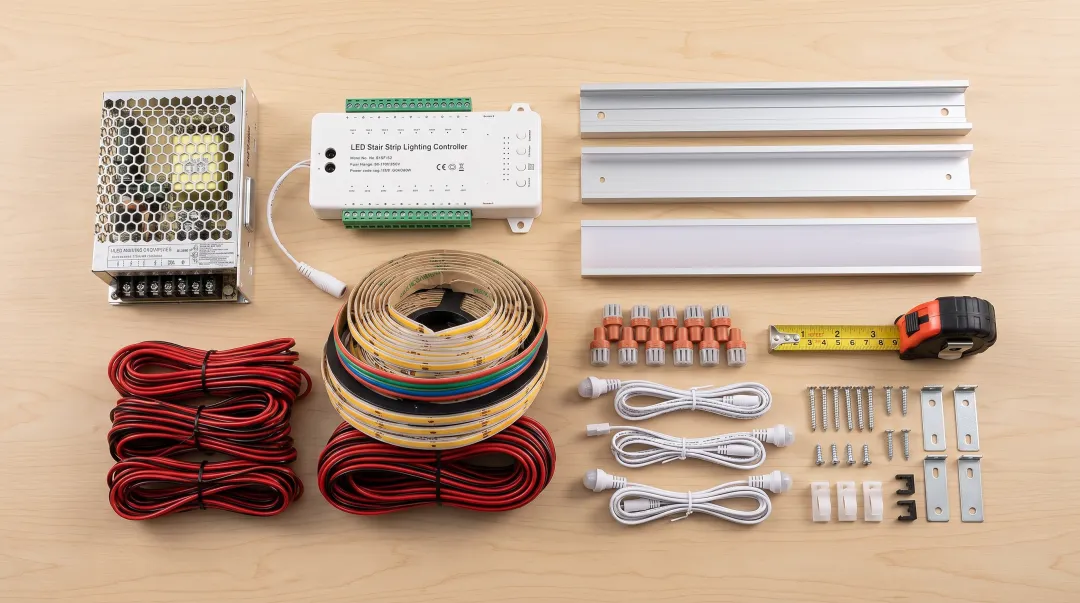

Tools and Parts Required
Gather tools and parts before you start. A complete kit keeps the install moving and avoids mid-project supply runs.
Essential Tools
- Wire strippers and cutters
- Voltage tester or multimeter
- Drill with bits matched to your mounting surface
- Measuring tape and level
- Pencil or painter's tape for marking
- Scissors or LED strip cutters (cut only at marked cut points)
- Screwdriver set
- Router or oscillating multi-tool (for recessed installs)
Required LED Components
LED strips
- IP20 for indoor stairs; IP65 or higher for outdoor
- 12V or 24V to match your system design
Power supply
- Low-voltage Class 2 constant-voltage DC driver
- Sized for total strip wattage plus a 20% margin
Mounting hardware
- Aluminum channels or extrusions (optional but recommended)
- Fasteners rated for your mounting surface
Wiring
- Wire gauge matched to run length (often 14 AWG for runs under 50 feet on 12V)
- Waterproof connectors for outdoor installs
Optional Upgrades
- Motion sensors or dusk-to-dawn controls
- Dimmer compatible with your driver
- Surge protection for outdoor systems
- Silicone sealant for outdoor weatherproofing
- Cable clips or conduit for wire management
- Junction boxes at connection points
How to Install LED Stair Lights (Step-by-Step)
Follow the Correct Sequence
LED stair light installation follows a specific progression: preparation → layout → mounting → wiring → testing. Skipping steps or rushing through layout results in uneven lighting, visible hot spots, or poor wire management. Patience during preparation prevents costly rework.
Phase 1: Preparation
Measure precisely:
- Measure each tread and riser dimension (may vary in older homes)
- Calculate total LED strip length needed plus 10% extra
- Map wire routing from stairs to power supply location
Clean mounting surfaces:
- Use isopropyl alcohol on all mounting surfaces
- Ensure surfaces are completely dry
- Verify power is disconnected at circuit breaker
Phase 2: Layout and Marking

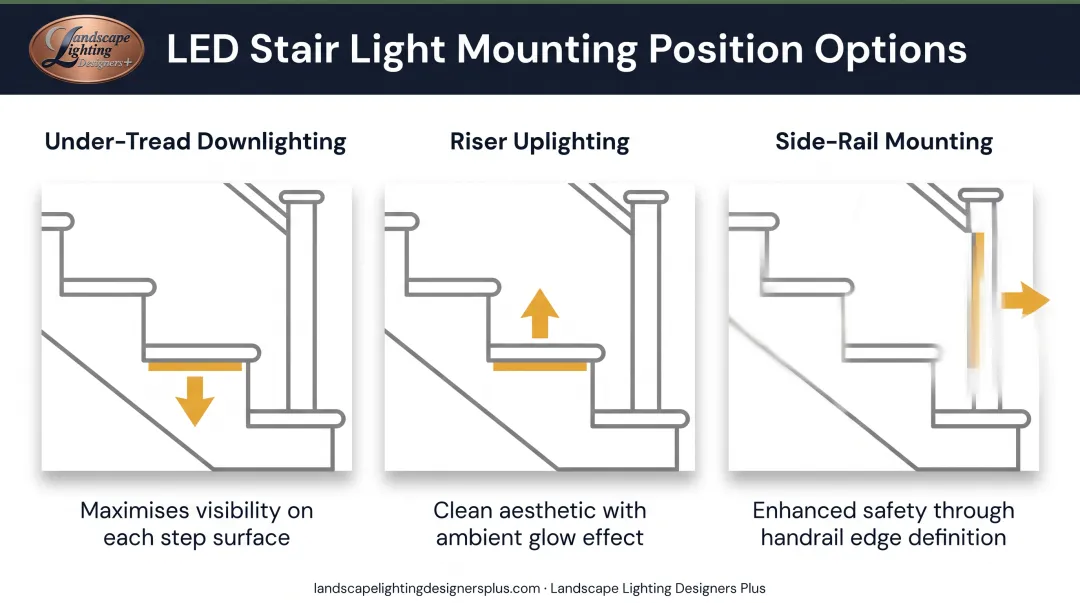

Use painter's tape to mock up LED strip placement before permanent installation. Test different positions:
- Under-tread downlighting: Illuminates the walking surface
- Riser uplighting: Highlights stair contours
- Side-rail mounting: Provides edge definition
Mark final mounting locations with pencil, ensuring consistent spacing step-to-step. For recessed installations, mark channel routes with a level and straight edge, verifying placement avoids structural supports.
Phase 3: Mounting
If using aluminum channels:
- Install channels first using appropriate anchors
- Wood screws for timber
- Masonry anchors for concrete/stone
- Verify channels are level and aligned
Installing LED strips:
- Peel backing gradually while pressing into channel or mounting surface
- Avoid wrinkles or air pockets that reduce adhesive contact
- Cut strips only at marked cut points
- For outdoor installations: seal all cut ends with waterproof end caps immediately
Phase 4: Wiring and Electrical Integration
Run low-voltage wire:
- Use appropriate gauge for total distance (14 AWG for runs under 50 feet on 12V systems)
- Route wire to minimize visible runs and avoid pinch points
- Use outdoor-rated connectors if applicable
Make connections:
- Ensure polarity matches (positive to positive, negative to negative)
- Connect all parallel strip runs to home-run wiring, not daisy-chained end-to-end, to prevent voltage drop and keep brightness even
Power supply installation:
- Mount in protected location (indoor for outdoor stairs when possible)
- For outdoor mounting: use weatherproof NEMA-rated enclosure
- For hardwired installations: hire licensed electrician to connect transformer to 120V circuit
Phase 5: Testing and Final Adjustments
- Restore power at the breaker and test each run for even brightness
- Check for flicker, dead sections, or loose connectors
- Nudge strip position or aiming before you conceal final wire runs
- Secure remaining cable, seal outdoor penetrations, and clean up the work area
Professional Design Support
Complex stair runs, historic details, and full landscape integration are harder to get right on the first try. Craig Collins of Landscape Lighting Designers Plus has spent 21+ years designing low-voltage lighting for DC metro homes in Bethesda, Potomac, Chevy Chase, Rockville, and Washington DC.
His focus is balance and subtlety: enough light for safe footing, without washing out the architecture or overlighting the stairs.
Budget planning is easier with real numbers—our landscape lighting cost guide lays out typical DC-area pricing.
Post-Installation Checks and Validation
Before you close up tools, run a quick validation pass. These checks confirm the system is safe, even, and comfortable to walk—not just powered on.
Pre-Power-On Visual Inspection
Verify wiring, mounting, and load:
- Check that all wire connections are secure with no exposed conductors
- Confirm polarity is correct throughout
- Ensure all outdoor connections have waterproof seals
- Verify LED strips are fully adhered with no peeling edges
- Confirm power supply rating matches total connected load
Once the visual pass looks clean, move to a controlled power-on test.
Functional Testing
Power-on sequence:
- Restore power at the breaker, switch, or outlet/transformer
- Switch on the system and verify all LED segments illuminate
- Walk the stairs while observing lighting from multiple angles
- Check for glare, dark spots, or uneven brightness between steps
- Test dimming (if installed) for smooth operation without flicker
- Test motion sensors from both top and bottom approaches
Indicators of Correct Installation
Use what you see and hear on that walk-through to judge the result.
What good installation looks like:
- Uniform brightness across all steps
- Soft indirect glow without glare into eyes
- No visible individual LED points (smooth light line)
- Silent operation (no buzzing from power supply or dimmer)
Signs of problems:
- Progressive dimming toward strip ends (voltage drop)
- Visible individual LED points (poor diffusion)
- Harsh glare impairing visibility
- Flickering under dimming (incompatible dimmer/driver)
Common Installation Problems and Fixes
Voltage Drop Causing Dim Endpoints
Problem: LED strips progressively dim toward run ends, with final steps noticeably darker. Brightness loss typically becomes visible after 16-20 feet on 12V systems or 32-40 feet on 24V systems.
Likely cause:
- Wire gauge too small for run distance and wattage
- Total run length exceeds manufacturer's maximum specification
- Multiple strips incorrectly daisy-chained rather than home-run wired
Fix:
- Upgrade to heavier wire gauge (14 AWG or 12 AWG)
- Inject power at both ends of long LED runs
- Switch to 24V system (tolerates longer distances)
- Install additional power supply to create multiple zones
Visible LED Hot Spotting
Problem: Individual LED diodes clearly visible as bright points rather than smooth continuous light, creating a harsh commercial appearance.
Likely cause:
- LED strips installed without diffusion channel or frosted cover
- Mounting surface too reflective
- LED density too low (wide spacing between diodes)
- LEDs mounted too close to visible edge
Fix:
- Install strips inside aluminum channels with frosted or opal diffuser covers
- Add setback distance between LEDs and visible edge (minimum 1-2 inches)
- Upgrade to higher-density strips (120+ LEDs/meter)
- Use matte or non-reflective mounting surfaces
Water Infiltration in Outdoor Installations
Problem: Outdoor stair lights fail after rain exposure, exhibit intermittent operation, show visible condensation, or have corroded connections.
Likely cause:
- Incorrect IP rating (IP20/IP44 used outdoors instead of IP65+)
- Cut ends not properly sealed
- Wire connections exposed without waterproof enclosures
- Power supply in unprotected location
Fix:
- Replace all outdoor components with IP65 or IP67 rated equivalents
- Seal all LED strip cut ends with silicone end caps
- Use waterproof wire connectors with heat-shrink protection
- Relocate power supplies to dry indoor locations or install in NEMA-rated outdoor enclosures
- Apply dielectric grease to all connection points before sealing
Pro Tips for Installing LED Stair Lights Effectively
Installation Timing Strategy
Schedule wisely:
- For new construction: install wire routing during framing, before finishes
- For existing stairs: schedule during low-traffic periods
- Outdoor installations: pick dry weather with a 48-hour dry forecast so adhesives and sealants can cure
Design Principles for Balanced Lighting
Avoid overlighting:
- Position LEDs to illuminate the tread walking surface and front edge, not users' eyes
- Keep color temperature consistent on every step (2700K–3000K warm white works best for homes)
- Design for subtlety, not spectacle
According to the International Dark-Sky Association, residential outdoor lighting should stay at or below 3000K nominal color temperature, with sources not visible from the horizontal plane. That guidance favors warm, shielded, downward-directed stair lighting.
Professional Support Decision Points
When to hire a licensed electrician: Any hardwired 120V connection to a low-voltage transformer requires a licensed electrician in most jurisdictions.
When to consider a professional low-voltage designer:
- Stair lighting tied into a broader landscape lighting system
- Historic or architecturally significant homes where light should complement the architecture
- Custom channel fabrication or non-standard mounting
- Ongoing warranty coverage and maintenance support
In the DC metro area, Landscape Lighting Designers Plus has spent over 21 years on low-voltage stair and landscape lighting for homes in Bethesda, Potomac, Chevy Chase, Rockville, and Washington DC neighborhoods including Georgetown and Capitol Hill.
Documentation and Maintenance Planning
Document thoroughly:
- Photograph all wire routing and connection points before concealing
- Label all wire runs at the power supply with the matching stair section
- Record power supply specs, LED strip model/specs, and installation date
Schedule regular maintenance:
- Annual inspection for loose connections, adhesive failure, and moisture infiltration
- Clean diffusers/covers to maintain light quality
- For professional installs: set up a maintenance agreement for long-term performance
Conclusion
Properly installed LED stair lighting turns stairs from hazard zones into safe, attractive features that support home value. Installation quality decides the result: steady safety light and clean aesthetics, or glare, uneven brightness, and early failures.
Careful preparation, sound low-voltage practices, and thorough testing drive a successful install. Know when complexity, design goals, or integration with existing systems call for a low-voltage specialist who can handle both the look and the technical work.
For DC metro properties—especially historic homes in Georgetown, Capitol Hill, or Chevy Chase—specialists with local experience can match stair lighting to architectural character while meeting modern safety standards.
For visual reference, our portfolio of completed projects applies these techniques to DC-area houses of very different styles.
Frequently Asked Questions
What is the best way to illuminate my stairs?
Use low-voltage LED strip lights (12V or 24V) under stair treads or along risers for indirect light on the walking surface without glare. Pick strips in diffuser channels and 2700K–3000K warm white.
What are common stair lighting mistakes?
Common mistakes include overlighting (harsh glare), using 120V instead of low-voltage systems, skipping diffusion so hot spots show, exceeding max run lengths, and failing to weatherproof outdoor installs.
Do I need an electrician to install LED stair lights?
DIY is fine for low-voltage plug-in LED systems. Hardwired installs that tie transformers into 120V circuits need a licensed electrician in most areas. A low-voltage specialist can still help with design and parts selection.
What voltage is best for outdoor stair lighting?
24V low-voltage is preferred outdoors. It handles longer wire runs than 12V, stays safer and more efficient than 120V line voltage, and pairs cleanly with landscape lighting systems.
How do I prevent glare from stair lights?
Mount strips in recessed channels with frosted or opal diffusers so light hits the tread, not eye level. Keep brightness high enough for safety without overlighting.
Can I install stair lights on existing stairs without major renovation?
Yes. Surface-mounted LED strips with adhesive or slim aluminum channels go under tread overhangs or along risers with little modification. Route low-voltage wiring along hidden edges to the power supply.
