Many homeowners try the box-store kit route. Some get lucky. Most end up with harsh hot spots, dark corners, and cable poking out of the mulch by spring. Poor installation causes uneven lighting, voltage drop, exposed wiring, and fixture failure that shows up months later, not on day one.
This guide walks through the complete process: planning, wiring, fixture placement, and the validation steps most DIY guides skip entirely.
TL;DR
- A full install runs five stages: site assessment, transformer sizing, fixture placement, wiring, and testing
- 12V low-voltage systems carry lower shock risk than 120V household circuits NEC Article 411
- Design expertise prevents overlighting and keeps results balanced, not glaring
- Most failures trace to wrong wire gauge, poor fixture aiming, or skipped voltage testing
Installation Guide for Landscape Lighting

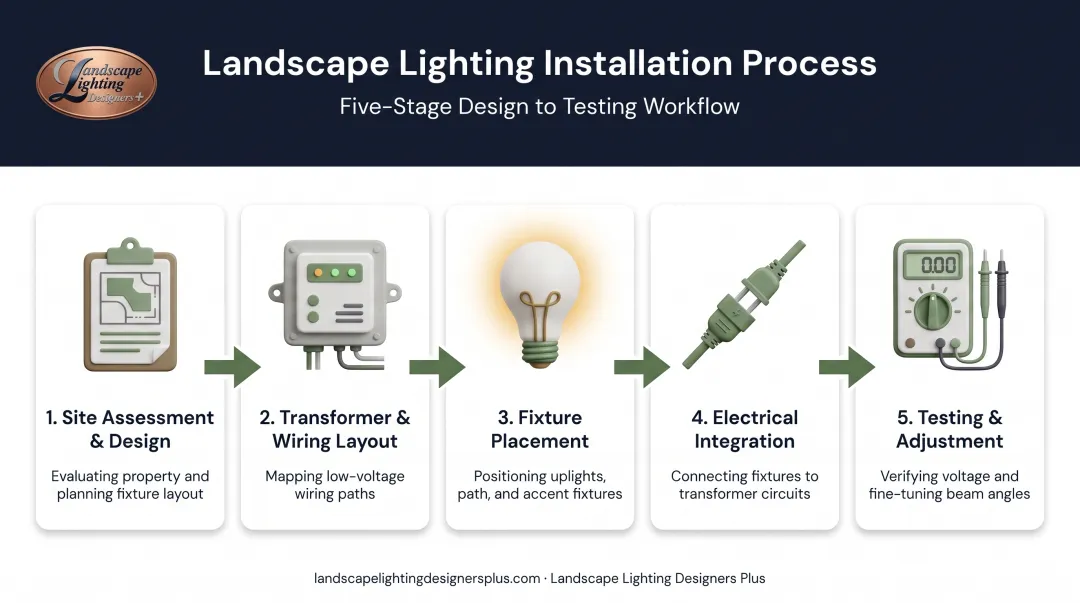

The process runs in a fixed order:
- Site assessment and design
- Transformer and wiring layout
- Fixture placement
- Electrical integration
- Testing and adjustment
Skip a step and something usually fails later — flickering fixtures, corroded splices, or a burned-out transformer.
Most residential projects take one to three days, depending on property size and landscape complexity. Larger properties with multiple zones, mature trees, or architectural accent lighting take longer than a simple pathway job.
Prerequisites and Safety Considerations
Before any cable goes in the ground, map the property:
- Trees, walkways, garden beds, and architectural features to highlight
- Existing irrigation lines (a common cause of later water intrusion)
- Outlet location for the transformer
Then check compatibility between transformer capacity, cable gauge, and total fixture wattage. Undersize any one of these and you'll get voltage drop or a tripped circuit.
Safety non-negotiables:
- Use UL-listed low-voltage components only (UL 1838 is the governing standard for landscape lighting systems)
- Bury cable at the depth your local NEC-adopted code requires (commonly 6 inches for standard runs, deeper under driveways)
- Confirm the outdoor outlet feeding your transformer is GFCI-protected
- Never install 120V fixtures outdoors without a licensed electrician
- Confirm transformer load calculations before any cable or fixture goes in
Tools and Parts Required
A basic parts list includes:
- Transformer (sized to total fixture load)
- Low-voltage direct-burial cable
- Waterproof gel-filled (silicone) wire connectors
- Fixtures: path, spot, and well lights
- Digital multimeter for voltage testing
- Burial tools (flat spade, trenching tool)
A multimeter isn't optional. Use it to confirm the first and last fixture receive proper voltage before you bury anything. Generic connectors are a common shortcut that shortens fixture life; direct-burial splices need waterproof gel-filled protection, not electrical tape.
How to Install Landscape Lighting (Step-by-Step)
Skipping steps — especially load calculation — is the number one cause of flickering and premature fixture failure. Follow this sequence:
- Prepare the site. Mark fixture locations from your design plan, then dig cable trenches to code depth.
- Position and secure fixtures. Set each fixture at the correct depth, angle, and distance from the feature it highlights.

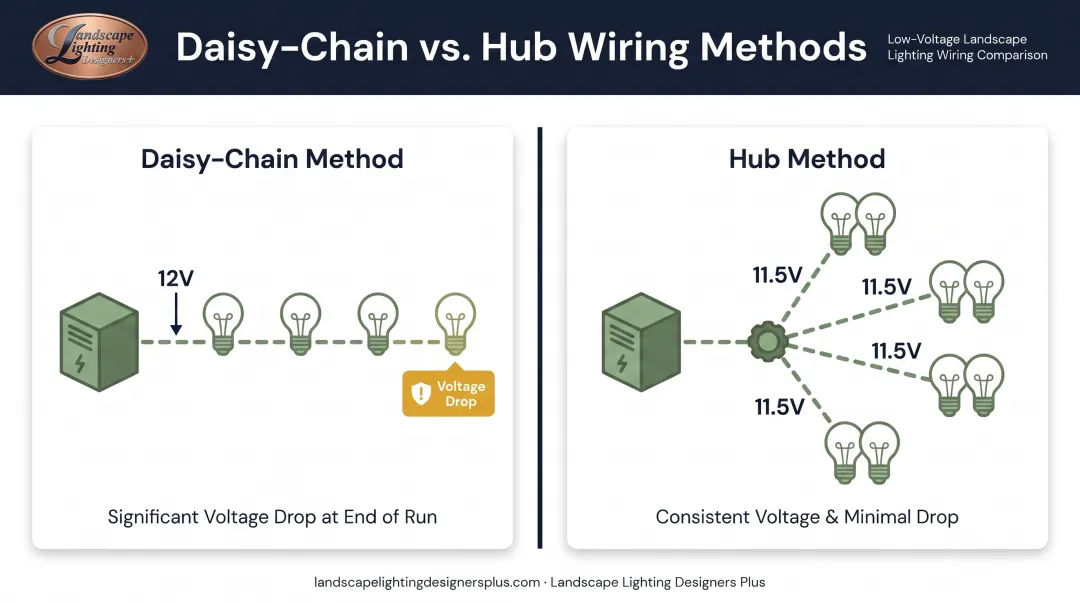

- Wire the run. Connect fixtures to the transformer using either a daisy-chain (fixture to fixture) or hub method (branch connections from a central point). Size cable to the run's total wattage and length to avoid voltage drop.
- Mount and calibrate the transformer. Set the correct tap, then program timers or smart controls.
- Test before burial. Confirm every fixture activates and check voltage at the run's farthest point.
Kichler's own load-sizing formula illustrates why this matters: voltage drop scales with both cable length and total connected load, not fixture count alone. A cable run overloaded past its rated wattage will dim the far end of the run regardless of how good the fixtures are.
Load sizing and wiring layout are also where design experience shows. At Landscape Lighting Designers Plus, Craig Collins personally designs and wires every low-voltage project across the DC metro area, with no subcontractors handing the job off mid-install.
Post-Installation Checks and Validation
Before covering any cable, check three things:
- Even light output across the run (no fixture noticeably dimmer than its neighbors)
- Spotlights aimed at the intended feature, not a neighbor's window
- No pinched or exposed wiring at any splice point

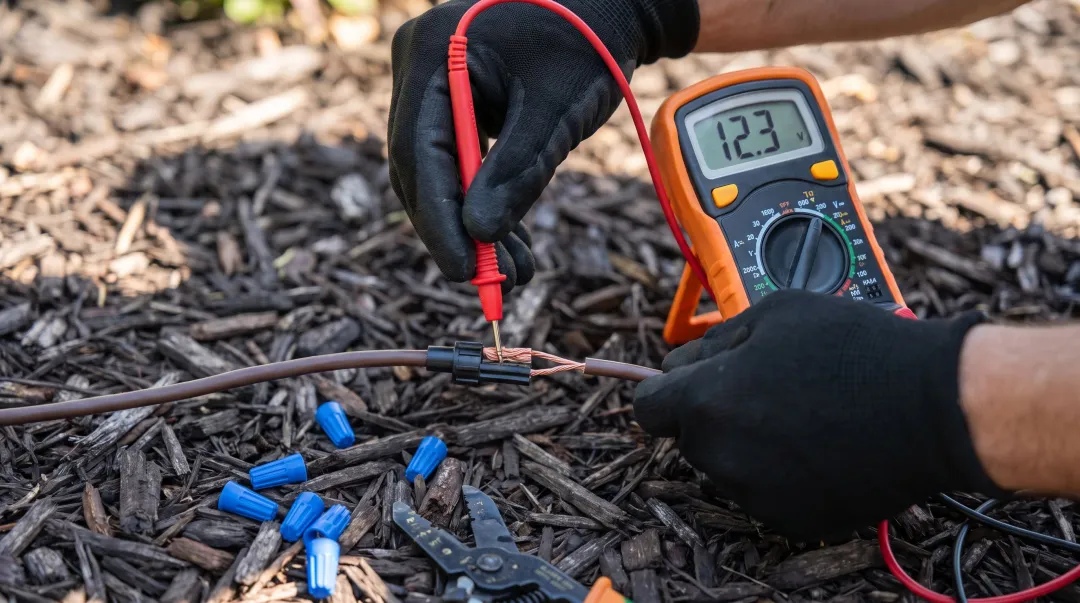

With the system on, measure voltage at the farthest fixture. Most manufacturers recommend keeping the differential between first and last fixture under 1V, with 0.5V optimal for LED systems.
Skip this check and problems show up later: corroded connections and fixtures that go dark months down the line almost always trace back to a validation step that never happened.
If you want to see how this reads once it is installed, our gallery of completed lighting projects shows the approach on real properties.

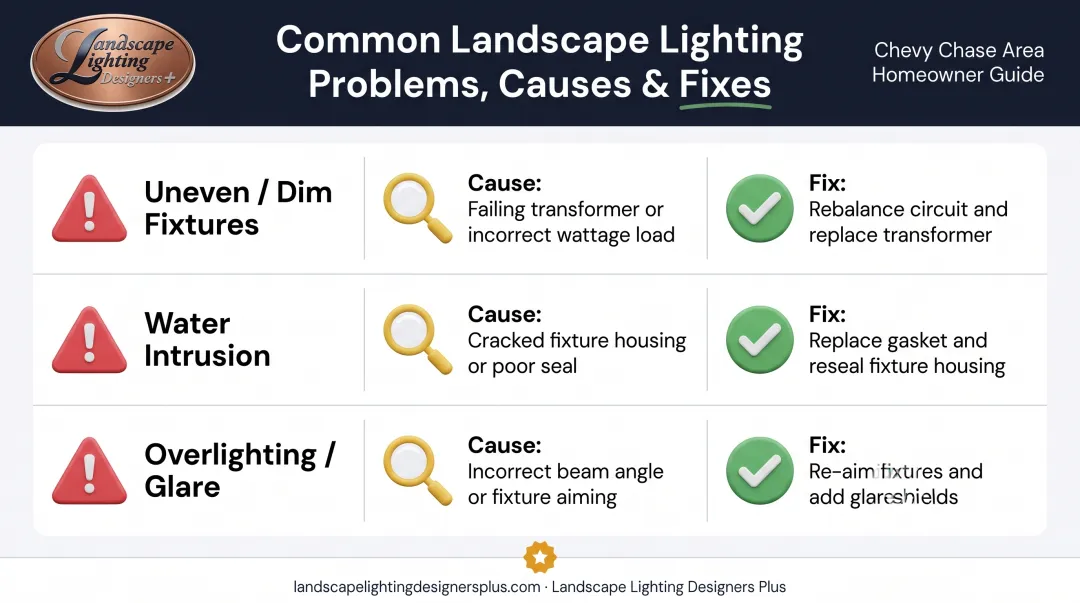

Common Installation Problems and Fixes
Even well-planned installations run into predictable issues. Here's what to watch for.
Uneven or Dim Fixtures
Problem: Fixtures farthest from the transformer look noticeably dimmer than those closest to it.
Cause: Voltage drop from undersized cable or too many fixtures on one run.
Fix: Recalculate cable gauge for the run's length and load, then split fixtures across multiple runs or add a hub configuration to shorten individual cable paths.
Water Intrusion in Connections
Problem: Fixtures flicker or fail entirely after a rainstorm.
Cause: Wire connectors not rated for direct burial. One documented residential case found that irrigation water repeatedly contacting connections degraded even wet-rated wire nuts over two years.
Fix: Use gel-filled, direct-burial-rated connectors at every splice — never tape alone.
Poor Aesthetic Results (Overlighting or Glare)
Problem: The property looks harsh, unbalanced, or overlit rather than warm and layered.
Cause: Fixtures selected or aimed without a design plan, often with wattage too high for the feature being lit.
Fix: Adjust beam angles, reduce wattage where needed, and work with a design-first specialist to correct the layout as a whole rather than tweaking one fixture at a time.
Pro Tips for Installing Landscape Lighting Effectively
A few habits separate lasting installations from ones that need constant fixing:
- Install lighting after major landscaping is finished — trenching a freshly planted bed risks damaging buried cable later
- Layer your light — path lights for safe movement, accent lights for features, uplighting for vertical depth; flat, uniform brightness looks institutional, not elegant
- Document fixture placement and wiring routes so future maintenance doesn’t mean guessing where cable runs
- Hire a specialist for historic or architecturally distinctive homes — fixture placement should respect original design lines, not fight them
That last point matters more than people expect. Craig Collins has spent 21 years on DC-area row houses and Federal-style townhomes. On a compact lot, a three-fixture pathway system can transform the property without a visible wire or a cornice line broken by an awkwardly aimed spotlight.
Conclusion
Installation quality directly affects safety, energy efficiency, and how long your lighting system lasts. Careful planning, correct wiring practices, and thorough voltage testing at every stage make the difference between a system that lasts years and one that starts failing within months.
If you'd rather skip the trial and error, schedule a complimentary design consultation with an experienced low-voltage specialist before you buy a single fixture.
And if you would rather judge the effect on your own property before committing, we can show you your home at night.
Frequently Asked Questions
How much does professional light installation cost?
Costs vary based on property size, fixture count, and design complexity — typical projects range from a few thousand dollars for a focused entry system to well over $10,000 for whole-property lighting. Request a free consultation for an accurate quote.
Who do I call for professional light installation?
A low-voltage landscape lighting specialist, not a general electrician, is best suited for design-focused outdoor installations. They combine electrical know-how with the design sense needed for balanced results.
Do I need an electrician for professional light installation?
Low-voltage systems typically don't require a licensed electrician. However, connecting the transformer to your home's main 120V power supply does, in most jurisdictions.
How long does a landscape lighting installation take?
Most residential projects take one to three days, depending on property size and design complexity.
Can I install landscape lighting myself?
DIY kits exist, but achieving balanced, professional-quality results usually requires design expertise plus accurate load calculations most homeowners skip.
How do I maintain landscape lighting after installation?
Periodically check fixture aiming, clean lenses, and test connections. Many providers offer ongoing maintenance support, including annual tune-ups and bulb replacement.
