How to Install a Low Voltage Landscape Lighting Transformer

Installing a low voltage landscape lighting transformer is a moderately complex project that most homeowners with basic electrical knowledge can tackle themselves—but it's far simpler and safer than working with 120-volt house wiring. The key difference: after you plug a pre-made transformer into an existing outdoor GFCI outlet, every wire you handle carries only 12-15 volts, reducing shock risk dramatically. Hardwiring a transformer directly to your home's electrical system, on the other hand, requires a licensed electrician and permits.

Who can realistically handle this? If you're comfortable using basic tools, following instructions carefully, and you already have a GFCI-protected outlet where you need it, you're probably capable. If the thought of working with electricity makes you nervous, or if you don't have the right outlet in place, hiring a professional is the smarter path.

Poor installation creates real problems: undersized transformers lead to dim lights or overheating, improper mounting invites water damage or tripped breakers, wrong wire gauge causes voltage drop across your system, and skipped GFCI protection creates serious safety hazards. This guide walks you through every step to avoid those mistakes.

Key Takeaways

• Plan on an existing GFCI outlet and a mounting spot at least 12 inches above ground
• Calculate total fixture wattage and add a 20% buffer to select the correct transformer size
• Match wire gauge to both run length and total wattage to prevent voltage drop and dim lights
• Make outdoor connections with brass connectors and heat-shrink tubing, not plastic wire nuts
• Test voltage with a meter after install so fixtures stay in the manufacturer's range

Prerequisites and Safety Considerations

Site Readiness Requirements

Before you order any parts, confirm you have a covered, weatherproof GFCI-protected outdoor outlet already installed. If you don't, stop—that's 120-volt work requiring a licensed electrician, permits, and inspection. According to the 2023 National Electrical Code (NEC), all outdoor outlets at dwellings must have GFCI protection to prevent shock hazards.

Your transformer must mount:

• At least 12 inches above ground to prevent water contact
• At least 10 feet from pools, spas, or fountains
• On a vertical surface (never lay it flat)
• Where the door can open fully for access

Avoid mounting directly to vinyl siding. Transformers generate heat and can warp the material.

Transformer Capacity Calculations

Here's the critical math:

1. Add up the wattage of every planned fixture (check fixture specifications—typical path lights draw 3-7W, spotlights 5-12W)
2. Multiply that total by 1.2 (adding a 20% buffer for future expansion)
3. Select a transformer rated at or above that number

Example: 20 fixtures at 5W each = 100W total × 1.2 = 120W minimum transformer size. Choose a 150W or 200W unit for comfortable headroom.

Manufacturer guidance recommends working capacity of approximately 70% of the transformer's rating after accounting for wire loss and heat. This isn't a universal NEC requirement, but it's solid planning for long-term reliability.

Wire Gauge Compatibility

Undersized wire causes voltage drop—your lights dim progressively the farther they sit from the transformer. Oversized wire costs more than necessary. Use this reference:

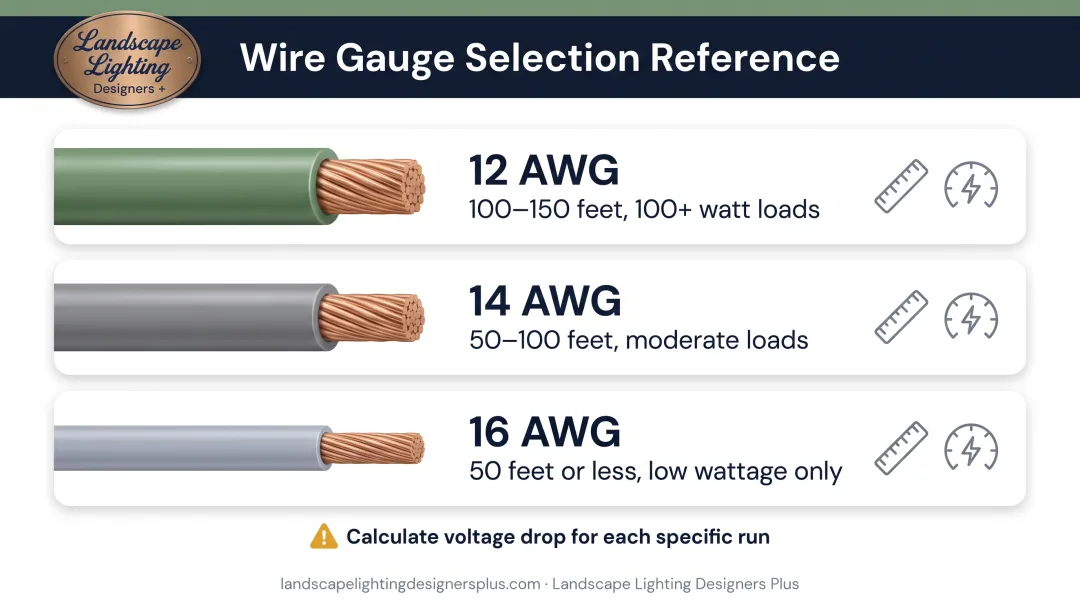

Wire Gauge Selection by Load and Distance:

• 12 AWG: 100-150 feet with 100+ watt loads
• 14 AWG: 50-100 feet with moderate loads
• 16 AWG: 50 feet or less, low wattage only

Your exact selection depends on total circuit wattage, cable length, and acceptable voltage drop. Professional installers calculate voltage drop for each run rather than relying on generic tables.

Safety Compliance Requirements

Non-negotiable rules:

• Plug directly into a GFCI outlet—never use an extension cord
• Mount transformer vertically only
• Use only UL/CSA approved low-voltage cable (12-16 AWG landscape wire)
• Never connect multiple transformers in parallel
• Ensure all components are listed for outdoor/wet locations

When NOT to Proceed

Stop and hire a professional if:

• No GFCI outlet exists where you need it
• Mounting location would be below 12 inches or too close to water features
• Total fixture wattage exceeds transformer capacity even after reducing the number of fixtures
• You feel uncomfortable working with any electrical connections

Landscape Lighting Designers Plus serves homeowners in the DC metro area and can consult on transformer sizing and placement, even if you plan to handle the installation yourself.

Tools and Parts Required

Essential Tools

• Flat-head screwdriver (standard and offset)
• Wire strippers with gauge markings
• Needle-nose pliers
• Allen key set (for brass connectors)
• Tape measure
• Level
• Marking pencil
• Drill with masonry bit (for brick/stone mounting)
• Heat gun or heavy-duty hair dryer (for heat-shrink tubing)

Essential Parts and Materials

• Plug-in low-voltage transformer (correctly sized)
• 0.5-inch PVC conduit (length depends on installation)
• Low-voltage landscape cable (correct gauge for your application)
• Brass barrel connectors (NOT plastic wire nuts—brass resists corrosion in wet environments)
• Adhesive-lined heat-shrink tubing
• Masonry anchors and screws (for mounting)

Critical material note: Skip plastic wire nuts outdoors. Use brass barrel connectors or tin-coated copper butt splices sealed with adhesive-lined heat-shrink tubing. The small upfront cost difference prevents years of moisture-related failures.

Optional But Recommended

• Colored electrical tape (for labeling multiple wire runs)
• Digital voltage meter (for testing output)
• Conduit fittings (if runs change direction)
• Weatherproof labels (for documenting circuits inside transformer cover)

How to Install a Low Voltage Landscape Lighting Transformer

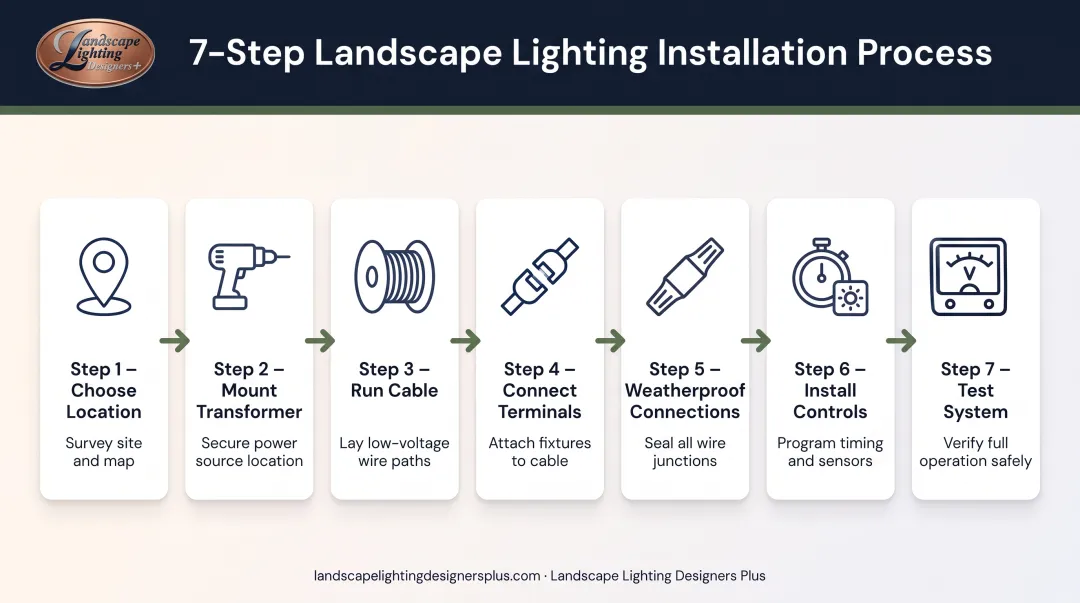

Proper installation follows a specific sequence: mounting → wiring → connection → testing. Rushing steps or taking shortcuts creates long-term reliability problems and safety risks.

Step 1: Choose and Mark the Mounting Location

Select a location that meets these requirements:

• Within reach of the GFCI outlet (don't exceed cord length)
• Protected from direct weather exposure when possible
• At least 12 inches above ground
• Easily accessible for future maintenance and adjustments
• Where the transformer door can open fully

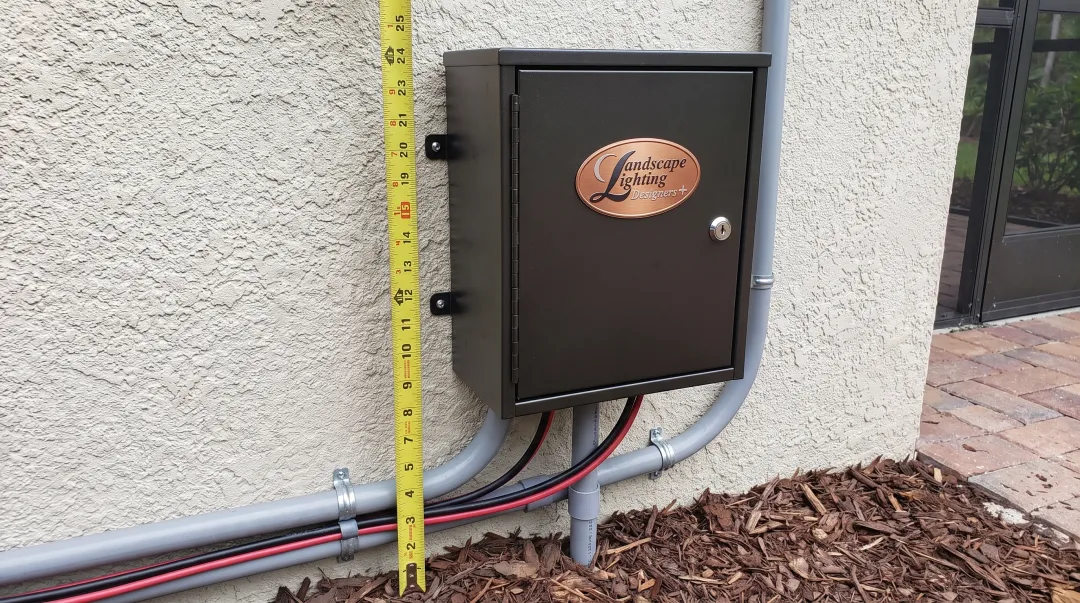

Hold the transformer against the mounting surface and use a level to ensure it's perfectly vertical. Mark the mounting holes with a pencil. Most transformers include a paper template. Tape it in position and mark through the template holes.

Step 2: Mount the Transformer Securely

For masonry surfaces (brick, stone, stucco):

1. Drill pilot holes using a masonry bit
2. Insert wall anchors
3. Install top mounting screws first, leaving a 1/8-inch gap
4. Hang the transformer on the top screws
5. Check level and mark bottom screw location
6. Slide transformer aside, drill bottom hole, install anchor
7. Secure both top and bottom screws fully

For wood surfaces: Drill pilot holes slightly smaller than the screw diameter, then drive the screws directly into solid wood. No anchors needed.

Verify the transformer is solidly mounted with no movement when you pull on it.

Step 3: Prepare and Run Low-Voltage Cable

1. Measure cable run from transformer through all planned fixture locations
2. Add 12 inches extra at each fixture location for adjustments
3. Cut cable to total length
4. Install PVC conduit from ground level up to the transformer knockout (prevents damage to exposed wire)
5. Remove the appropriate knockout from the transformer bottom (typically 0.5-inch) using a screwdriver edge and firm tap

If your transformer model requires a conduit adapter, follow the manufacturer's installation instructions.

Step 4: Connect Cable to Transformer Terminals

1. Split the paired wire down the middle to separate conductors for 2-3 inches
2. Strip 0.5 to 1 inch of insulation from each wire end
3. Loosen terminal screws inside the transformer
4. Insert one conductor into the COM (common) terminal
5. Insert the other conductor into your selected voltage tap
   • 12V tap for most applications
   • 13V or 14V tap only for long runs over 100 feet with high wattage
6. Tighten terminal screws firmly. Loose connections cause overheating and short circuits

Wire polarity note: Low-voltage landscape cable has no polarity in typical 12V AC systems—either conductor can go to either terminal.

Step 5: Make Weatherproof Connections to Fixtures

At each fixture location along your cable run:

1. Strip insulation from both the main cable and fixture wire (do not cut the main cable; splice into it)

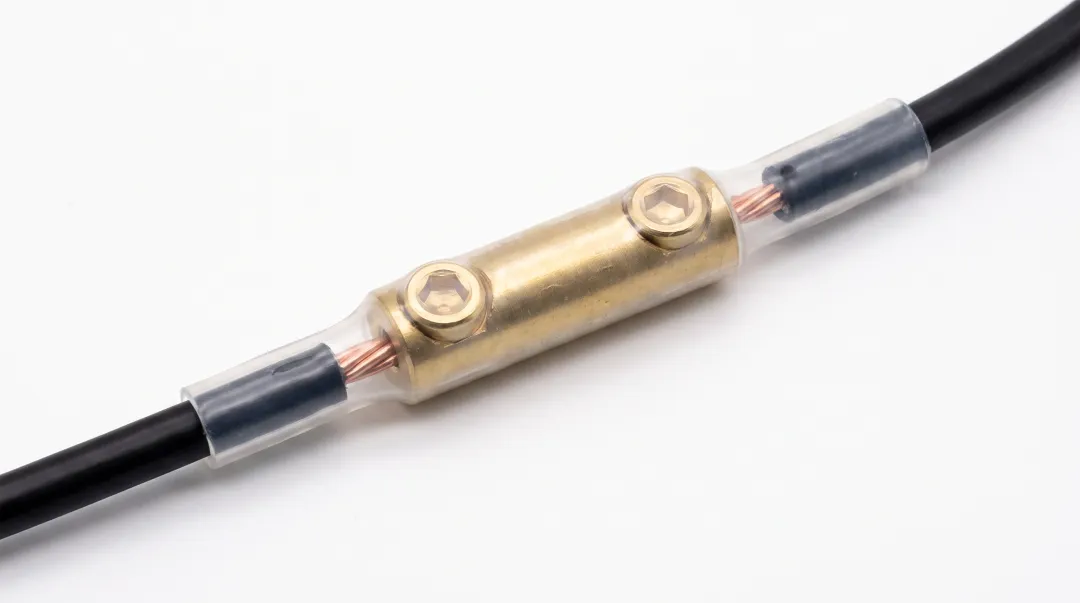

2. Insert both stripped ends into a brass barrel connector
3. Tighten the Allen screws to secure the connection
4. Slide adhesive-lined heat-shrink tubing over the entire connector
5. Apply heat from center outward until adhesive emerges from both ends. This creates a waterproof seal
6. Leave small wire loops near fixtures before burying (allows future adjustments)

Sealed connector systems listed under UL 486D are designed specifically for wet, damp, and direct-burial locations. Never use ordinary plastic wire nuts for underground connections.

Step 6: Install Control Devices and Plug In

1. If your transformer has timer or photocell receptacles, install your chosen control device per manufacturer instructions
   • Photocells activate automatically at dusk
   • Timers allow scheduled on/off operation
2. Close and latch the transformer door
3. Plug the transformer cord into the GFCI outlet
4. Verify the power indicator shows the transformer is receiving 120V power

Post-Installation Checks and Validation

Initial Power-On Testing

Before burying any cable:

• Flip the circuit breaker inside the transformer to ON
• Confirm all fixtures illuminate
• Check for flickering or unusually dim lights (indicates connection problems)
• Verify the transformer cooling fan operates if equipped
• Test control devices (timer/photocell) to confirm they function as expected

Voltage Verification at Fixtures

Use a digital voltage meter to test output:

1. Test fixtures nearest to the transformer
2. Test fixtures farthest from the transformer
3. Confirm readings fall within the fixture manufacturer's acceptable range, typically 10-12V for healthy systems
4. Compare near and far readings; a voltage drop over 1.5V points to undersized wire or too many fixtures
5. Document readings for future reference

Different fixture types have different requirements: LED fixtures typically operate across a wider 10-15V range, while older incandescent fixtures perform best at 10.5-11.5V.

Visual and Structural Inspection

Final checklist:

• Cover all wire connections with heat-shrink tubing
• Confirm the transformer mounting is secure with no movement
• Check that no wire is exposed where landscaping work could damage it
• Verify the GFCI outlet cover closes completely over the transformer plug
• Test the GFCI button: press TEST to cut power, then RESET to restore

Common Installation Problems and Fixes

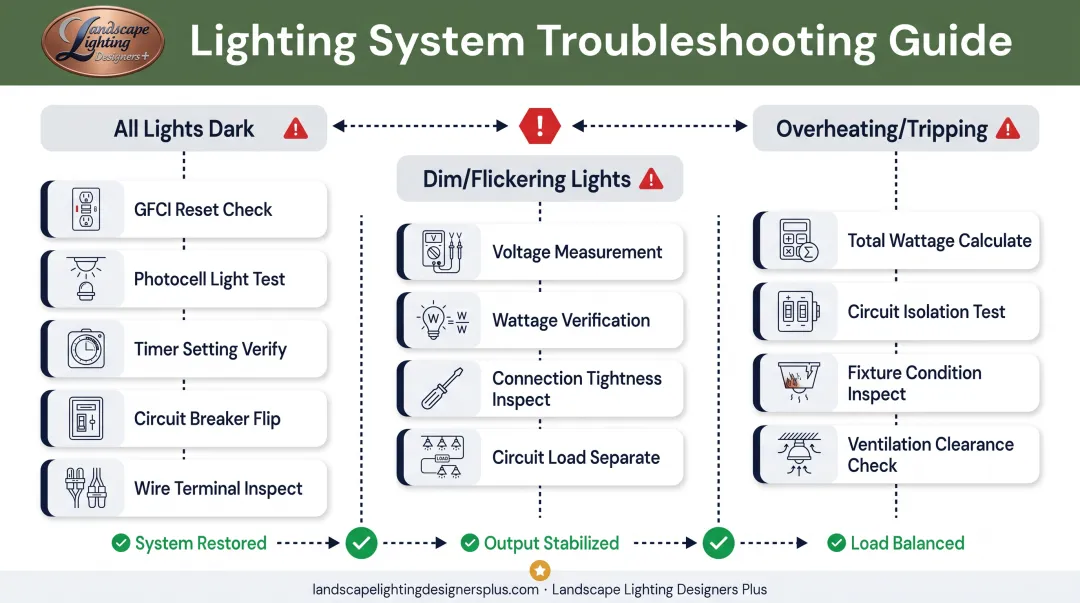

Most transformer issues show up as dark fixtures, uneven brightness, or a unit that keeps tripping. Work through the symptom that matches what you see—each path lists likely causes, then the fix order that usually clears it.

Lights Won't Turn On or All Fixtures Are Dark

Problem: Complete system failure: no lights work even though the transformer appears to have power.

Likely causes:

• GFCI outlet tripped
• Photocell preventing daytime operation
• Timer set to "off" period
• Circuit breaker toggle tripped inside transformer
• Failed connection at common terminal

How to fix:

1. Check the GFCI outlet and press RESET if it has tripped
2. Remove photocell temporarily or cover sensor and wait 3-5 minutes
3. Verify timer settings or remove timer and use jumper plug
4. Flip all circuit breaker toggles to the ON position
5. Re-check common terminal connection for loose wire

Some Fixtures Are Dim or Flickering While Others Work Fine

Problem: Inconsistent performance across fixture zones, usually affecting fixtures farthest from the transformer.

Likely causes:

• Excessive voltage drop from undersized wire gauge
• Too many fixtures on a single circuit
• Corroded connections creating resistance
• Mixed fixture types drawing uneven loads

How to fix:

1. Measure voltage at affected fixtures (below 10.8V indicates a problem)
2. Verify total wattage is under 70% of transformer capacity; redistribute fixtures if needed
3. Inspect and remake all connections with fresh brass connectors and heat-shrink tubing
4. Separate high-draw fixtures onto a dedicated circuit or tap

Transformer Overheating or Circuit Breaker Tripping Repeatedly

Problem: Transformer cabinet feels excessively hot, circuit breakers trip shortly after reset, or you notice a burning smell.

Likely causes:

• Total fixture wattage exceeds transformer rating
• Short circuit in buried cable from damage
• Defective fixture drawing excessive current
• Inadequate ventilation around transformer

How to fix:

1. Calculate actual connected wattage and remove fixtures to get under 70% capacity
2. Isolate problem circuit by disconnecting runs one at a time until breaker stops tripping
3. Inspect all fixtures for water intrusion or damage
4. Ensure transformer has 6+ inches clearance on all sides for cooling

Pro Tips for Installing a Transformer Effectively

Plan for System Expansion

Choose a transformer sized 30-40% larger than current needs, not just 20%. That headroom lets you add fixtures later without replacing the unit.

Build the same flexibility into the wiring:

• Run heavier gauge wire than the minimum on main cable runs (far easier than digging up buried wire later)
• Leave labeled spare capacity on terminals for new fixtures
• Document the layout with colored tape coding and notes inside the transformer cover

Prioritize Professional-Grade Connection Methods

Outdoor connections fail when moisture creeps in. Spend a little more on hardware that holds up:

• Brass barrel connectors last decades longer than plastic wire nuts outdoors
• Heat-shrink tubing stops most moisture-related failures
• Waterproof gel-filled connectors resist corrosion far better than standard nuts

The small upfront cost beats expensive troubleshooting later.

Know When to Hire a Landscape Lighting Specialist

Consider professional help if:

• You lack a GFCI outlet (requires licensed electrician for 120V work)
• Your design requires multiple transformers or zones for aesthetic lighting control
• You're unsure about proper fixture spacing and voltage for design effect
• You want a lighting system designed with artistic balance rather than just functional illumination

Landscape Lighting Designers Plus serves the DC metro area and can advise on transformer sizing and placement even when you plan to install the system yourself. With 21 years of specialized experience and a 4.8-star rating across 37+ verified reviews, they help get the design right before wire goes in the ground.

Call (888) 582-8845 for a complimentary consultation, whether you want guidance only or a full install.

Conclusion

How well you install the transformer shapes the reliability, safety, and performance of your whole landscape lighting system. Get these fundamentals right:

• Proper sizing to prevent overload failures
• Correct wire gauge to limit voltage drop
• GFCI protection to reduce shock hazards
• Weatherproof connections for long-term durability

Prepare before you start: calculate total wattage, choose the right wire gauge, and use quality materials. During the install, follow safety protocols, make secure connections, and test the system before you bury any cable.

If the layout, load math, or wiring feels beyond your comfort level, a low-voltage specialist can design and install the system for you. Solid planning and clean execution are what separate a system that merely works from one that looks great and lasts.

If pricing is the next question, our landscape lighting cost guide covers the usual ranges for work of this kind.

Frequently Asked Questions

Can a landscape lighting transformer be installed indoors?

Yes, in a garage or other protected space, but outdoor mounting is usually better. It shortens cable runs, improves ventilation, and keeps the system easier to service. Indoors, give the unit good airflow and place it as close as possible to where the cable exits to the fixtures.

Do LED landscape lights require a special transformer?

No. Standard 12V low-voltage transformers work with LED landscape lights. LEDs draw less wattage, so you can run more fixtures per unit, but they are more sensitive to voltage fluctuations, which makes correct wire gauge important for even brightness.

What size transformer do I need for my landscape lighting?

Add up fixture wattage (path lights are often 3–7W; spotlights 5–12W), multiply by 1.2 for a 20% buffer, and pick a transformer at or above that total. Example: 20 fixtures at 5W = 100W × 1.2 = 120W minimum, so a 150W or 200W unit leaves comfortable headroom.

How far can I run low voltage wire from a transformer?

It depends on wire gauge and load: 12 AWG often handles 100–150 feet with heavier loads, 14 AWG about 50–100 feet, and 16 AWG roughly 50 feet or less. Past those ranges, lights dim from voltage drop, so use heavier wire, fewer fixtures on long runs, or a second transformer for distant zones.

Where should I mount my landscape lighting transformer?

Mount it at least 12 inches above ground, within reach of a GFCI outlet (never an extension cord), and under an eave or overhang when you can. Keep it accessible for timers and service, somewhat hidden but not fully blocked, and central to your lighting zones to shorten wire runs.

Do I need a permit to install a low voltage landscape lighting transformer?

Usually no for a plug-in unit, since you are not modifying 120V wiring and low-voltage cable is often unregulated. Permit rules still vary by locality, and a new GFCI outlet or any 120V work needs a licensed electrician and may require a permit. Check your local authority and any HOA before you start.
